- XLT TOURING - 099ET6AS
BACKREST - 099ET6ASA (4948384838a007)

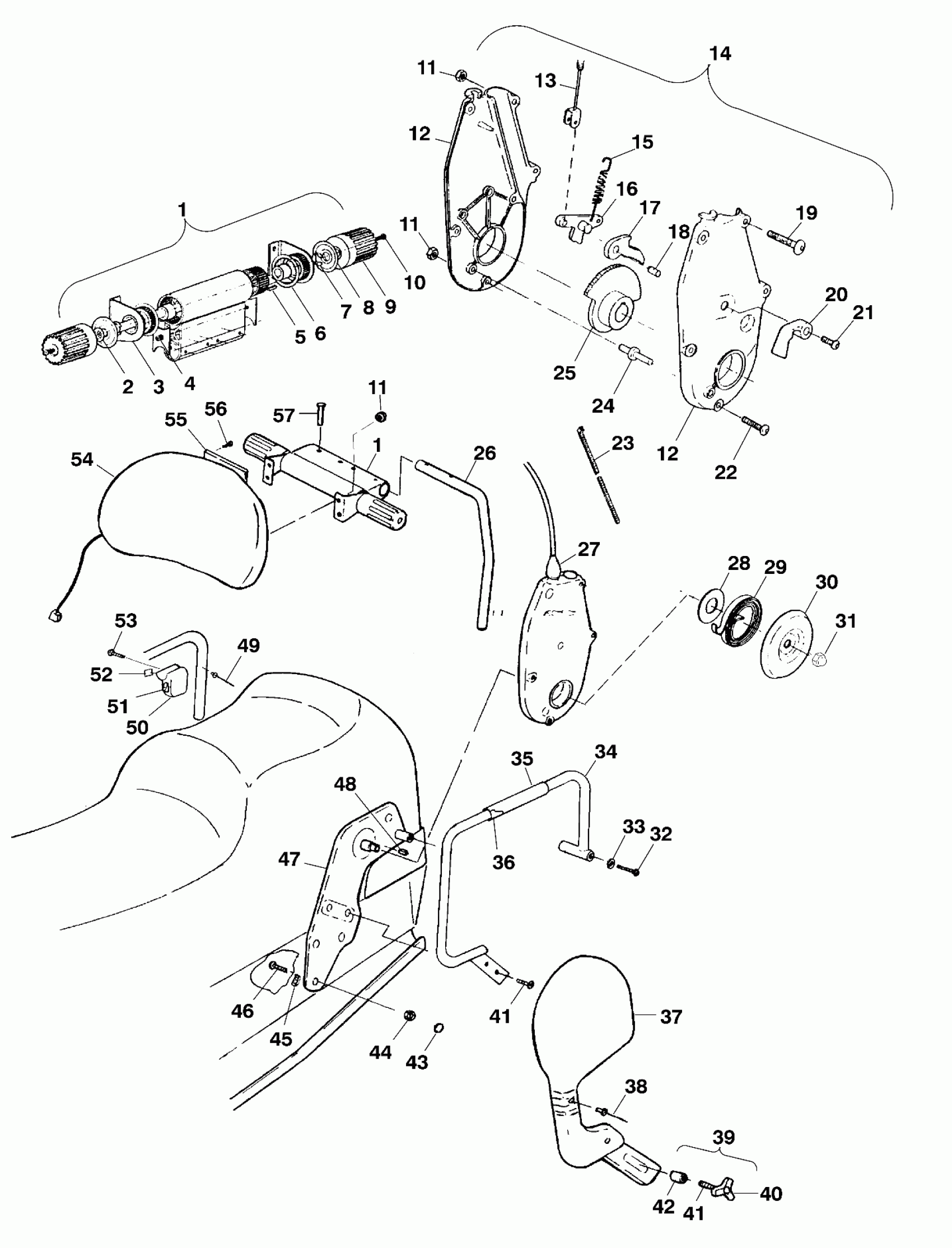

Polaris XLT TOURING - 099ET6AS BACKREST - 099ET6ASA (4948384838a007) Diagram
#
1
ADJ.ASM,B'REST CUSHION (Incl. 2-5,7,8,10)
1012534
Unavailable
1
ADJ.ASM,B'REST CUSHION (Incl. 2-5,7,8,10)
1012534
Unavailable
2
WASHER,WAVE(10)
7571635
$4.23
3
BRKT,MOUNTING
1012535
$37.11
4
SCREW(10)
7511866
$4.79
5
KEY,SQUARE(10)
7721118
$3.59
6
Rotor
5131207
$16.47
7
E RING(10)
7710901
$7.19
8
WASHER,(10)
7571634
$2.39
9
KNOB, ADJ.
5432112
Unavailable
10
SCREW,(10)
7512087
$1.83
11
NUT-LOCK(10)
7542122
$1.49
11
NUT-LOCK(10)
7542122
$1.49
11
NUT-LOCK(10)
7542122
$1.49
12
HSG,RH (ADJ.B'REST)
5131212
$62.39
12
HSG,LH,(ADJ. B'REST)
5131211
$62.39
12
HSG,RH (ADJ.B'REST)
5131212
$62.39
12
HSG,LH,(ADJ. B'REST)
5131211
$62.39
13
CABLE ASM,ACTUATOR
7080582
$87.19
14
ADJUSTER ASM,B'REST Substituted by 1013409 (Incl. 11-25)
1012536
Unavailable
15
SPRING,LOCKING
7041411
$25.59
16
PAWL ASM,LH,LOCK.,MASTER
1012320
$40.48
16
PAWL ASM,RH,LOCK,MASTER
1012321
Unavailable
17
SECTOR,ENGAGEMENT
5211610
Unavailable
18
PIN,PIVOT
5020806
Unavailable
19
BOLT ,(10)
7515171
Unavailable
20
LEVER,LOCKING.BLK. Substituted by 5631126-067
5630561-067
Unavailable
21
SCREW,(10)
7516915
$1.06
22
Bolt
7515170
$2.39
23
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
24
STUD-LIMITER
5020822
$66.39
25
GEAR,STATIONARY
1012537
Unavailable
26
TUBE,B'REST MT,BLK
5224761-067
$29.75
27
COVER,CABLE,BLK
5432259
Unavailable
28
WASHER,THRUST(10)
7555926
$1.99
29
SPRING,TORSION,PRELOAD
7041412
Unavailable
30
COVER,SPRING,1/2" ID,BLK
5241935-067
$4.95
31
NUT,(10)
7547015
$6.23
32
SCREW(10)
7512307
$3.99
33
WASHER(10)
7555734
$1.49
34
HANDLE,GRAB,LH,BLACK
1012657-067
$58.39
34
HANDLE,GRAB,RH,BLACK
1012658-067
$53.59
35
GRIP,HEATED PASS.
2460721
$113.99
36
TAPE,FOAM,.120X2.75X4,3M 4959
5811725
$14.79
37
DEFLECTOR,AIR,LH
5432078
$26.39
37
DEFLECTOR,AIR,RH
5432079
$27.19
38
RIVET,(50)
7621341
Unavailable
39
KNOB,GRAB HANDLE (Incl. 40-42)
1012385
Unavailable
40
Knob, Backrest
5630386-067
$20.22
41
BOLT(10) Substituted by 7515339
7515328
Unavailable
41
BOLT(10) Substituted by 7515339
7515328
Unavailable
42
SPACER,ADJ.KNOB
5432123
$5.83
43
CAPLUG, 3/4"(10)
7080592
Unavailable
44
NUT-5/16-18 NYLOK-Y
7542324
$1.49
45
PALNUT,(10)
7547030
$4.79
46
BOLT(10)
7512377
$4.79
47
MAINFRAME,LH,BLK
1012539-067
Unavailable
47
MAINFRAME,RH,BLK
1012540-067
Unavailable
48
KEY,HI PRO
7721125
$4.23
49
RIVET(50)
7621229
Unavailable
50
HOUSING-SWITCH
5432120
$22.23
51
HARNESS,PASS.GRP.HTR.SW.
2460537
$66.39
52
DECAL,HIGH/LOW/OFF
7075418
Unavailable
53
SCREW,TAPPING,(10)
7527815
$3.19
54
CUSHION,B'REST,W/LAMP (Incl. Cover)
2682308
Unavailable
54
COVER,B'REST,W/LAMP
2682309
Unavailable
55
BULB TAILLIGHT(10)
4030015
$4.03
55
TAILLIGHT ASM,B'REST
2432040
Unavailable
56
SCREW(10)
7512054
$2.39
57
RIVET,INTERLOCK,B(50)
7661638
$1.49
