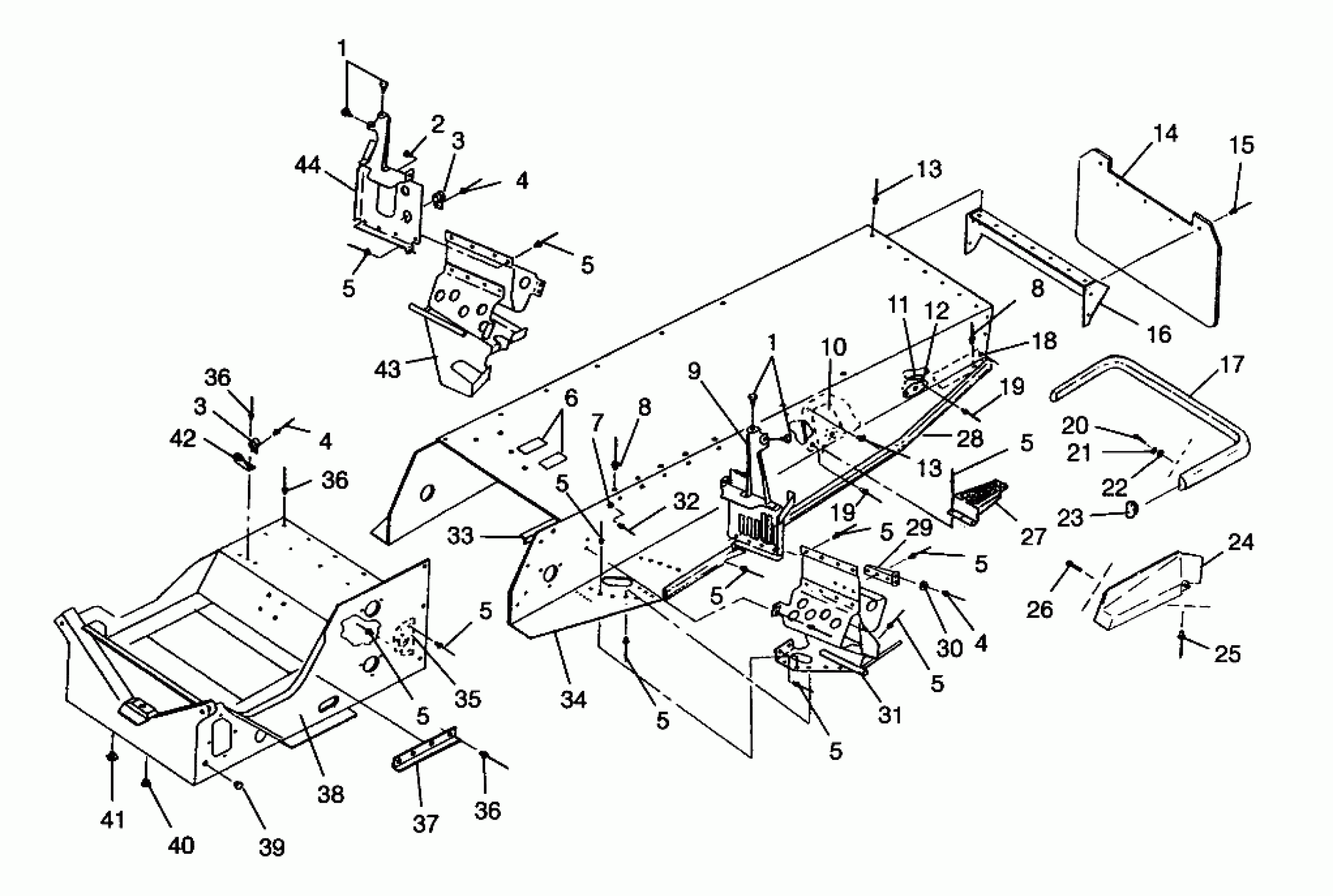

Polaris XLT TOURING - 0963357 TUNNEL XLT TOURING 0963357 and EUROPEAN XLT TOURING E963357 (4931923192A005) Diagram

#

Description
Price

1

BUMPER,HOOD

5410768

$2.95

1

BUMPER,HOOD

5410768

$2.95

2

SCREW(10)

7512057

$2.38

3

GUIDE, RECOIL

5431385

$10.51

3

GUIDE, RECOIL

5431385

$10.51

4

RIVET,3/16X.402(50)

7621432

$1.49

4

RIVET,3/16X.402(50)

7621432

$1.49

4

RIVET,3/16X.402(50)

7621432

$1.49

5

RIVET,INTERLOCK,B(50)

7661638

$1.49

5

RIVET,INTERLOCK,B(50)

7661638

$1.49

5

RIVET,INTERLOCK,B(50)

7661638

$1.49

5

RIVET,INTERLOCK,B(50)

7661638

$1.49

5

RIVET,INTERLOCK,B(50)

7661638

$1.49

5

RIVET,INTERLOCK,B(50)

7661638

$1.49

5

RIVET,INTERLOCK,B(50)

7661638

$1.49

5

RIVET,INTERLOCK,B(50)

7661638

$1.49

5

RIVET,INTERLOCK,B(50)

7661638

$1.49

5

RIVET,INTERLOCK,B(50)

7661638

$1.49

5

RIVET,INTERLOCK,B(50)

7661638

$1.49

5

RIVET,INTERLOCK,B(50)

7661638

$1.49

6

DECAL,TOP,TUNNEL STRIP

7073978

Unavailable

7

SNAP-MALE(10)

7080227

Unavailable

8

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

8

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

9

MT,CONSOLE,LH

1011951-067

$35.51

10

PAD,LH,RR SUSP,X12,BLK

1012439-067

$15.67

10

PAD,RH,RR SUSP,X12,BLK

1012440-067

$13.68

11

DESC NOT_AVAILABLE

5211590

Unavailable

12

DESC NOT_AVAILABLE

5211660

Unavailable

13

RIVET,SEMI-TUBE,(50)

7661841

$1.49

14

FLAP,SNOW,(XTRA-10) Substituted by 5432149-1106

5432149

Unavailable

15

POP RIVET(50)

7621418

$1.49

16

PANEL,R.CLOSEOFF

5240968-067

$36.31

17

BUMPER,REAR Substituted by 2670168-067

2670168

Unavailable

18

BRACE,LH,LOW.TUNNEL

5241485

$25.59

18

BRACE,RH,LOW.TUNNEL

5241486

$25.59

19

RIVET(50)

7661846

$1.99

19

RIVET(50)

7661846

$1.99

20

BOLT(10)

7512240

$3.99

21

LOCK WASHER(10)

7552801

$1.59

22

WASHER(10)

7558301

$1.49

23

CAP,BUMPER

5431995-070

Unavailable

24

SKIRT,SNO.TRNG,LH

5432131-070

$33.91

24

SKIRT,SNO.TRNG,RH

5432132-070

$30.95

25

RIVET(50)

7621472

$1.49

26

SCREW(10)

7512026

$1.49

27

FOOTREST,RH,W/SAFETY PAD Substituted by 1012543

1012443

Unavailable

27

PAD,LH,SAFETY Substituted by 5830114

5830054

Unavailable

27

PAD,RH,SAFETY Substituted by 5830114

5830055

Unavailable

27

FOOTREST,LH,W/SAFETY PAD Substituted by 1012542

1012442

$65.87

28

EDGE,LH,TUNNEL,BLK.

5333352-067

Unavailable

28

EDGE,RH,TUNNEL,BLK.

5333353-067

Unavailable

29

SUPPORT,BUMPERSIDE,BLK.

5240294-067

Unavailable

30

STOP, BUMPER

5410826

Unavailable

31

FOOTREST,LH,BLK.

1012346

Unavailable

32

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

33

BRACE,TUNNEL,EV,1 PC,X-12

5241011

Unavailable

34

TUNNEL ASM,W/ COOLER,TOUR (Incl. Heat Exchangers)

1012437

Unavailable

35

MOUNT,RH,F.SUSP.BLK.

1012270-067

$66.99

35

MOUNT,LH,F.SUSP.BLK.

1012269-067

$66.99

36

RIVET-3/16-.090-.290

7661637

$1.49

36

RIVET-3/16-.090-.290

7661637

$1.49

36

RIVET-3/16-.090-.290

7661637

$1.49

37

GUARD

5223789

Unavailable

38

BULKHEAD,W/O COOLER,(TRG)

1012438

Unavailable

39

PLUG, HOLE(10)

7080416

$5.65

40

PLUG-HOLE

7080398

$4.84

41

BUSHING,OPEN/CLOSE(10)

7080399

$2.39

42

BRKT,ROPE GUIDE,BLK.

5222687-067

$59.99

43

FOOTREST,RH,BLK.

1012347

Unavailable

44

MT,CONSOLE,RH

1011952-067

$339.99
