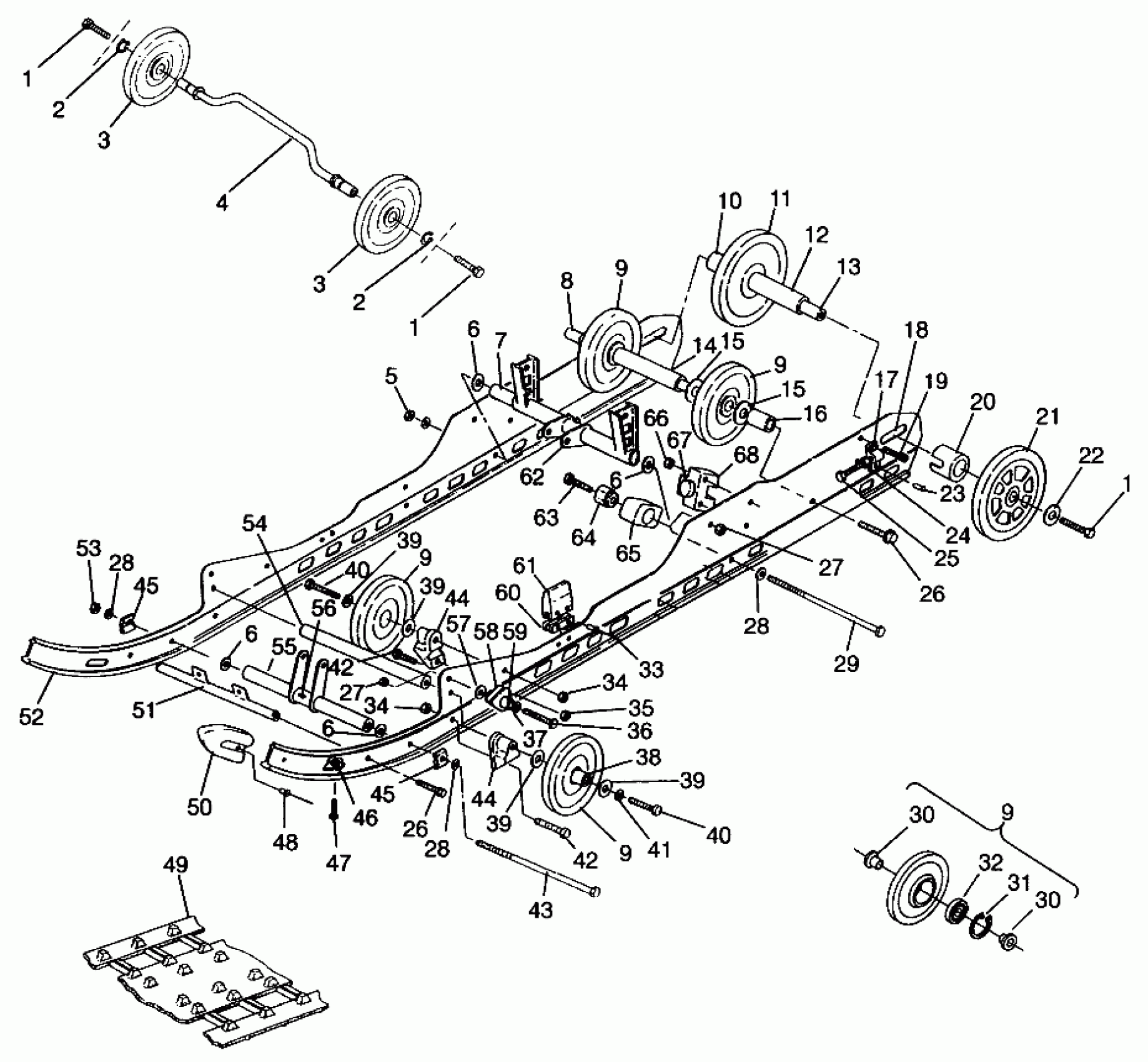

Polaris XLT TOURING - 0963357 SUSPENSION XLT TOURING 0963357 and EUROPEAN XLT TOURING E963357 (4931923192B011) Diagram

#

Description
Price

-

RAIL ASM,LH,(XTRA SKS) Substituted by 1541438 (Incl. 17, 48, 60, 61)

1540943

Unavailable

-

RAIL ASM,RH,(XTRA SKS) Substituted by 1541439 (Incl. 17, 48, 60, 61)

1540944

Unavailable

1

BOLT(10)

7515526

$1.19

1

BOLT(10)

7515526

$1.19

1

BOLT(10)

7515526

$1.19

2

RING,RETAINING(10)

7710439

$3.99

2

RING,RETAINING(10)

7710439

$3.99

3

Wheel, Bogie

1594067

$44.51

3

Wheel, Bogie

1594067

$44.51

4

TENSIONER,SHAFT,BLK.

1541025-067

Unavailable

5

NUT LOCK(10)

7542411

$3.19

6

WASHER(10)

7555893

$1.49

6

WASHER(10)

7555893

$1.49

6

WASHER(10)

7555893

$1.49

7

SHAFT

5333404

$24.27

8

SHAFT-PIVOT ARM Substituted by 5020724

5020415

$29.99

9

WHEEL, IDLER (Incl. 30-32)

1543018

$56.65

9

WHEEL, IDLER (Incl. 30-32)

1543018

$56.65

9

WHEEL, IDLER (Incl. 30-32)

1543018

$56.65

9

WHEEL, IDLER (Incl. 30-32)

1543018

$56.65

9

WHEEL, IDLER (Incl. 30-32)

1543018

$56.65

10

SPACER INNER IDLER

5010169

Unavailable

11

WHEEL, IDLER Substituted by 1594079-070 (Black)

1594021

Unavailable

12

SPACER,IDLER,R.INNER

5333086

Unavailable

13

SHAFT,IDLER

5020722

Unavailable

14

TUBE, SUSPENSION

5332783

Unavailable

15

MACHINERY BUSHING(10)

7556301

$3.19

15

MACHINERY BUSHING(10)

7556301

$3.19

16

SPACER, OUTER

5332784

Unavailable

17

BLOCK-IDLER BOLT ADJ.

5130530

$32.37

18

DECAL,"PAT.PENDING"

7074922

Unavailable

19

SCREW(10)

7515156

$3.99

20

SPACER-IDLER-OUTER

5332641

Unavailable

21

WHEEL,IDLER,LAV. (Lavender)

1594049

Unavailable

22

WASHER(10) Substituted by 7556130

7571629

Unavailable

23

RIVET,(50)

7621501

$2.39

24

NUT(10)

7542440

Unavailable

25

BOLT, ADJUSTER(10)

7515455

$29.99

26

BOLT

7515542

Unavailable

26

BOLT

7515542

Unavailable

27

NUT LOCK(10)

7542403

$3.99

27

NUT LOCK(10)

7542403

$3.99

28

WASHER(10) Substituted by 7555806

7555720

$0.79

28

WASHER(10) Substituted by 7555806

7555720

$0.79

28

WASHER(10) Substituted by 7555806

7555720

$0.79

29

SCREW Substituted by 7517353

7515549

Unavailable

30

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

30

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

31

RET.RING-TRUARC (1 per)

7718407

$4.79

32

BEARING (1 per)

3514303

$11.99

33

RIVET,(50)

7621488

$3.99

34

NUT, NYLOCK(10)

7542525

$4.79

34

NUT, NYLOCK(10)

7542525

$4.79

35

NUT-LOCK(10)

7542439

$1.49

36

BOLT(10)

7515538

$6.39

37

WASHER(10)

7555797

$3.99

38

SPACER, WHEEL

5333116

$7.99

39

WASHER, FLAT(10)

7555852

$2.39

39

WASHER, FLAT(10)

7555852

$2.39

39

WASHER, FLAT(10)

7555852

$2.39

39

WASHER, FLAT(10)

7555852

$2.39

40

BOLT(10)

7512538

$6.39

40

BOLT(10)

7512538

$6.39

41

WASHER LOCK(10)

7553101

$3.99

42

BOLT(10)

7512404

$3.99

42

BOLT(10)

7512404

$3.99

43

BOLT (11")

7515546

Unavailable

44

SPACER

5630399

$11.99

44

SPACER

5630399

$11.99

45

BOSS,BOLT HEAD

5131112

$19.99

45

BOSS,BOLT HEAD

5131112

$19.99

46

NUT-LOCK(10)

7542122

$1.49

47

BOLT(10)

7515175

$3.99

48

RIVET(50)

7621435

$1.49

49

Clip, Slide

5241473

Unavailable

49

Clip, Guide

5241474

Unavailable

49

TRACK-133X.82,LIGHTNING Substituted by 5411091

5411064

Unavailable

50

COVER, RAIL TIP Substituted by 5433005

5431421

Unavailable

51

SHAFT,LIMITER STRAP,BLK.

1012267-067

Unavailable

52

SLIDER,BLACK(2)

5521320

Unavailable

53

NUT FLEX LOC,(10)

7542402

$6.39

54

SHAFT,R.SHOCK BRKT.

5020649

Unavailable

55

ARM,SHOCK PIVOT

1540968-067

$49.59

56

ZERK,FITTING,THREADED(10)

7080433

$1.49

57

WASHER(10)

7555743

Unavailable

58

BLOCK,SPRING SLIDER

5431924

$10.65

59

Bushing

5010332

$11.99

60

BRKT,BUMPER SUPPORT

5240946

Unavailable

61

BUMPER,JOUNCE,RAIL,LT

5811065

Unavailable

62

ARM,R.PIVOT

1540971-067

Unavailable

63

BOLT(10)

7515537

$10.99

64

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

65

BUMPER,F.PIVOT ARM

5410925

$12.94

66

NUT, LOCK(10)

7542103

$5.59

67

BUMPER,R.PIVOT ARM

5410937

$5.75

68

BLOCK,R.PIVOT ARM STOP

5131111

Unavailable
