STEERING XLT TOURING 0963357 and EUROPEAN XLT TOURING E963357 (4931923192B005)

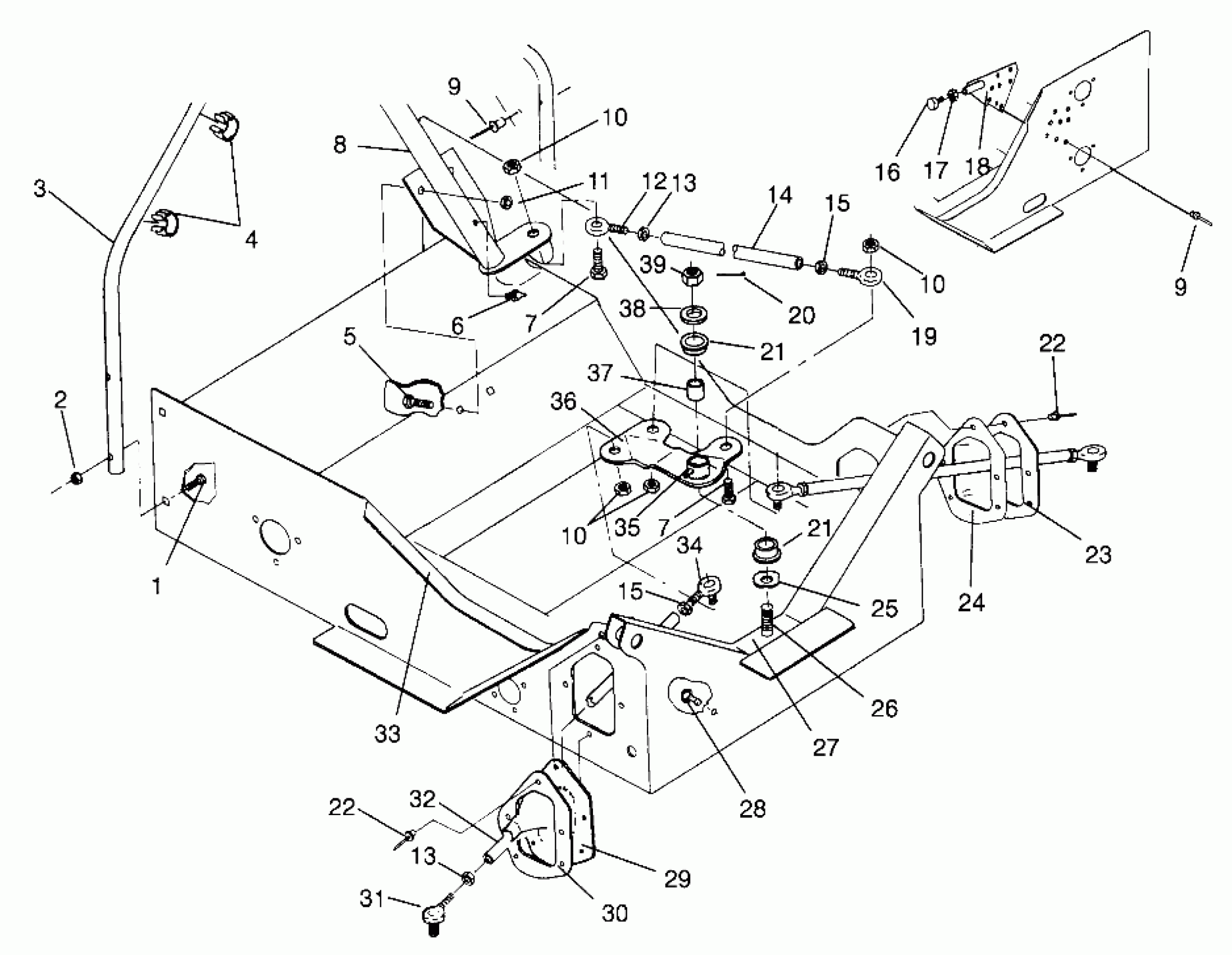

Polaris XLT TOURING - 0963357 STEERING XLT TOURING 0963357 and EUROPEAN XLT TOURING E963357 (4931923192B005) Diagram
#
1
BOLT-CARRIAGE(10)
7512275
$3.99
2
NUT, LOCK(10)
7542103
$5.59
3
HOOP,STEERING
1012335-067
Unavailable
4
CLIP(10)
7080278
$2.63
5
BOLT(10) Substituted by 7512377
7512394
Unavailable
6
FITTING,LUB/VEN(10)
7080561
$4.79
7
BOLT(10)
7512404
$3.99
7
BOLT(10)
7512404
$3.99
8
POST,STRG,BLK.
1822299-067
Unavailable
9
RIVET-3/16-.090-.290
7661637
$1.49
9
RIVET-3/16-.090-.290
7661637
$1.49
10
NUT LOCK(10)
7542403
$3.99
10
NUT LOCK(10)
7542403
$3.99
10
NUT LOCK(10)
7542403
$3.99
11
NUT-5/16-18 NYLOK-Y
7542324
$1.49
12
ROD END, LH.
7060164
$48.56
13
NUT
7542424
$1.49
13
NUT
7542424
$1.49
14
ROD-DRAG LINK
5332712
Unavailable
15
NUT HEX(10)
7542401
$2.39
15
NUT HEX(10)
7542401
$2.39
16
Mount, Rubber Stop, Torque (See Pg., Ref.)
-------
Unavailable
17
Nut, Jam (See Pg., Ref.)
-------
Unavailable
18
Weld., Torque Limiter (See Pg., Ref.)
-------
Unavailable
19
ROD END, RH.
7060165
$48.56
20
PIN COTTER(10)
7661203
$1.49
21
BUSHING
3563907
$3.99
21
BUSHING
3563907
$3.99
22
RIVET(50)
7621340
$0.56
22
RIVET(50)
7621340
$0.56
23
PLATE,BOOTSEAT,BLK.
5211454-067
Unavailable
24
BOOT,LH,TIE-ROD
5410867
Unavailable
25
WASHER,WAVE(10)
7555735
$3.99
26
BOLT(10)
7512682
Unavailable
27
BLOCK,STRG,(CAST)
5630563
$32.37
28
CLIP, PLASTIC(10)
4020139
$4.79
29
BOOT,RH,TIE-ROD
5410868
$12.70
30
PLATE,RH,BOOTSEAL,BLK.
5211453-067
$15.67
31
ROD-END,RH,3/8,HI-ANGLE
7060174
$48.56
32
TIEROD,BLK.
5020819-067
Unavailable
33
TRIM,EDGE,6FT,BLACK [No Longer Available]
5521131
Unavailable
34
ROD END,LH,3/8 HI-ANGLE PRO
7061005
Unavailable
35
ZERK,FITTING,THREADED(10)
7080433
$1.49
36
STEERING ASM,CTR. (Incl. 21, 35)
1822266
$38.49
37
BUSHING
5010340
Unavailable
38
WASHER(10)
7555721
$1.49
39
NUT FLEX,(10)
7542703
Unavailable
