Description

Price

1

CAP,FUELTANK,W/GASKET

2511226

Unavailable

2

GASKET, GAS CAP

5810513

$8.89

3

GROMMET,FUELTANK

5410842

Unavailable

4

CUSHION,SEAT(TRG,EVOL.)W/SENDER (Incl. 4-23, 27-30)

2681840

Unavailable

4

COVER,SEAT(TRG.)

2681863

Unavailable

5

BOLT (Euro)

7512395

Unavailable

6

LOCK WASHER(10) (Euro)

7552901

$1.49

7

RACK, REAR (Euro)

1012393-067

Unavailable

8

BOLT(10) (Euro)

7512249

Unavailable

9

WASHER(10) (Euro)

7558301

$1.49

10

NUT HEX-LOCK(10) (Euro)

7542101

$3.99

11

SUPPORT,REAR RACK (Euro)

1012392-067

Unavailable

12

LOCK WASHER(10) (Euro)

7552801

$1.59

13

SCREW(10) (Euro)

7515181

$2.39

14

REFLECTOR,CTR,SEAT

5432008

Unavailable

15

NUT(10)

7546908

$2.63

16

SCREW,SELF-TAP(10)

7522004

Unavailable

16

SCREW,SELF-TAP(10)

7522004

Unavailable

17

HOUSING,LH,LENS

5432002

Unavailable

17

HOUSING,RH,LENS

5432003

Unavailable

18

LENS,RH

5432032

$44.51

18

LENS,LH

5432031

Unavailable

19

Bulb, Brakelight

4030045

Unavailable

20

BULB, T/L.

4032084

Unavailable

21

SCREW(10)

7512054

$2.39

22

SCREW(10)

7511954

$1.19

23

NUT, WELL(10)

7541901

$6.39

24

SCREW(10)

7512242

$2.39

25

PICKUP,FUEL,W/STRAINER

7052081

Unavailable

26

RING, COMPRESSION(10)

7080402

$1.60

27

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

28

MTG.FLANGE,FUELTANK Substituted by 5244067

5211308

Unavailable

29

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

30

NUT(10)

7541925

$1.49

31

FITTING - OUTLET(10)

7052023

$24.99

32

CLAMP, HOSE

7080490

Unavailable

33

FUEL LINE, 5 FT.

8450045-153

Unavailable

34

FITTING,90 DEG,1/8,(10)

7052095

$4.79

35

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

36

CABLE,TANK,RETENTION

7080559

Unavailable

37

HDWE.PKG,SEND.UNIT

2410012

Unavailable

37

HDWE.PKG,SEND.UNIT

2410012

Unavailable

38

SENDER,FUEL-LEVEL,W/GASKET

3280227

Unavailable

39

HARNESS,T/L,(TOUR)

2460524

$58.39

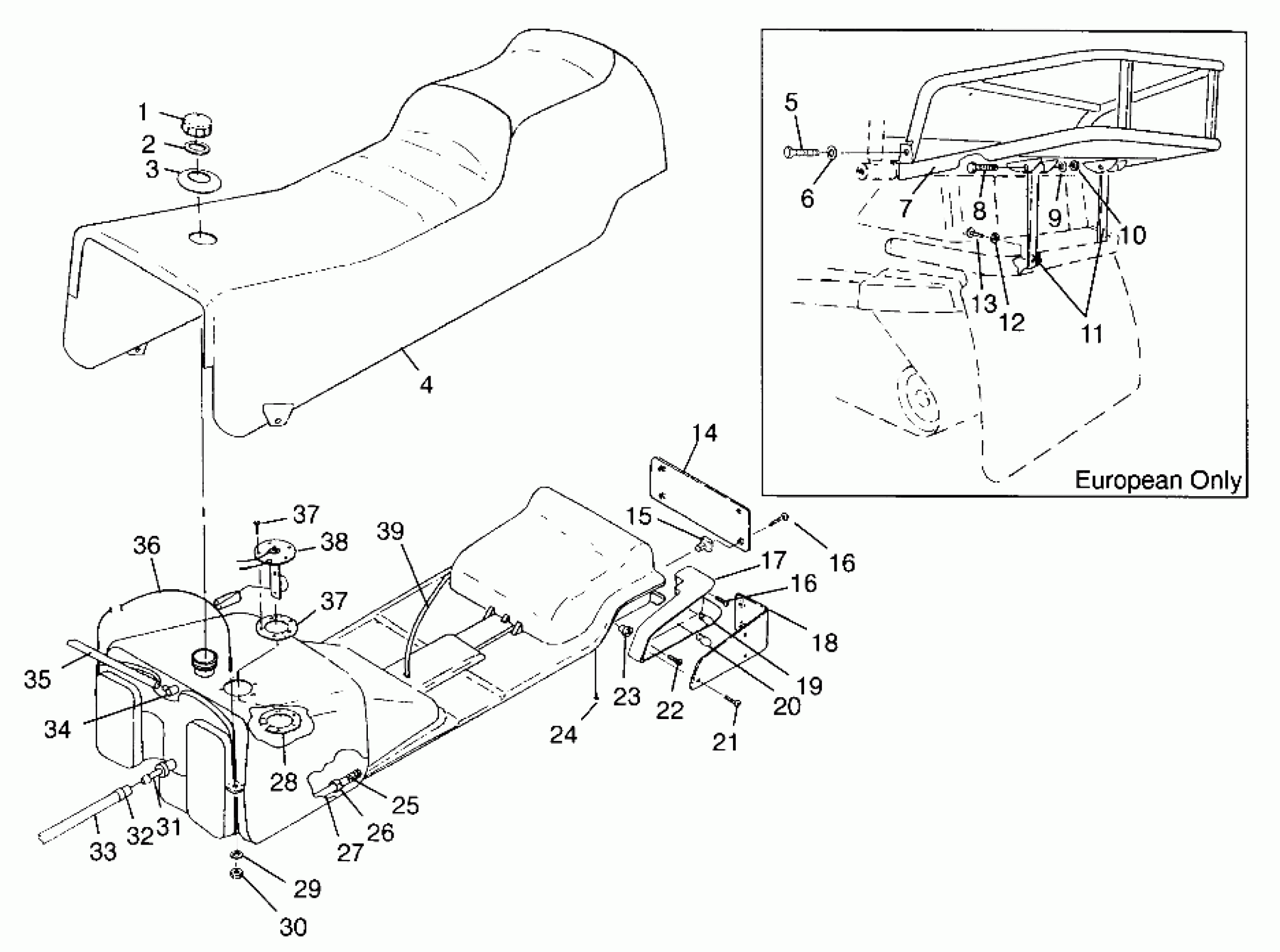

Polaris XLT TOURING - 0963357 SEAT and GAS TANK XLT TOURING 0963357 and EUROPEAN XLT TOURING E963357 (4931923192A009) Diagram

CAP,FUELTANK,W/GASKET

GASKET, GAS CAP

GROMMET,FUELTANK

CUSHION,SEAT(TRG,EVOL.)W/SENDER (Incl. 4-23, 27-30)

COVER,SEAT(TRG.)

BOLT (Euro)

LOCK WASHER(10) (Euro)

RACK, REAR (Euro)

BOLT(10) (Euro)

WASHER(10) (Euro)

NUT HEX-LOCK(10) (Euro)

SUPPORT,REAR RACK (Euro)

LOCK WASHER(10) (Euro)

SCREW(10) (Euro)

REFLECTOR,CTR,SEAT

NUT(10)

SCREW,SELF-TAP(10)

SCREW,SELF-TAP(10)

HOUSING,LH,LENS

HOUSING,RH,LENS

LENS,RH

LENS,LH

Bulb, Brakelight

BULB, T/L.

SCREW(10)

SCREW(10)

NUT, WELL(10)

SCREW(10)

PICKUP,FUEL,W/STRAINER

RING, COMPRESSION(10)

FUEL LINE,1/4 ID(1525 CM.)

MTG.FLANGE,FUELTANK Substituted by 5244067

WSHR-.194X.475X.049 ZTB

NUT(10)

FITTING - OUTLET(10)

CLAMP, HOSE

FUEL LINE, 5 FT.

FITTING,90 DEG,1/8,(10)

FUEL LINE,1/8 ID,600 CM.

CABLE,TANK,RETENTION

HDWE.PKG,SEND.UNIT

HDWE.PKG,SEND.UNIT

SENDER,FUEL-LEVEL,W/GASKET

HARNESS,T/L,(TOUR)
