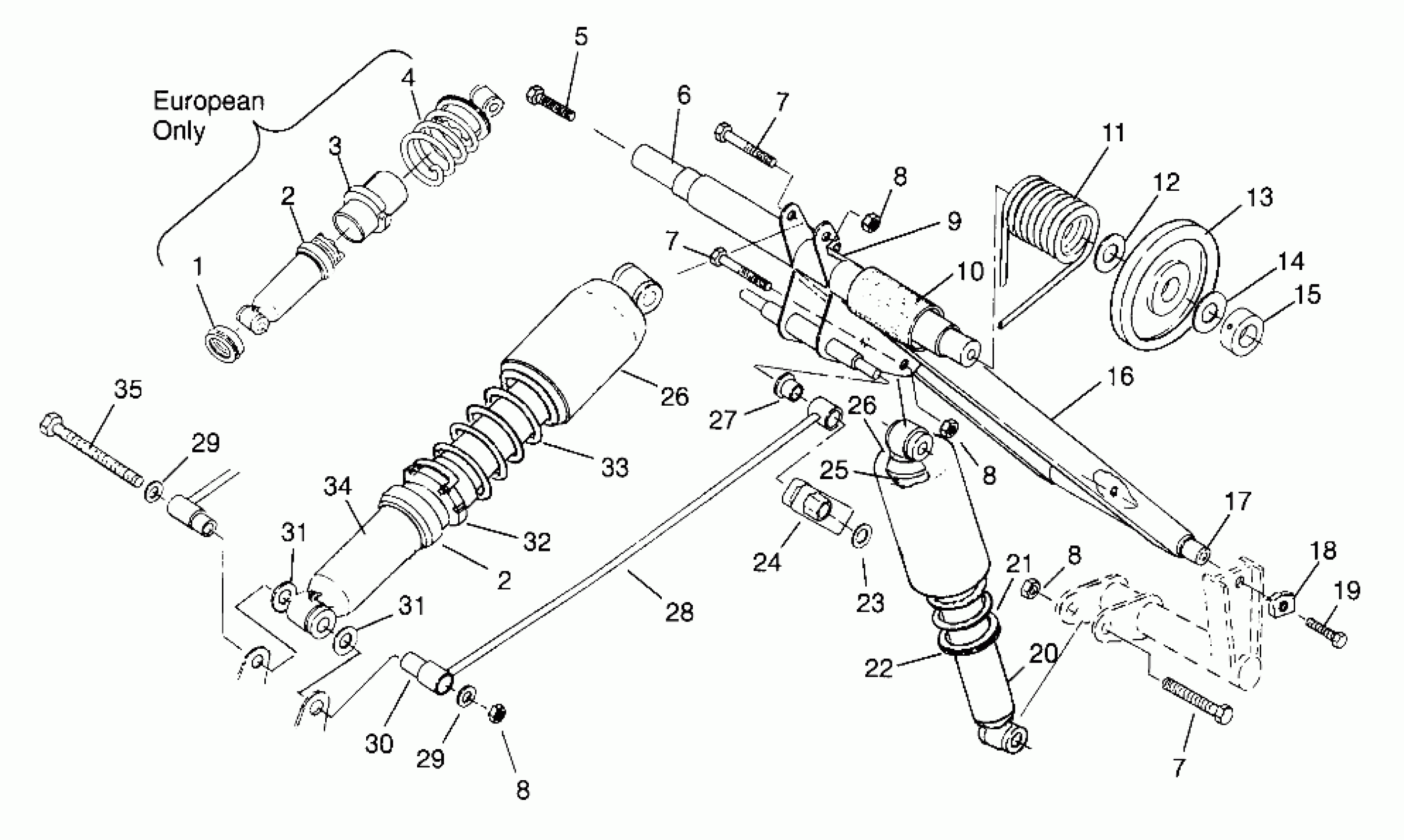

Polaris XLT TOURING - 0963357 REAR TORQUE ARM XLT TOURING 0963357 and EUROPEAN XLT TOURING E963357 (4931923192B014) Diagram

#

Description
Price

1

GUIDE,ADAPTER NUT (Euro)

5131276

Unavailable

2

RETAINER,SPRING,HVY BODY

1500091

$27.83

2

RETAINER,SPRING,HVY BODY

1500091

$27.83

3

ADAPTER,NUT,SPRING-RET. Substituted by 2871439 (Euro)

5131274

Unavailable

4

SPRING,COMP,190#,BLK (Euro)

7041491-067

Unavailable

5

BOLT(10)

7512587

$13.19

6

SHAFT,RTA,UPPER

5020814

Unavailable

7

BOLT Substituted by 7515491

7515433

$1.59

7

BOLT Substituted by 7515491

7515433

$1.59

7

BOLT Substituted by 7515491

7515433

$1.59

8

NUT LOCK(10)

7542411

$3.19

8

NUT LOCK(10)

7542411

$3.19

8

NUT LOCK(10)

7542411

$3.19

8

NUT LOCK(10)

7542411

$3.19

9

ZERK,FITTING,THREADED(10)

7080433

$1.49

10

SLEEVE,TORSION SPRING

5431923

$6.39

11

SPRING,LH,TORS,.437/77DG,BK (.437 Dia.)

7041487-067

$113.32

11

SPRING,RH,TORS,.437/77DG,BK (.437 Dia.)

7041488-067

Unavailable

12

WASHER, THRUST(10) Substituted by 7555871

7555787

Unavailable

13

Wheel, Carrier

1543023

Unavailable

14

WASHER, THRUST(10) Substituted by 7555871

7555862

$5.56

15

SCREW-SET(10)

7512257

$3.99

15

COLLAR-BRG. LOCK

5010155

Unavailable

16

ARM,RR TORQUE(XTRA 12),BLK

1541029-067

Unavailable

17

SHAFT,LOW,RR,TORQUE

5020843

Unavailable

18

LOCK,BOLT,MECHANICAL

5211649

Unavailable

19

BOLT(10)

7515526

$1.19

20

SHOCK,GAS,R.TRACK,ADJ

7041481

Unavailable

21

SPRING,COMPRESSION

7041484-067

$214.99

22

SPACER,SHOCK RETAINER(10)

5210953

$6.39

23

CLIP-PUSH ON

7080394

$2.39

24

ROLLER,SPRING,ADJ.

5431909

$5.75

25

RETAINER,SPRING,SLOTTED

5020618

$24.99

26

SHIELD,SPRING

5410874

$20.22

26

SHIELD,SPRING

5410874

$20.22

27

BUSHING, NYLON

3573910

Unavailable

28

ROD, SHOCK

1541014-067

$92.99

29

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

29

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

30

Spacer

5333028

$1.59

31

WASHER(10)

7555942

Unavailable

31

WASHER(10)

7555942

Unavailable

32

RING,SPRING PRELOAD ADJ.

5431734

$52.60

33

SPRING,.331 COMP(LT),BLK.

7041404-067

$144.99

34

SHOCK,F.TRACK,(FX/X),ADJ HVY B

7041486

$214.99

35

BOLT(10)

7515514

$7.19
