OIL TANK/AIR BOX XLT TOURING 0963357 and EUROPEAN XLT TOURING E963357 (4931923192C006)

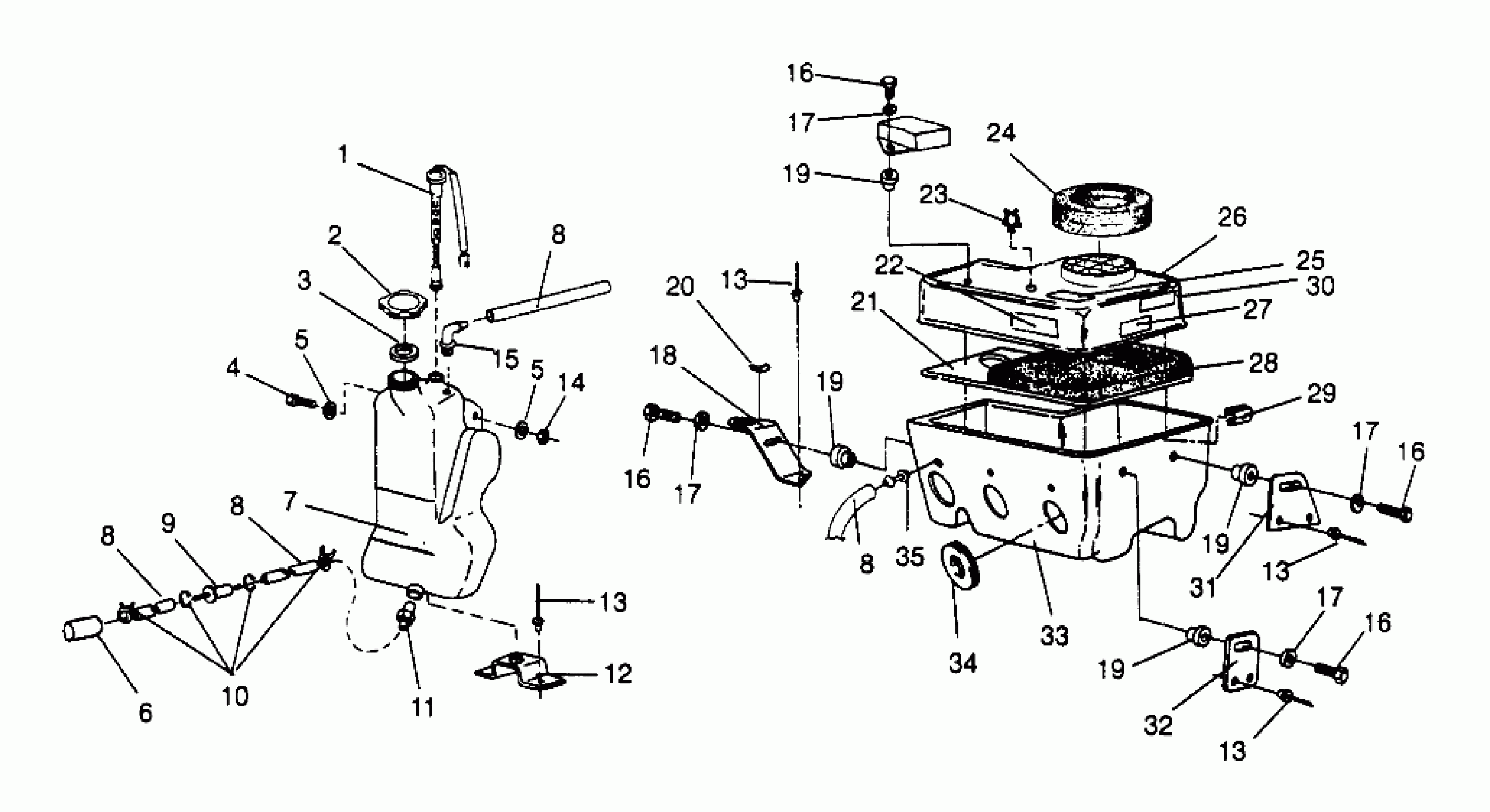

Polaris XLT TOURING - 0963357 OIL TANK/AIR BOX XLT TOURING 0963357 and EUROPEAN XLT TOURING E963357 (4931923192C006) Diagram
#
1
SENSOR,OIL LEVEL,W/CONN.
4040040
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
BOLT(10)
7512240
$3.99
5
WASHER,WROUGHT(10)
7558302
$1.59
5
WASHER,WROUGHT(10)
7558302
$1.59
6
CONDUIT,CONVOL(6 CM) Substituted by 4010051-15
4010051-06
Unavailable
7
Tank, Oil
5431437
Unavailable
8
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
8
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
8
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
8
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
9
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
10
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
11
FITTING, OUTLET
7052042
$8.99
12
BRKT,OILTANK,COINED
5241334
$9.70
13
RIVET-3/16-.090-.290
7661637
$1.49
13
RIVET-3/16-.090-.290
7661637
$1.49
13
RIVET-3/16-.090-.290
7661637
$1.49
13
RIVET-3/16-.090-.290
7661637
$1.49
14
NUT-LOCK(10)
7542122
$1.49
15
FITTING,90 DEG,1/8,(10)
7052095
$4.79
16
SCREW(10)
7512279
$1.49
16
SCREW(10)
7512279
$1.49
16
SCREW(10)
7512279
$1.49
16
SCREW(10)
7512279
$1.49
17
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
17
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
17
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
17
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
18
BRKT,AIR SILENCER,W/TAB,BLK.
5240824-067
Unavailable
19
NUT-WELL(10)
7541923
$5.59
19
NUT-WELL(10)
7541923
$5.59
19
NUT-WELL(10)
7541923
$5.59
19
NUT-WELL(10)
7541923
$5.59
20
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
21
PLATE, AIR SILENCER
5850102
Unavailable
22
DECAL,COOL.SYSTEM [No Longer Available]
7075359
Unavailable
23
CLAMP,WIRE ROUTING(10)
7080409
$2.39
24
DUCT ASM,AIR
2620057
$40.46
25
DECAL,CAUTION,AIRBOX
7075351
Unavailable
26
SILENCER.UP.AIR,DRILLED
5431879
Unavailable
27
DECAL, GREASING [No Longer Available]
7073426
$7.27
28
BAFFLE ASM.
1253124
Unavailable
29
CLIP, AIR BOX,(10)
7670055
$7.99
30
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
31
BRACKET, SILENCER
5211274
$9.70
32
BRKT,FRT.SILENCER
5211296-067
$4.38
33
SILENCER,INTAKE,DRILLED
5432136
Unavailable
34
BOOT,AIR SILENCER MOD.
5410793
Unavailable
35
FITTING,(10)
7052077
$6.39
