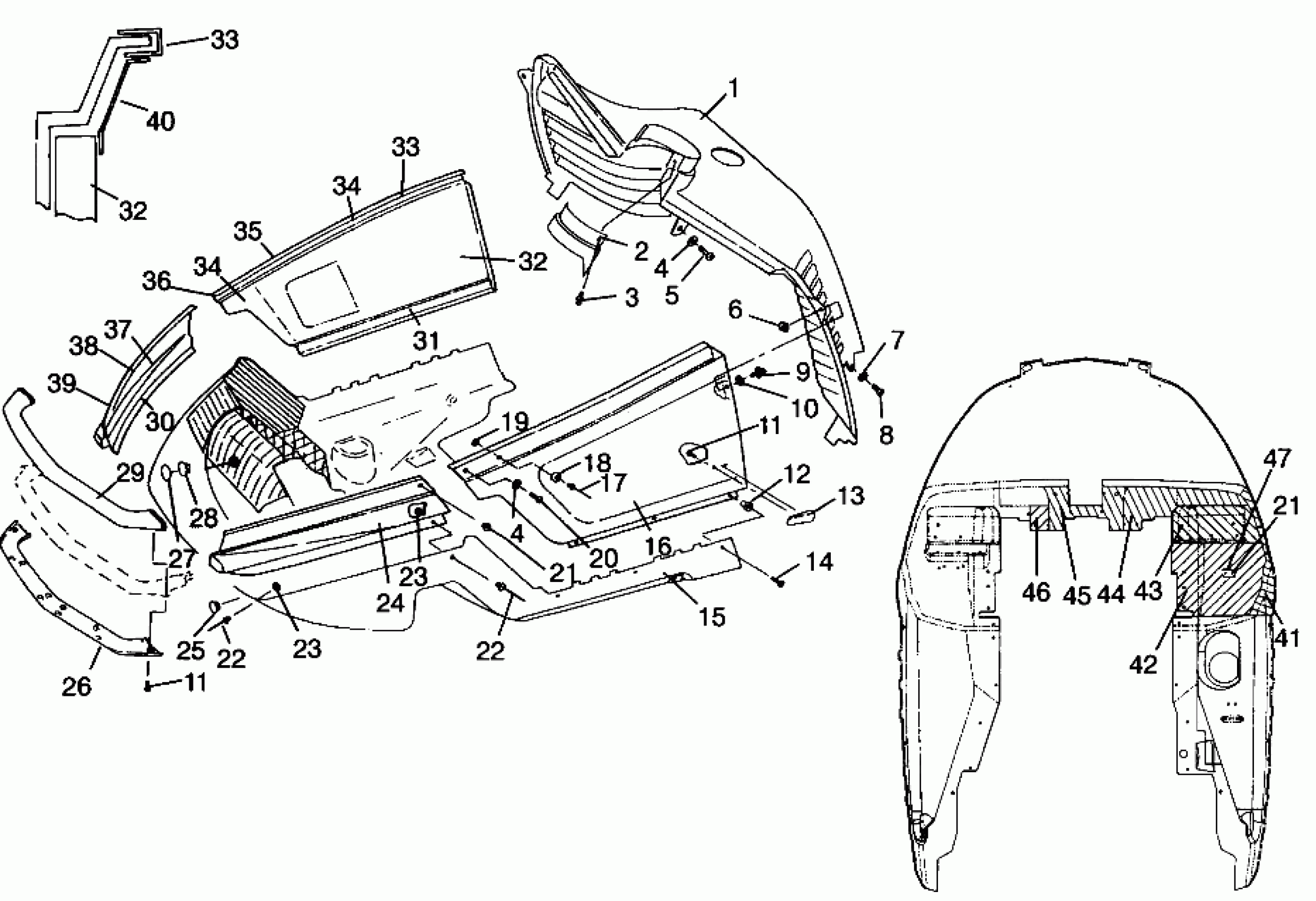

Polaris XLT TOURING - 0963357 NOSEPAN XLT TOURING 0963357 and EUROPEAN XLT TOURING E963357 (4931923192A011) Diagram

#

Description
Price

1

CONSOLE,EUROPE (Euro)

5431697

Unavailable

1

CONSOLE,BASIC

5431467

Unavailable

2

COVER,CONSOLE

5431535

$54.35

3

RIVET,PLASTI-LOC.(50)

7621509

$1.49

4

WASHER(10) Substituted by 7558301

7555776

Unavailable

4

WASHER(10) Substituted by 7558301

7555776

Unavailable

5

SCREW(10)

7512252

Unavailable

6

NUT,RETAINER(10)

7542138

Unavailable

7

WASHER(10)

7555792

$4.79

8

SCREW(10)

7512069

Unavailable

9

RETAINER,HOODLATCH

5431502

$12.94

10

WASHER,RUBBER(10)

7555884

$5.70

11

SCREW(10)

7512068

$2.39

11

SCREW(10)

7512068

$2.39

12

NUT-WELL(10)

7541923

$5.59

13

BUMPER,SIDE PANEL Substituted by 5432456

5431662

Unavailable

14

SCREW(10)

7512279

$1.49

15

NOSEPAN,(EV,600 E.S.),BLK

5432035

Unavailable

16

FOAM,LH,SIDEPANEL

5811076

Unavailable

16

PANEL,LH,SIDE,BLK.SAPHIRE

5431742-173

Unavailable

17

RIVET(50)

7621315

$3.99

18

BUMPER,RUBBER STOP Substituted by 5411440

5410843

Unavailable

19

RIVET BURR(50)

7555756

$2.99

20

SCREW(10)

7515148

$4.79

21

RIVET(50)

7621472

$1.49

21

RIVET(50)

7621472

$1.49

22

RIVET, BLIND(50)

7621467

$1.49

22

RIVET, BLIND(50)

7621467

$1.49

23

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

23

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

24

BUMPERSIDE,LH,BK.SAPH

5431492-173

Unavailable

25

PLUG,NOSEPAN HOLE

5410820

$15.99

26

COVER,F.BUMP.BOTTOM

5431481

Unavailable

28

PLUG,CATCH HOLE

5410582

$7.27

29

COVER,F.BUMP,BLK.SAPH,TOP

5431480-173

Unavailable

30

FOIL,SIDE BUMP,LOWER

5811085

Unavailable

31

TAPE,FOIL,100 CM. (Service), RH

8360044-100

Unavailable

32

FOAM-FOIL,RH,SIDEPANEL

5811070

Unavailable

32

FOAM-FOIL,RH,SIDEPANEL

5811070

Unavailable

33

FOIL,TOP,OUT.SIDEPANEL

5811075

Unavailable

33

FOIL,TOP,OUT.SIDEPANEL

5811075

Unavailable

34

FOIL,FR.SIDEPANEL

5811072

Unavailable

34

FOIL,FR.SIDEPANEL

5811072

Unavailable

35

PANEL,RH,SIDE,BLK.SPH. (Incl. 29-35)

2610008-173

$139.68

36

FOIL,TOP,INNER,SIDEPANEL

5811074

Unavailable

37

FOIL,SIDE BUMP,MIDDLE

5811086

Unavailable

38

FOIL,SIDE BUMP,UPPER

5811084

Unavailable

39

BUMPER,RH,SIDE/FOIL,BLK.SPH. (Incl. 28, 36, 37)

2610010-173

Unavailable

40

FOIL,UP.SIDEPANEL

5811073

Unavailable

41

FOIL,RH,PANSIDE,#16

5811195

Unavailable

42

FOIL,RH,SHOCK TOWER,LOW.

5811194

Unavailable

43

FOIL,RH,SHOCKTOWER,TOP,#14

5811193

Unavailable

44

FOIL,RH,SHOCKTOWER,#13

5811192

Unavailable

45

FOIL-CENTER, #11

5811187

Unavailable

46

FOIL,LH,SHOCKTOWER,#12

5811188

Unavailable

47

SHIELD, HEAT

5211601

Unavailable
