HOOD XLT TOURING 0963357 and EUROPEAN XLT TOURING E963357 (4931923192A013)

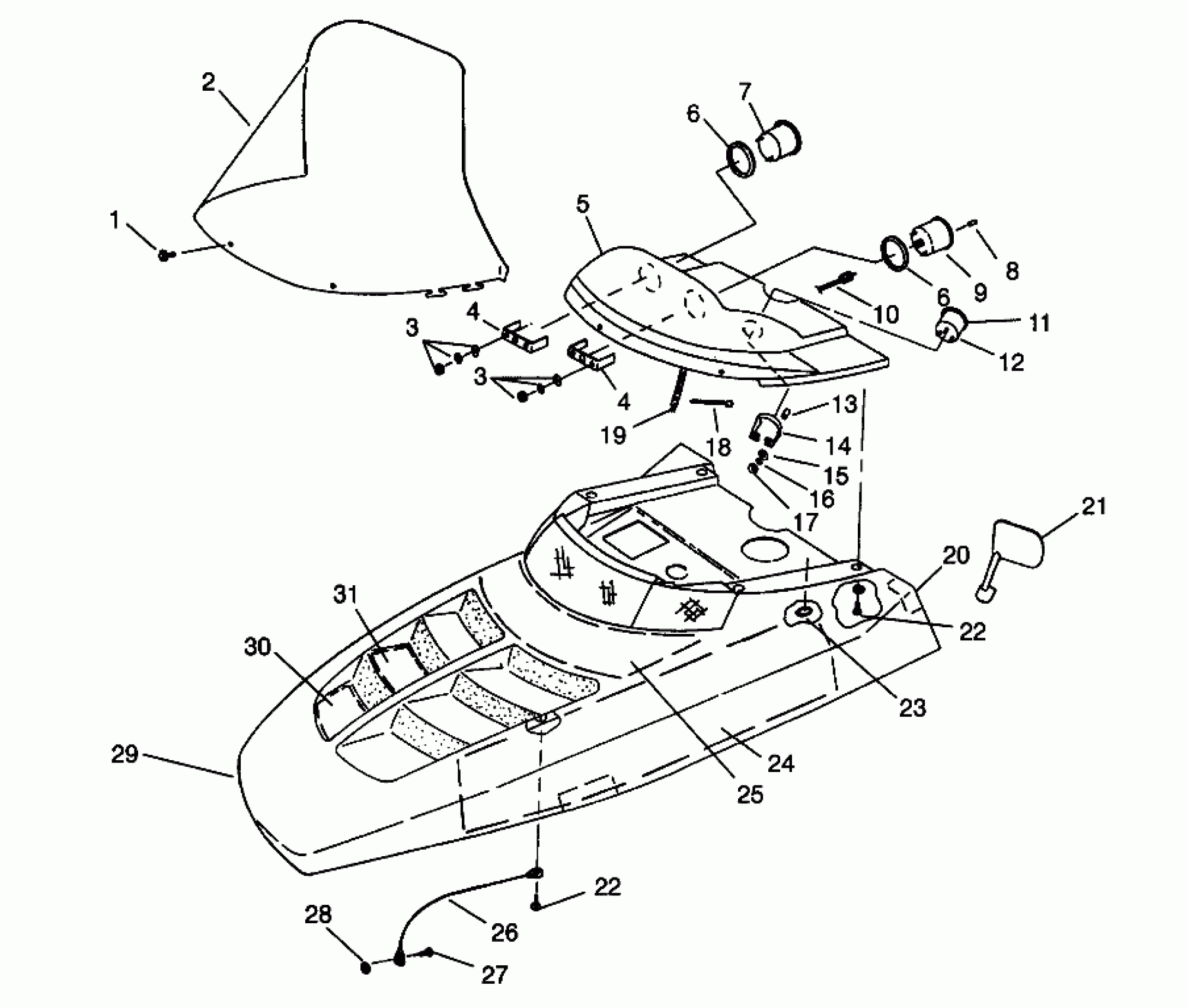

Polaris XLT TOURING - 0963357 HOOD XLT TOURING 0963357 and EUROPEAN XLT TOURING E963357 (4931923192A013) Diagram
#
1
RIVET,PLASTI-LOC.(50)
7621509
$1.49
2
WNDSHLD,HI CLEAR(TRL.DLX/XLT TOUR)
5431465
$159.99
3
WASHER,FLAT,(10)
3280157
$2.39
3
Nut
3280158
Unavailable
3
WASHER,SPLIT LOCK
3280156
$1.49
3
WASHER,FLAT,(10)
3280157
$2.39
3
Nut
3280158
Unavailable
3
WASHER,SPLIT LOCK
3280156
$1.49
4
BRKT,TACH/SPEEDO,5"
3280210
$28.32
4
BRKT,TACH/SPEEDO,5"
3280210
$28.32
5
HOUSING ASM,INST. (Incl. Warning Decals)
2652148
Unavailable
6
CUSHION,TACH/SPEEDO,RUBBER
3280209
$3.99
6
CUSHION,TACH/SPEEDO,RUBBER
3280209
$3.99
7
TACHOMETER,BACKLIT,(6P) (Incl. 3, 4, 6)
3280207
$168.73
8
KNOB,TRIP ODOMETER,LH THD.
3280186
$9.70
9
SPEEDO,190KPH,BACKLIT (Incl. 3, 4, 6, 8) (Euro)
3280190
Unavailable
9
SPEEDO,BACKLIT (Incl. 3, 4, 6, 8) (US)
3280204
Unavailable
10
CABLE,SPEEDO.
3280094
$60.70
11
CUSHION,FUELGAUGE,(2"),RUBBER
3280230
$3.41
12
FUELGAUGE,BACKLIT,2"
3280226
$96.97
13
SPACER,BRKT,(FUELGAUGE)
3280228
$2.81
14
BRACKET,FUELGAUGE,(2")
3280229
Unavailable
15
Washer
3280231
$0.24
16
WASHER,SPLITLOCK
3280233
Unavailable
17
Nut
3280232
$1.49
18
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
19
HARNESS, H/L
2460528
Unavailable
19
FUSE,(.2 AMP) Substituted by 4060139
4060134
Unavailable
20
FOIL,TAPE,1.5X6
5810949
$3.19
21
PR,MIRRORS,R.VIEW
2870938
Unavailable
22
SCREW(10)
7512070
Unavailable
22
SCREW(10)
7512070
Unavailable
23
RETAINER,WINDSHIELD,(10)
5410970
$1.49
24
FOAM,LH,HOOD
5810876
Unavailable
24
FOAM,RH,HOOD
5810877
Unavailable
24
FOIL,RH,HOOD
5810905
Unavailable
25
FOAM,HOOD,CTR.
5810875
Unavailable
26
CABLE,HOOD RETAINER
7080521
$24.27
27
SCREW(10)
7511930
$2.39
28
NUT FLEX LOC(10)
7541906
$3.19
29
HOOD,LIQ,FOAM/FOIL,BLK.SAPH. (Incl. 20, 24-25, 30, 31)
2631591-173
Unavailable
30
FOIL,HOOD,FRONT
5810874
Unavailable
31
FOIL,HOOD,CTR.
5810873
Unavailable
