FRONT SUSPENSION and SKI XLT TOURING 0963357 and EUROPEAN XLT TOURING E9633 (4931923192B002)

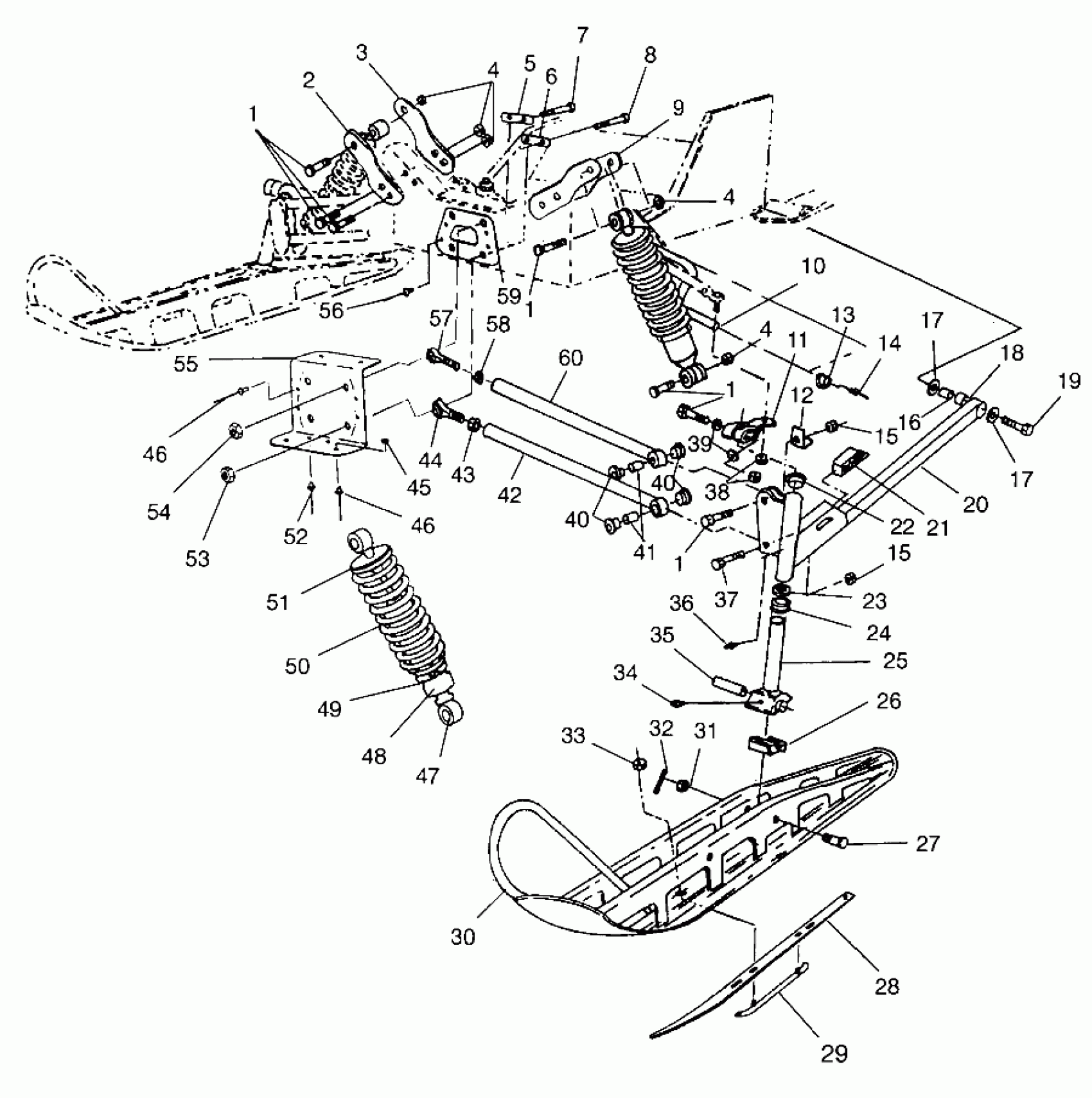

Polaris XLT TOURING - 0963357 FRONT SUSPENSION and SKI XLT TOURING 0963357 and EUROPEAN XLT TOURING E9633 (4931923192B002) Diagram
#
1
BOLT(10) Substituted by 7515415
7515515
Unavailable
1
BOLT(10) Substituted by 7515415
7515515
Unavailable
1
BOLT(10) Substituted by 7515415
7515515
Unavailable
1
BOLT(10) Substituted by 7515415
7515515
Unavailable
2
PLATE,SHOCK MT.EXT,BLK.
5211449-067
Unavailable
3
MT,RH,SHOCK EXT.BLK.
1012053-067
Unavailable
4
NUT, NYLOC(10)
7542453
Unavailable
4
NUT, NYLOC(10)
7542453
Unavailable
4
NUT, NYLOC(10)
7542453
Unavailable
5
STRAP,SPACER TOP
5211344
$7.27
6
STRAP,SPACER BOTTOM
5211345
$12.99
7
BOLT(10)
7512582
$8.79
8
BOLT(10)
7512684
Unavailable
9
MT,LH,SHOCK EXT.BLK.
1012052-067
Unavailable
10
BAR,SWAY,LT 5/8 FITTED
5224680-067
Unavailable
11
ARM,STEERING
5241314-067
Unavailable
12
STOP,LH,STEERING
5241207-067
Unavailable
12
STOP,RH,STEERING
5241208-067
Unavailable
13
BUSHING,SWAYBAR
5410386
Unavailable
14
RIVET(50) Substituted by 7661130
7661643
Unavailable
15
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
15
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
16
PIVOT,TRLG.ARM,RUBBER
5410872
$10.99
17
WASHER(10)
7555721
$1.49
17
WASHER(10)
7555721
$1.49
18
TUBE, BUSHING
5010310
$9.70
19
BOLT(10)
7512557
$7.60
20
ARM,TRLG,LH. (Incl. 16, 18)
1822281
Unavailable
20
ARM,TRLG,RH (Incl. 16, 18)
1822282
Unavailable
21
SLIDE,SWAYBAR,5/8",LT
5431736
Unavailable
22
BUSHING-FLANGE
3573909
$2.39
23
WASHER SPECIAL(10)
7556509
$1.59
24
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
25
SPINDLE, BLK.
6230073-067
Unavailable
26
STOP, RUBBER
5521276
Unavailable
27
BOLT(10)
7515462
$8.79
28
Plate, Skag
1011829-067
$54.99
29
SKAG, BLK.
1820318-067
$49.99
30
SKI WELD, BLK
1820332-067
Unavailable
31
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
32
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
33
NUT-5/16-18 NYLOK-Y
7542324
$1.49
34
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
35
BUSHING,PIVOT,(10)
5010158
$19.99
36
ZERK,FITTING,THREADED(10)
7080433
$1.49
37
BOLT(10) Substituted by 7517583
7515491
Unavailable
38
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
39
WASHER(10) Substituted by 7555832
7555851
Unavailable
40
BUSHING-RAD ROD PIVOT
5432074
Unavailable
40
BUSHING-RAD ROD PIVOT
5432074
Unavailable
41
BUSHING,RAD.ROD,UPP/LOWER
5010356
Unavailable
42
ROD,RAD.LOW,BLK.
1822293-067
Unavailable
43
NUT-JAM(10)
7542711
$2.39
44
ROD END Substituted by 7061027
7060162
$48.56
45
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
46
RIVET, BLIND(50)
7621467
$1.49
46
RIVET, BLIND(50)
7621467
$1.49
47
SHOCK,GAS,IFS,IFP,CAM
7041427
Unavailable
48
RING,SPRING PRELOAD ADJ.
5431734
$52.60
49
RETAINER,SPRING,BODY,THREADED
1500063
$44.51
50
SPRING,COMP,.BLK.
7041396-067
Unavailable
51
RETAINER,SPRING,SLOTTED
5020618
$24.99
52
RIVET,3/16X.402(50)
7621432
$1.49
53
NUT FLEX,(10)
7542703
Unavailable
54
NUT, LOCK,(10)
7542503
$10.39
55
BRKT,PANSUPPORT,BLK.
5222866-067
Unavailable
56
RIVET-3/16-.090-.290
7661637
$1.49
57
ROD END
7060163
Unavailable
58
NUT JAM(10)
7542520
$2.39
59
BRACE,BLKHD/STRG,BLK.
5211589-067
Unavailable
60
ROD,RAD.UP,BLK.
1822295-067
Unavailable
