COOLING SYSTEM XLT TOURING 0963357 and EUROPEAN XLT TOURING E963357 (4931923192B008)

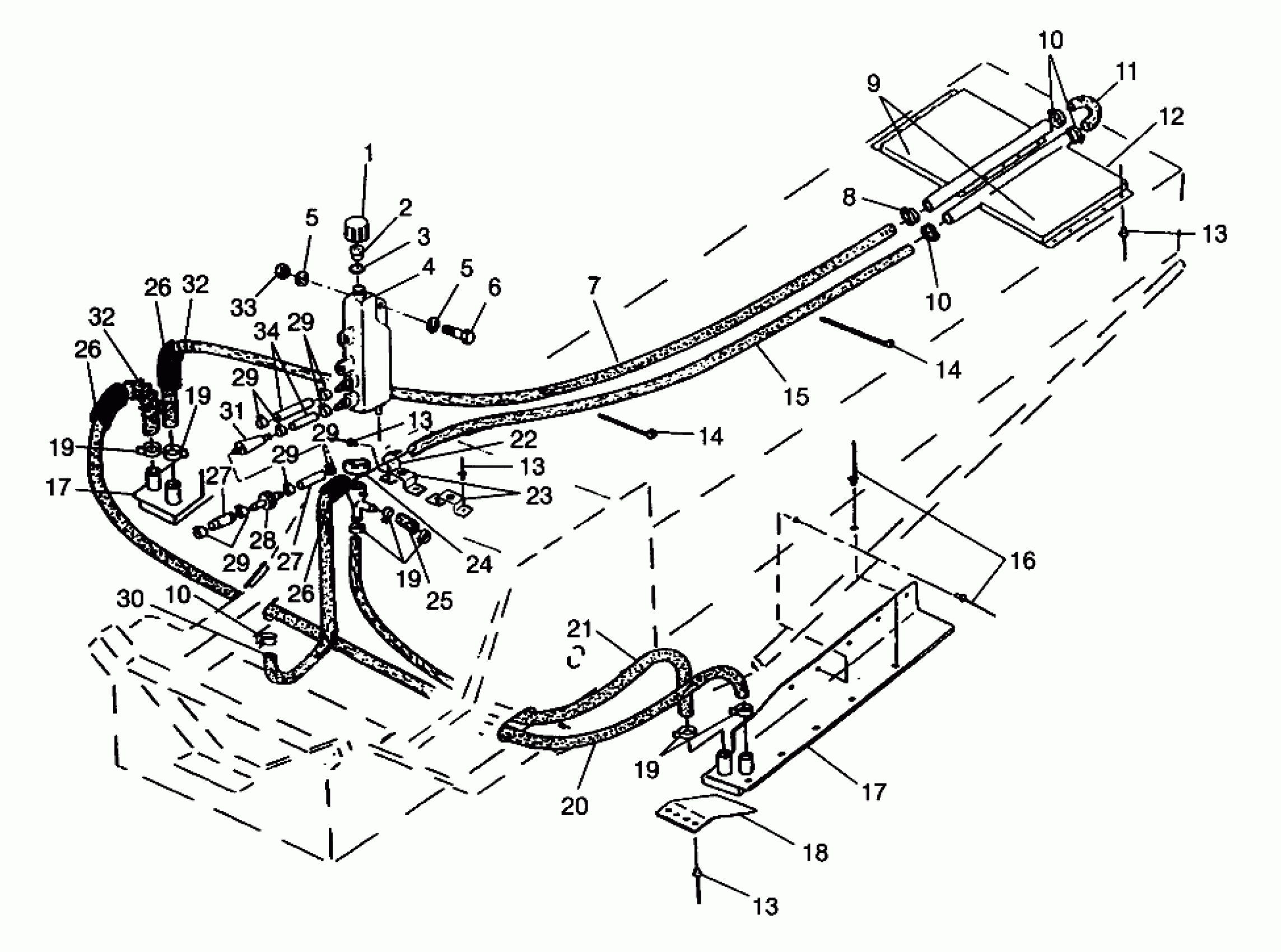

Polaris XLT TOURING - 0963357 COOLING SYSTEM XLT TOURING 0963357 and EUROPEAN XLT TOURING E963357 (4931923192B008) Diagram
#
1
CAP-OVER FLOW BOTTLE,DRILLED
5430743
$5.65
2
PLUG, OVERFLOW,(10)
5431096
$2.02
3
GASKET-OVERFLOW CAP
5810279
$2.41
4
BOTTLE,O'FLOW,W/FITTING
5431733
$36.41
5
WASHER,WROUGHT(10)
7558302
$1.59
5
WASHER,WROUGHT(10)
7558302
$1.59
6
BOLT(10)
7512240
$3.99
7
HOSE,R.COOLER OUTLET
5411078
Unavailable
8
CLAMP,HOSE,(10) Substituted by 7080843 (Yellow)
7080652
Unavailable
9
EXCHANGER,COOL.REAR Substituted by 2511301
2511254
$226.99
10
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844 (Gray)
7080564
$10.32
10
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844 (Gray)
7080564
$10.32
10
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844 (Gray)
7080564
$10.32
11
HOSE,COOLING
5410758
Unavailable
12
FOAM,SEAL,R.COOLER
5811082
Unavailable
13
RIVET-3/16-.090-.290
7661637
$1.49
13
RIVET-3/16-.090-.290
7661637
$1.49
13
RIVET-3/16-.090-.290
7661637
$1.49
13
RIVET-3/16-.090-.290
7661637
$1.49
14
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
14
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
15
HOSE,R.COOLER INLET,1"
5411079
Unavailable
16
RIVET,INTERLOCK,B(50)
7661638
$1.49
17
COOLING WELD,LH SIDE
1240020
$134.92
17
COOLING WELD,RH SIDE
1240021
$167.60
17
COOLING WELD,LH SIDE
1240020
$134.92
17
COOLING WELD,RH SIDE
1240021
$167.60
18
GUARD, COOL.EXT.
5222863
$32.99
19
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841 (Silver)
7080562
Unavailable
19
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841 (Silver)
7080562
Unavailable
19
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841 (Silver)
7080562
Unavailable
19
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841 (Silver)
7080562
Unavailable
20
HOSE,CROSSOVER
5410557
Unavailable
21
HOSE,CROSSOVER,SHORT
5411077
Unavailable
22
BRKT,COOLER HOSE
5241468
Unavailable
23
BRKT,OILTANK,COINED
5241334
$9.70
24
CAP,PRESS.(19-21 LB.)
2511256
Unavailable
25
HOSE,ENG.OUT/FILLER
5411010
$24.27
26
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
26
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
26
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
27
TAPE,FOIL,1.50 X 7.50
5810831
Unavailable
27
TAPE,FOIL,1.50 X 7.50
5810831
Unavailable
28
VALVE, CHECK
7052038
$10.51
29
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
29
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
29
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
29
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
29
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
30
SPRING,HOSE RETAINER
7042041
Unavailable
31
FILTER,WATER LINE Substituted by 2530024
2530010
Unavailable
32
SPRING,HOSE RETAINER
7041079
$4.95
32
SPRING,HOSE RETAINER
7041079
$4.95
33
NUT-LOCK(10)
7542122
$1.49
34
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
