CHAINCASE XLT TOURING 0963357 and EUROPEAN XLT TOURING E963357 (4931923192B009)

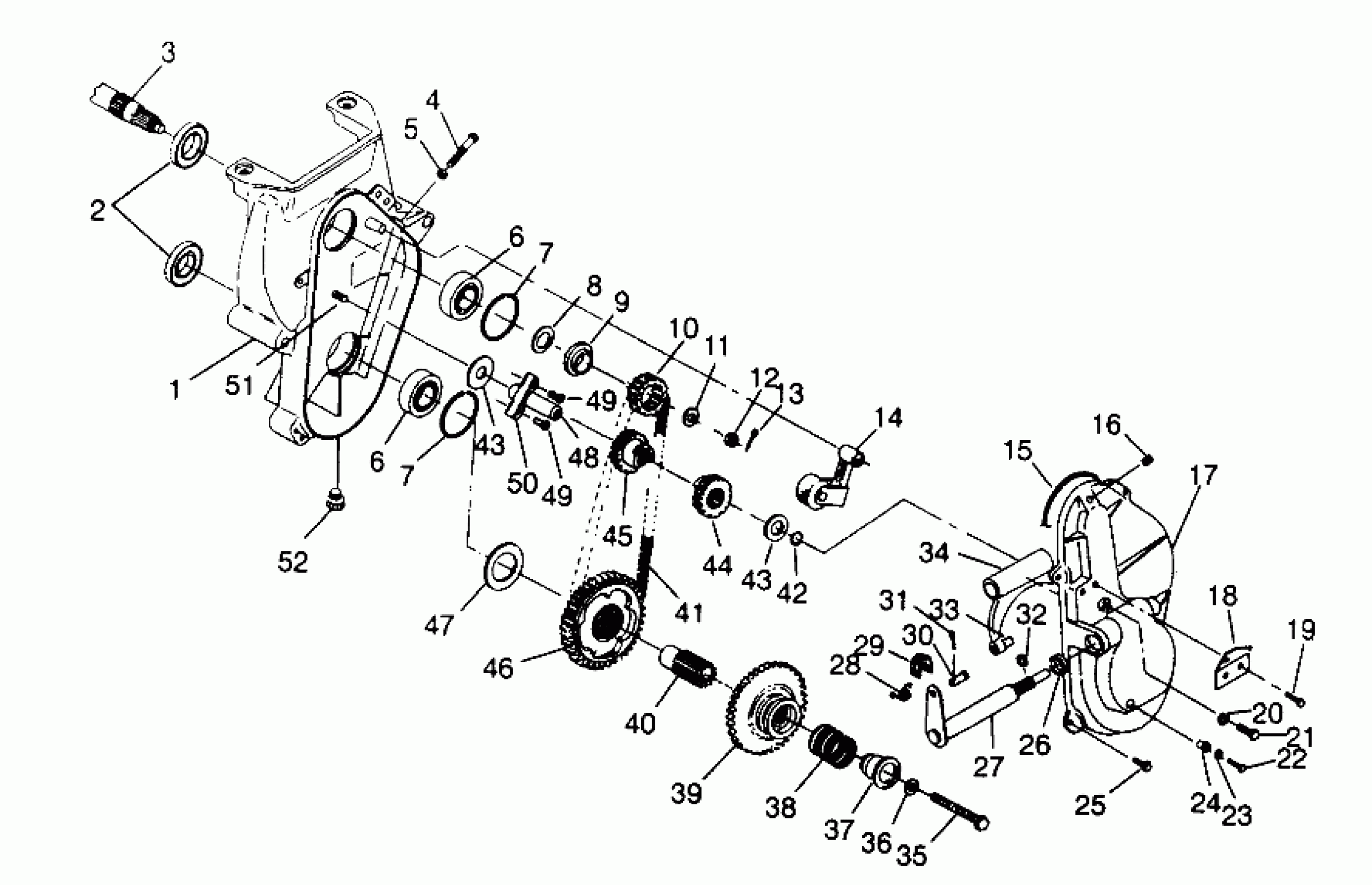

Polaris XLT TOURING - 0963357 CHAINCASE XLT TOURING 0963357 and EUROPEAN XLT TOURING E963357 (4931923192B009) Diagram
#
1
CHAINCASE,VENTED,W/BRG CLEAR. Substituted by 5131568
5131121
Unavailable
2
SEAL-OIL
3610030
$20.22
3
Asm., Jackshaft (See Page A24)
-------
Unavailable
4
SCREW(10)
7515511
$3.99
5
NUT(10)
7542404
$1.59
6
BEARING
3514308
Unavailable
6
BEARING
3514308
Unavailable
7
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
7
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
8
WASHER,THRUST(10)
7555876
Unavailable
9
SPACER,SPROCKET
5010359
Unavailable
10
SPKT,20T,(13W),15T SPLINE
3221061
Unavailable
11
WASHER, SLOTTED(10)
7571620
$7.19
12
NUT
7542811
Unavailable
13
COTTER PIN(10)
7661401
$1.49
14
PIN,CHAIN TIGHTENER
7662210
Unavailable
14
TIGHTENER ASM,GEARCASE Substituted by 1332213
1332096
$159.99
14
BEARING
3553002
$11.99
14
BLOCK,TIGHTENER [No Longer Available]
5630122
Unavailable
14
WHEEL,C/C IDLER
5630123
Unavailable
14
WASHER THRUST(10)
7558702
$1.59
15
GASKET-CHAINCASE
5410277
$24.99
16
PLUG(10)
7051520
$8.79
17
COVER,CH.CS,REV.MACH. Substituted by 5131753
5131172
Unavailable
18
BRKT,CABLE MOUNT
5222502-067
Unavailable
19
SCREW(10)
7512252
Unavailable
20
WASHER WROUGHT(10)
7558403
$4.79
21
SCREW(10)
7512497
Unavailable
22
SCREW(10)
7511909
$3.99
23
WASHER, FLAT(10)
7558201
$5.79
24
NUT-WELL(10)
7541918
Unavailable
25
SCREW(10)
7512242
$2.39
26
Seal, Oil
3610029
$8.89
27
SHAFT, SHIFT
1341093-067
$29.37
28
SPRING,REV.CABLE TENSION
7042044
Unavailable
29
CLEVIS
5222606
Unavailable
30
PIN, CLEVIS(10)
7661830
$3.99
31
PIN-COTTER(10)
7661205
$1.49
32
RING, RETAINER(10)
7710415
$3.99
33
PIN, SHIFT FORK(10)
7661826
$5.65
34
KIT,SHIFT FORK/SHAFT (Incl. 27, 33)
2200363
Unavailable
34
Fork, Shift
5130805
Unavailable
35
SCREW, NYLOK(10)
7515348
$4.79
36
LOCK WASHER(10)
7552901
$1.49
37
RETAINER,DRIVE COUPLER
5130727
Unavailable
38
SPRING, COMPRESSION Substituted by 7041887
7041309
$44.99
39
GEAR ASM,REVERSE Substituted by 1341362
1341121
$559.99
40
Coupler, Drive
5130720
Unavailable
41
CHAIN,66P,(13W),SILENT
3224051
Unavailable
42
O RING
5410589
$4.99
43
WASHER,THRUST(10)
7555877
$3.99
43
WASHER,THRUST(10)
7555877
$3.99
44
GEAR,SPUR PINION
1341075
$149.99
45
GEAR ASM, PINION
1341076
Unavailable
46
KIT,REV.GEAR'F'
1341111
$112.47
47
WASHER, REVERSE(10)
7555871
$5.59
48
SHAFT, PINION Substituted by 5131770
5130728
Unavailable
49
SCREW(10)
7512019
$3.99
49
SCREW(10)
7512019
$3.99
50
BRKT,CHAIN RETENTION
5222298
Unavailable
51
BOLT(10)
7515477
$34.99
52
PLUG(10)
7052115
$5.65
