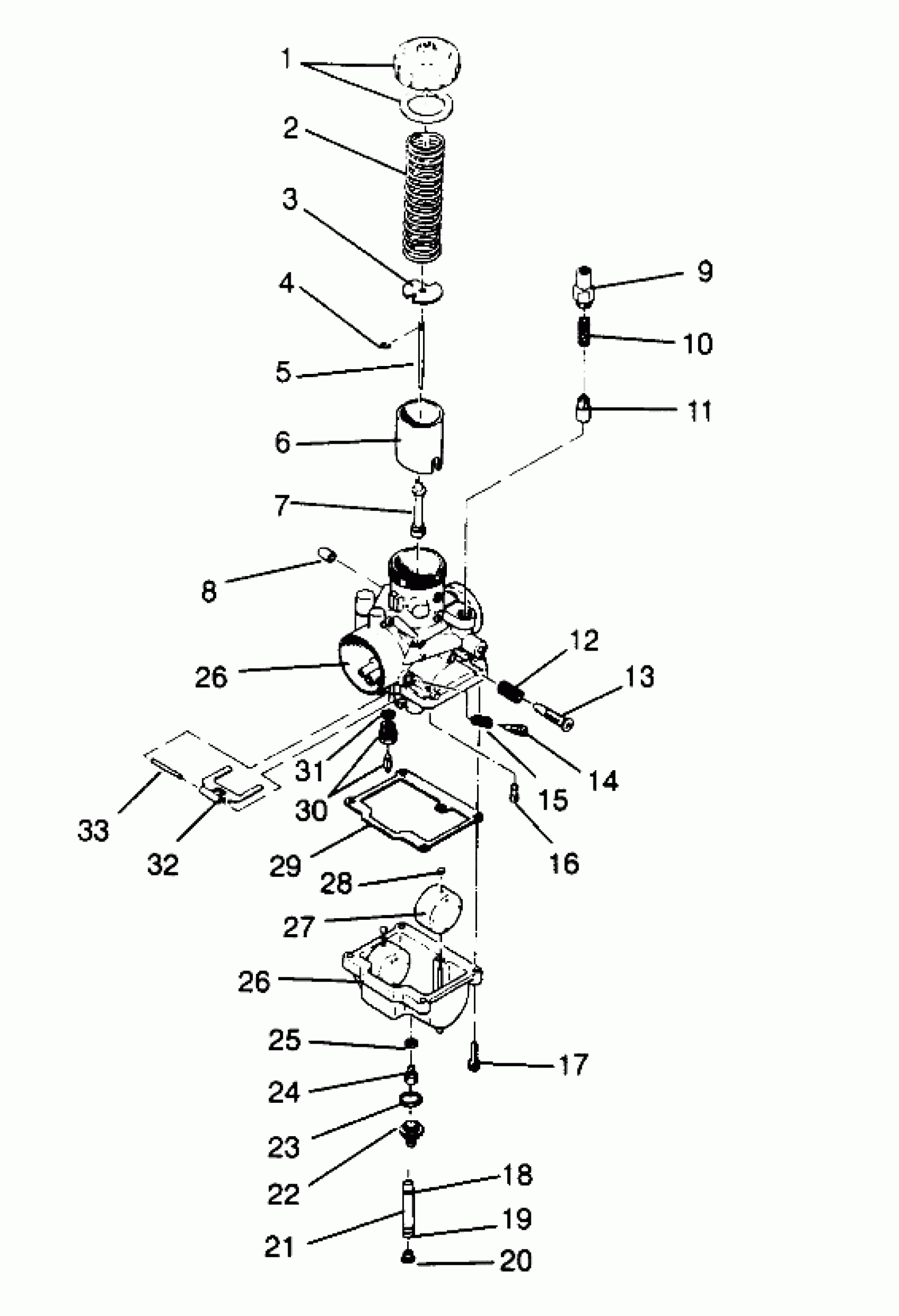

Polaris XLT TOURING - 0963357 CARBURETOR XLT TOURING 0963357 and EUROPEAN XLT TOURING E963357 (4931923192C011) Diagram

#

Description
Price

1

TOP ASM

3130184

$32.37

2

SPRING,THROTTLE

3130439

$13.59

3

PLATE

3130027

$9.70

4

E RING(10) Substituted by 3130508

3130003

Unavailable

5

JET, NEEDLE (6DP17-3)

3130374

Unavailable

6

VALVE, THROTTLE (2.5)

3130466

Unavailable

7

NEEDLE JET Substituted by 3130376 (166)

3130166

Unavailable

8

CAP

3130479

$14.56

9

HOLDER,GUIDE

3130199

$28.32

10

SPRING,PLUNGER

3130006

$8.89

11

PLUNGER ASM, STARTER

3130328

$32.37

12

SPRING,THROTTLE ADJ.

3130010

$8.89

13

SCREW,THROTTLE STOP

3130009

$19.99

14

SCREW,AIR

3130011

$19.99

15

SPRING,AIR ADJUST

3130012

$8.89

16

JET,PILOT,#35(10) (#35)

3130066

$8.89

17

SCREW & WASHER(10)

3130025

$3.19

18

CLAMP,SPRING,(10)

7080534

$1.59

19

CLAMP,HOSE(10)

7080544

Unavailable

20

PLUG,TRAP

5431893

$12.94

21

FUEL LINE, 5 FT.

8450045-153

$99.99

22

NIPPLE

3130573

$32.37

23

O RING

3130239

Unavailable

24

JET,MAIN,#250(10) (#250)

3130637

$7.27

25

WASHER (10)

3130014

$1.59

26

CARBURETOR ASM. (Incl. 1-17, 22-33)

3130636

Unavailable

26

CARBURETOR ASM. (Incl. 1-17, 22-33)

3130636

Unavailable

27

FLOAT ASM.

3130430

$43.56

28

CAP,(10)

3130237

$4.03

29

PACKING,FLOAT CHAMBER

3130020

$16.17

30

VALVE,NEEDLE Substituted by 3131146 (1.5)

3130016

$48.56

31

PACKING(10)

3130017

$4.03

32

ARM,FLOAT

3130018

$24.27

33

PIN, FLOAT

3130361

$8.89
