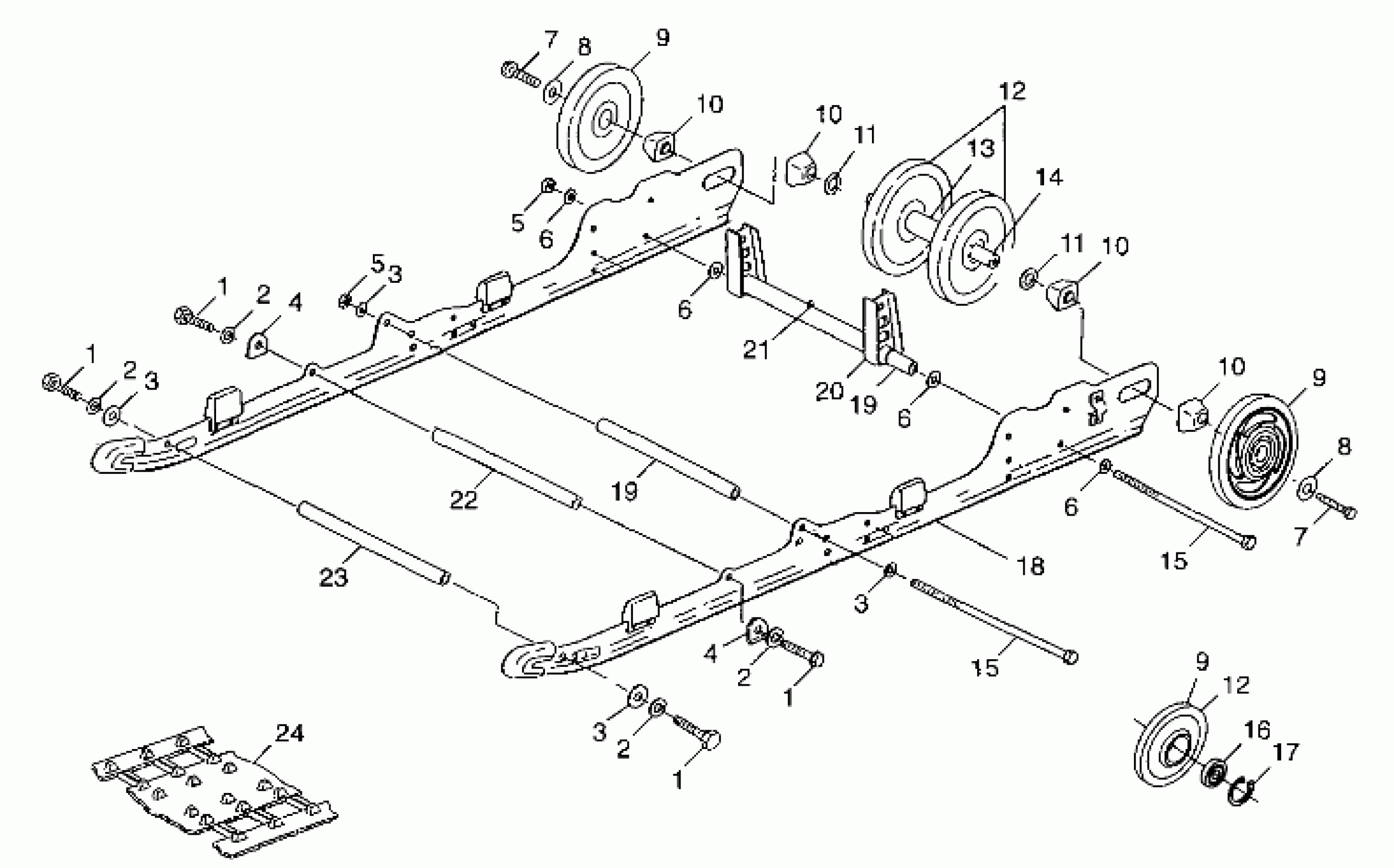

Polaris XLT SP - 099AB6AS SUSPENSION - 099AB6AS (4948394839b011) Diagram
#
1
SCREW,(10)
7517247
$3.19
1
SCREW,(10)
7517247
$3.19
1
SCREW,(10)
7517247
$3.19
1
SCREW,(10)
7517247
$3.19
2
WASHER(10)
7552603
$1.49
2
WASHER(10)
7552603
$1.49
2
WASHER(10)
7552603
$1.49
2
WASHER(10)
7552603
$1.49
3
WASHER(10)
7555806
$1.49
3
WASHER(10)
7555806
$1.49
3
WASHER(10)
7555806
$1.49
3
WASHER(10)
7555806
$1.49
4
BRKT-SHAFT SUPPORT
5241443
Unavailable
4
BRKT-SHAFT SUPPORT
5241443
Unavailable
5
NUT LOCK(10)
7542411
$3.19
5
NUT LOCK(10)
7542411
$3.19
6
WASHER(10)
7555893
$1.49
6
WASHER(10)
7555893
$1.49
6
WASHER(10)
7555893
$1.49
6
WASHER(10)
7555893
$1.49
7
BOLT(10)
7515526
$1.19
7
BOLT(10)
7515526
$1.19
8
WASHER(10) Substituted by 7556130
7571629
Unavailable
8
WASHER(10) Substituted by 7556130
7571629
Unavailable
9
RET.RING-TRUARC
7718407
$4.79
9
Bearing
3514012
Unavailable
9
WHEEL,IDLER,SCRL,B.RED
1594083-243
$48.56
9
RET.RING-TRUARC
7718407
$4.79
9
Bearing
3514012
Unavailable
9
WHEEL,IDLER,SCRL,B.RED
1594083-243
$48.56
9
RET.RING-TRUARC
7718407
$4.79
9
Bearing
3514012
Unavailable
9
WHEEL,IDLER,SCRL,B.RED
1594083-243
$48.56
10
SPACER-IDLER
5432535
$11.99
10
SPACER-IDLER
5432535
$11.99
10
SPACER-IDLER
5432535
$11.99
10
SPACER-IDLER
5432535
$11.99
11
BUSHING(10)
7555918
$1.59
11
BUSHING(10)
7555918
$1.59
12
WHEEL ASM,PLAIN(6.38 O.D.)
1594087
$72.84
12
WHEEL ASM,PLAIN(6.38 O.D.)
1594087
$72.84
13
SPACER-IDLER, CENTER
5333283
$19.99
14
SHAFT,IDLER
5020744
$59.99
15
Screw
7517353
Unavailable
15
Screw
7517353
Unavailable
16
BEARING (1 Per Wheel)
3514012
Unavailable
17
RING-RETAINING (1 Per Wheel)
7710444
Unavailable
18
SLIDER,WHITE Substituted by 5521452
5521405
$40.46
19
SHAFT
5333404
$24.27
19
SHAFT
5333404
$24.27
20
ARM,R.PIVOT
1540982-067
$38.05
21
ZERK,FITTING,THREADED(10)
7080433
$1.49
22
SHAFT,PIVOT ARM
5020724
$29.99
23
SHAFT,PIVOT ARM
5020723
$29.99
24
CLIP, TRACK(CAMOPLAST),(10)
5222839
Unavailable
24
CLIP,GUIDE,CAMOPLAST,(10)
5222840
Unavailable
24
TRACK,121"X15,.82 LUG
5411379
$749.99
