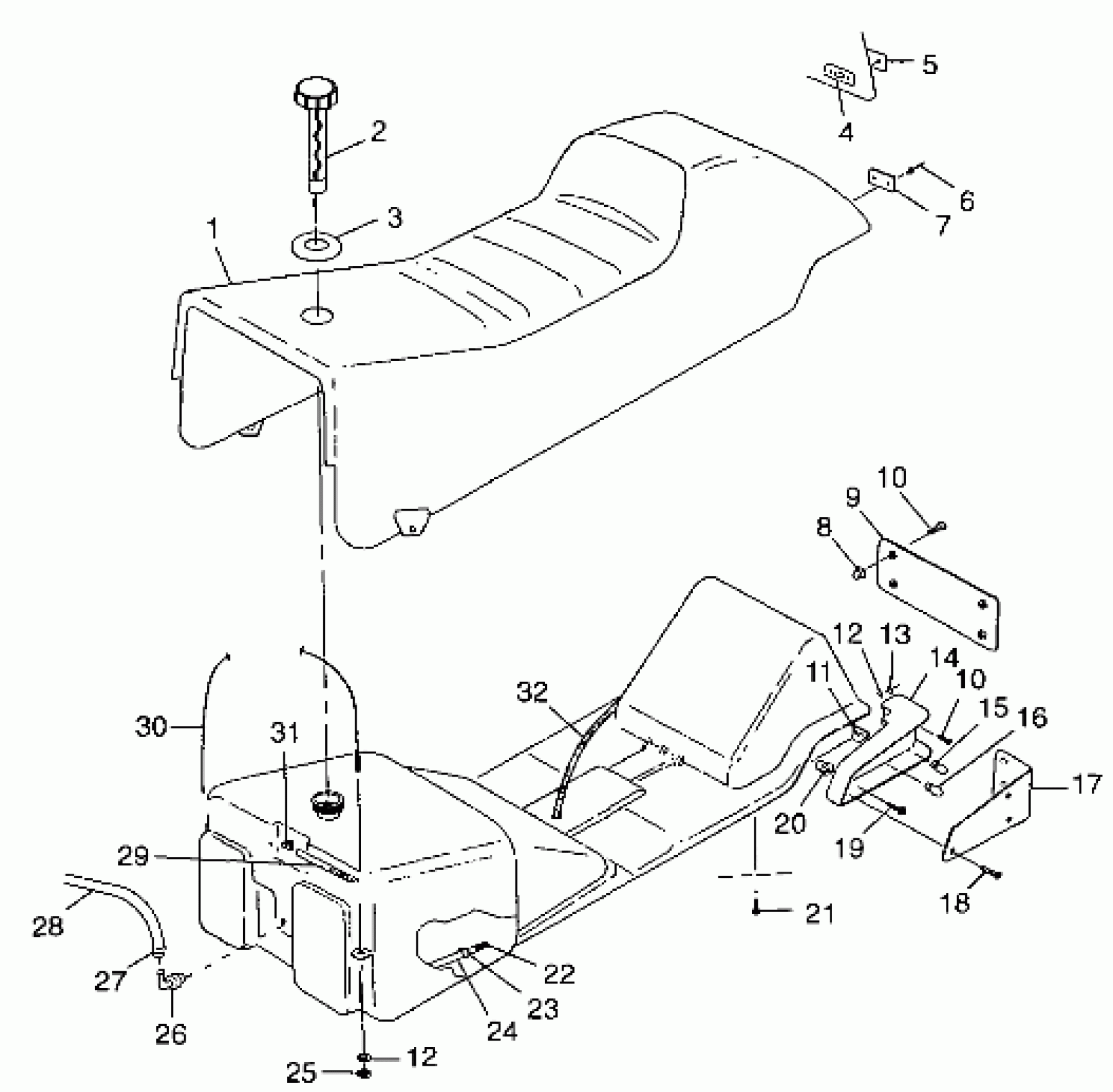

Polaris XLT SP - 099AB6AS SEAT and GAS TANK - 099AB6AS (4948394839a006) Diagram

#

Description
Price

1

SEAT ASM. (Incl. 1,4-20,22-26,30-32)

2682381

$399.99

1

COVER ASM,SEAT

2682382

Unavailable

2

GASKET, GAS CAP

5810513

$8.89

2

CAP,GAS,W/GAUGE

2511248

$44.51

3

GROMMET,FUELTANK

5410815

Unavailable

4

GROMMET,RELATCH,1",BOTT.(10)

7080550

Unavailable

5

GROMMET,RELATCH,1",TOP(10)

7080549

Unavailable

6

RIVET(50)

7621337

$1.49

7

TWISTLOCK,RELATCH,1",W/HOLE(10)

7080548

Unavailable

8

NUT(10)

7546908

$2.63

9

REFLECTOR,CTR,SEAT

5432008

Unavailable

10

SCREW,SELF-TAP(10)

7522004

Unavailable

10

SCREW,SELF-TAP(10)

7522004

Unavailable

11

BRKT,SEAT MT,BLK

1012643-067

Unavailable

12

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

12

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

13

RIVET-POP,3/16(.376-.500)(50)

7661046

$3.99

14

HOUSING,LH,LENS

5432002

Unavailable

14

HOUSING,RH,LENS

5432003

Unavailable

15

Bulb, Brakelight

4030045

Unavailable

16

BULB, T/L.

4032084

Unavailable

17

LENS,RH

5432032

$44.51

17

LENS,LH

5432031

Unavailable

18

SCREW(10)

7512054

$2.39

19

SCREW(10)

7511954

$1.19

20

NUT, WELL(10)

7541901

$6.39

21

SCREW(10)

7515159

$4.79

22

FUELPICKUP,W/STRAINER

7052037

$12.94

23

RING, COMPRESSION(10)

7080402

$1.60

24

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

25

NUT(10)

7541925

$1.49

26

FITTING - OUTLET(10)

7052023

$24.99

27

HOSE CLAMP, RED

7080003

$1.49

28

DESC NOT_AVAILABLE

8450040-153

Unavailable

29

FUELLINE,3MMX7MM

8450061-600

Unavailable

30

CABLE,TANK,RETENTION

7080559

Unavailable

31

FITTING,90 DEG,1/8,(10)

7052095

$4.79

32

HARNESS,T/L,121,(SCULPT)

2460541

Unavailable
