PISTON and CRANKSHAFT - 099AB6AS (4948394839c010)

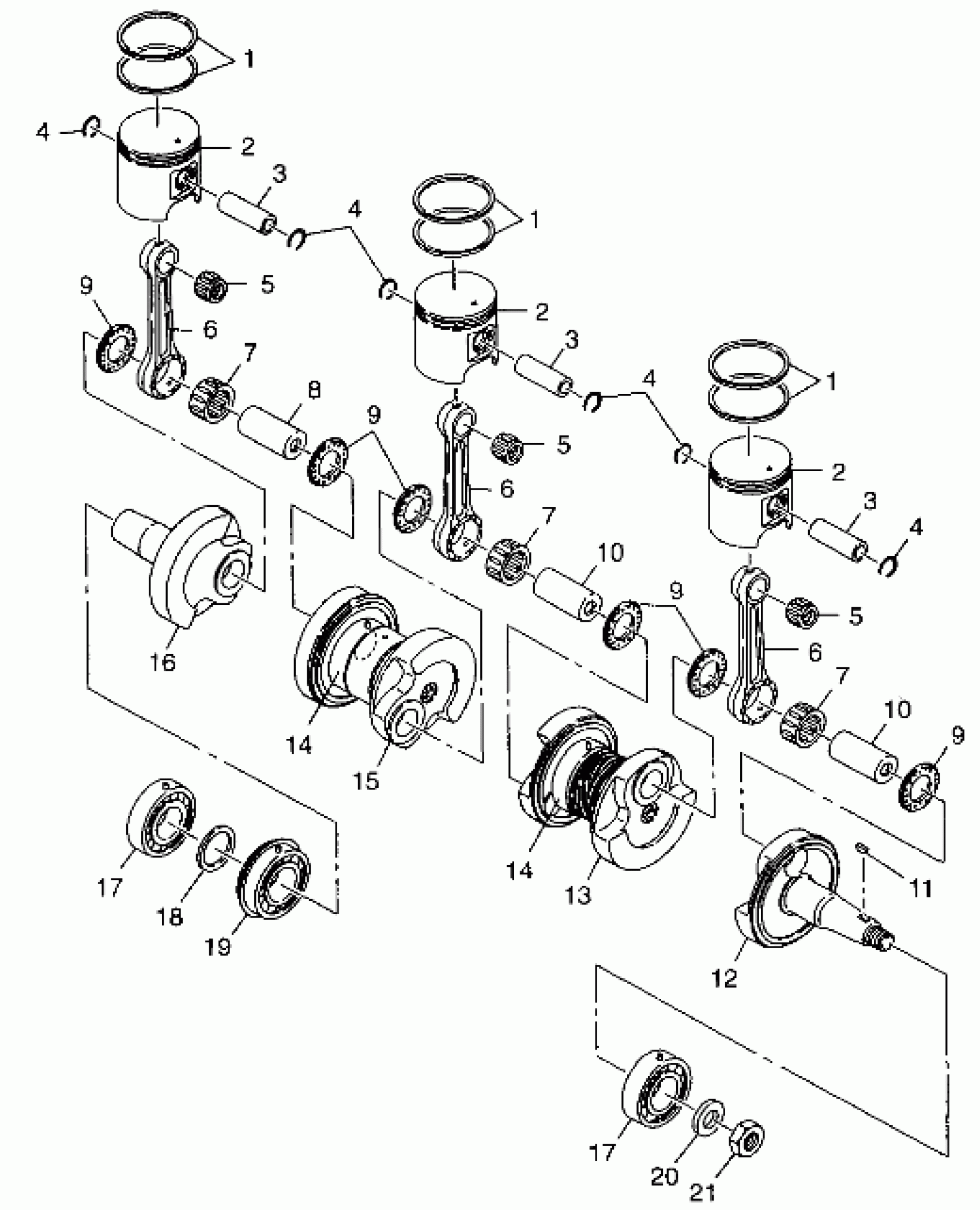

Polaris XLT SP - 099AB6AS PISTON and CRANKSHAFT - 099AB6AS (4948394839c010) Diagram
#
1
RING, PISTON .010 O/S (0.25mm O/S)
3083358
Unavailable
1
RING,PISTON .020 O/S (0.50mm O/S)
3083359
Unavailable
1
RING, PISTON (Standard)
3083349
Unavailable
1
RING, PISTON .010 O/S (0.25mm O/S)
3083358
Unavailable
1
RING,PISTON .020 O/S (0.50mm O/S)
3083359
Unavailable
1
RING, PISTON (Standard)
3083349
Unavailable
1
RING, PISTON .010 O/S (0.25mm O/S)
3083358
Unavailable
1
RING,PISTON .020 O/S (0.50mm O/S)
3083359
Unavailable
1
RING, PISTON (Standard)
3083349
Unavailable
2
PISTON,(.50MM O/S) Substituted by 3085434 (0.50mm O/S)
3085020
Unavailable
2
PISTON (0.25 O/S) (0.25mm O/S)
3085874
$118.99
2
PISTON (STD) (Standard)
3085873
$138.08
2
PISTON,(.50MM O/S) Substituted by 3085434 (0.50mm O/S)
3085020
Unavailable
2
PISTON (0.25 O/S) (0.25mm O/S)
3085874
$118.99
2
PISTON (STD) (Standard)
3085873
$138.08
2
PISTON,(.50MM O/S) Substituted by 3085434 (0.50mm O/S)
3085020
Unavailable
2
PISTON (0.25 O/S) (0.25mm O/S)
3085874
$118.99
2
PISTON (STD) (Standard)
3085873
$138.08
3
Pin, Piston
3085021
Unavailable
3
Pin, Piston
3085021
Unavailable
3
Pin, Piston
3085021
Unavailable
4
CLIP,PISTON PIN,(10)
3084456
Unavailable
4
CLIP,PISTON PIN,(10)
3084456
Unavailable
4
CLIP,PISTON PIN,(10)
3084456
Unavailable
4
CLIP,PISTON PIN,(10)
3084456
Unavailable
5
BEARING,SMALL END
3080998
Unavailable
5
BEARING,SMALL END
3080998
Unavailable
5
BEARING,SMALL END
3080998
Unavailable
6
ROD,CONNECTING
3085627
$84.50
6
ROD,CONNECTING
3085627
$84.50
6
ROD,CONNECTING
3085627
$84.50
7
BEARING,LARGE END
3085628
$31.99
7
BEARING,LARGE END
3085628
$31.99
7
BEARING,LARGE END
3085628
$31.99
8
PIN-CRANK 2
3083254
Unavailable
9
SPACER(CRANKPIN)
3083277
$15.99
9
SPACER(CRANKPIN)
3083277
$15.99
9
SPACER(CRANKPIN)
3083277
$15.99
9
SPACER(CRANKPIN)
3083277
$15.99
10
PIN, CRANK, #1
3084447
$32.15
10
PIN, CRANK, #1
3084447
$32.15
11
KEY Substituted by 3081543
3080130
Unavailable
12
CRANKSHAFT 1 Substituted by 3084597 (MAG Side)
3084441
$226.99
12
CRANKSHAFT ASM. (Incl. 6-10,12-17)
3085437
$1,699.99
13
CRANKSHAFT,MAG SIDE (MAG Side) (Incl. 10)
3084443
Unavailable
13
CRANKSHAFT,CTR. (Center) (Incl. 6-10,13,15)
3085438
$869.99
14
BEARING, BALL
3084586
$44.99
14
BEARING, BALL
3084586
$44.99
15
CRANKSHAFT,PTO SIDE (PTO Side) (Incl. 8)
3084444
$549.99
16
CRANKSHAFT#3,PTO SIDE (PTO Side)
3085439
$273.59
17
BEARING, BALL
3084681
Unavailable
17
BEARING, BALL
3084681
Unavailable
18
SPACER,CRANKSHAFT
3080447
$1.99
19
BEARING, BALL
3084599
Unavailable
20
Washer
3084457
Unavailable
21
NUT
3083093
$19.99
