OIL TANK/AIR BOX - 099AB6AS (4948394839c007)

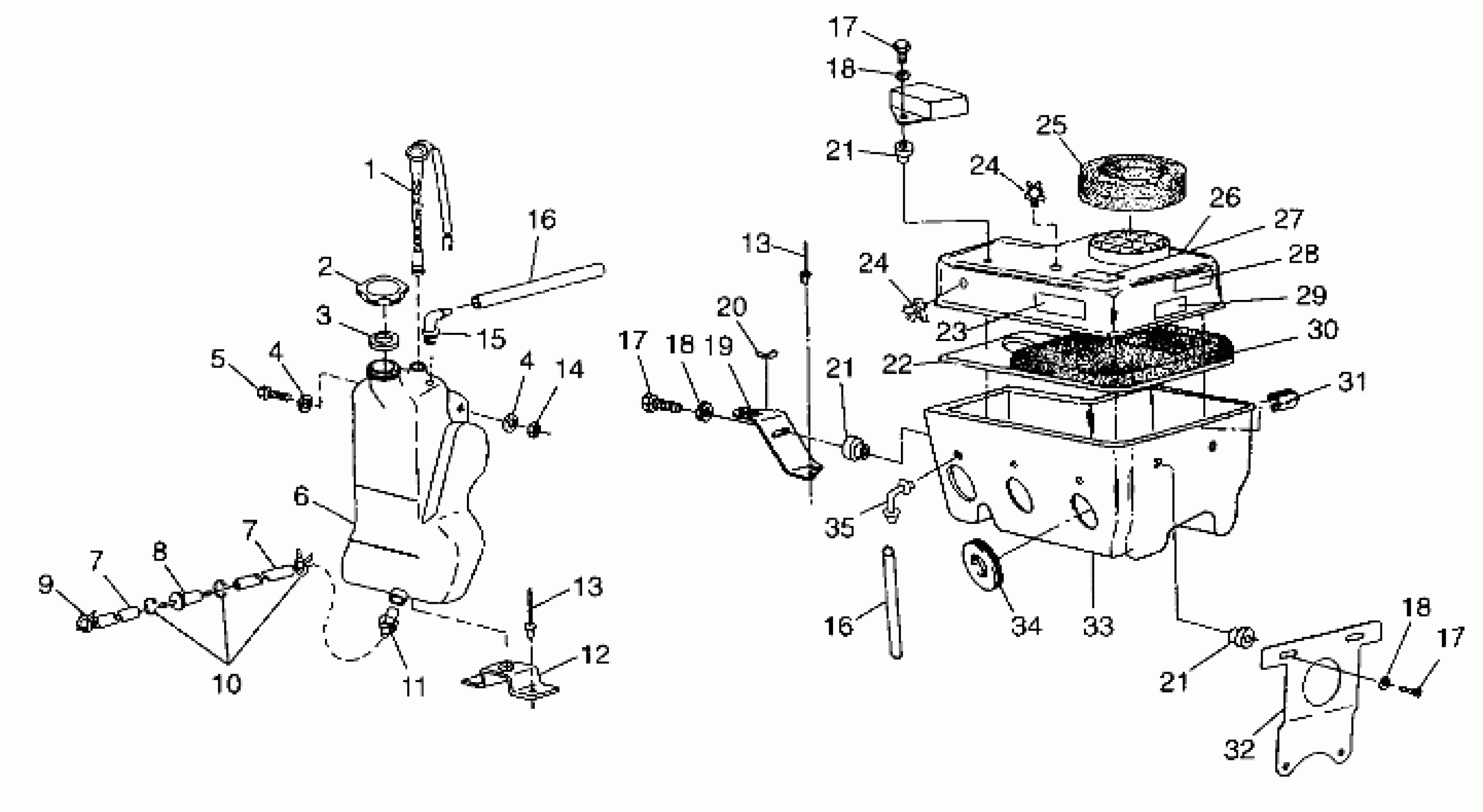

Polaris XLT SP - 099AB6AS OIL TANK/AIR BOX - 099AB6AS (4948394839c007) Diagram
#
1
SENSOR,OIL LEVEL,W/CONN.
4040040
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
WASHER,WROUGHT(10)
7558302
$1.59
4
WASHER,WROUGHT(10)
7558302
$1.59
5
BOLT(10)
7512240
$3.99
6
Tank, Oil
5431437
Unavailable
7
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
7
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
8
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
9
CLAMP-HOSE,(10)
7080236
$1.59
10
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
11
FITTING, OUTLET
7052042
$8.99
12
BRKT,OILTANK,COINED
5241334
$9.70
13
RIVET,INTERLOCK,B(50)
7661638
$1.49
13
RIVET,INTERLOCK,B(50)
7661638
$1.49
14
NUT-LOCK(10)
7542122
$1.49
15
FITTING,90 DEG,1/8,(10)
7052095
$4.79
16
FUELLINE,3MMX7MM
8450061-600
Unavailable
16
FUELLINE,3MMX7MM
8450061-600
Unavailable
17
SCREW(10)
7512222
$2.39
17
SCREW(10)
7512222
$2.39
17
SCREW(10)
7512222
$2.39
18
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
18
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
18
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
19
BRKT,AIR SILENCER,W/TAB,BLK.
5240824-067
Unavailable
20
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
21
NUT-WELL(10)
7541923
$5.59
21
NUT-WELL(10)
7541923
$5.59
21
NUT-WELL(10)
7541923
$5.59
22
PLATE, AIR SILENCER
5850102
Unavailable
23
DECAL,COOL.SYSTEM [No Longer Available]
7075359
Unavailable
24
CLIP, PLASTIC(10)
4020139
$4.79
24
CLIP, PLASTIC(10)
4020139
$4.79
25
DUCT ASM,AIR
2620057
$40.46
26
SILENCER.UP.AIR,DRILLED
5431879
Unavailable
27
DECAL,CAUTION,AIRBOX
7075351
Unavailable
28
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
29
DECAL, GREASING [No Longer Available]
7073426
$7.27
30
BAFFLE ASM.
1253124
Unavailable
31
CLIP, AIR BOX,(10)
7670055
$7.99
32
BRKT,AIR BOX
5241080-067
Unavailable
33
SILENCER,INTAKE,DRILLED
5433031
Unavailable
34
BOOT,CARB,63MM.
5411424
Unavailable
35
FITTING,(10)
7052077
$6.39
