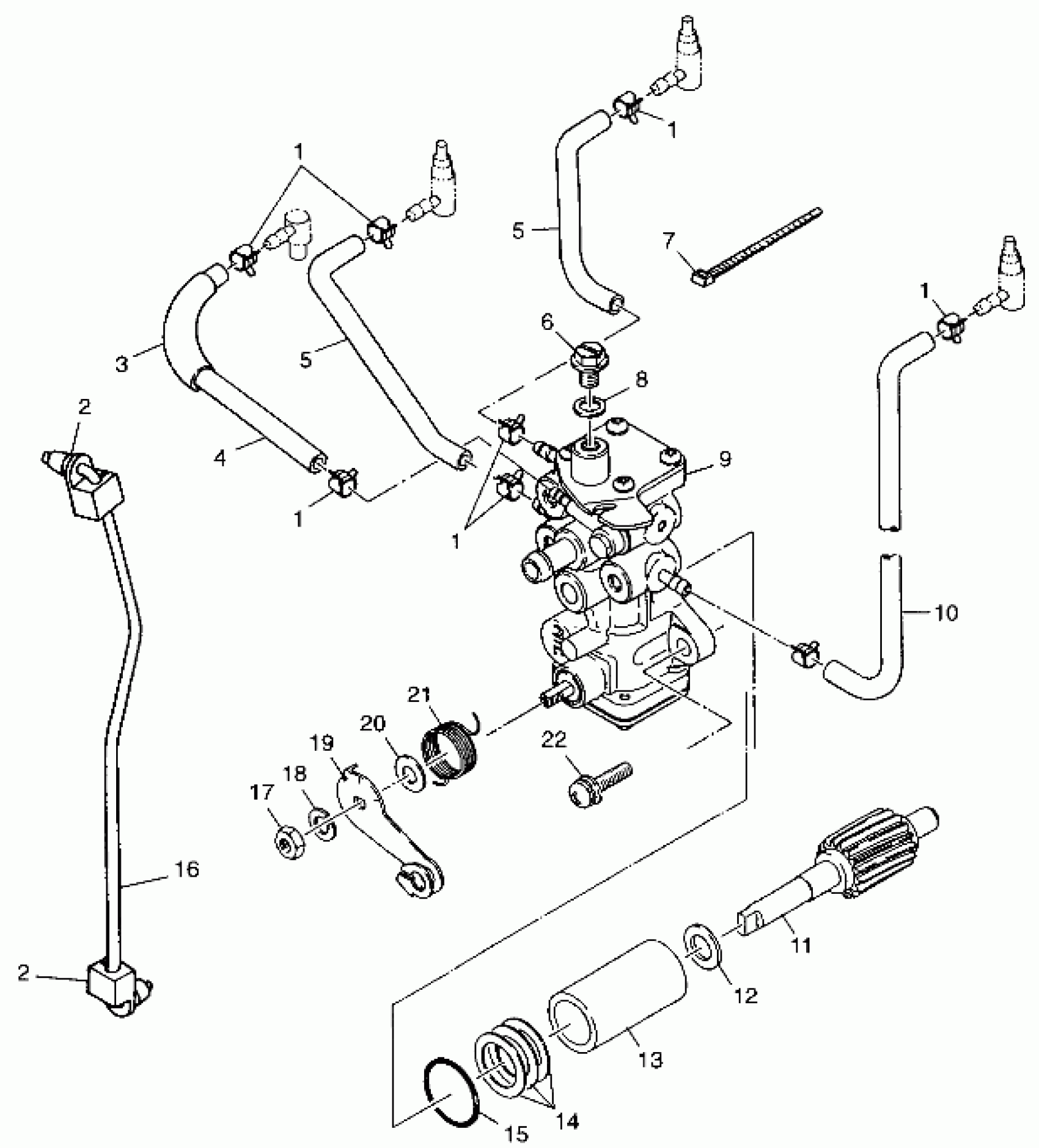

Polaris XLT SP - 099AB6AS OIL PUMP - 099AB6AS (4948394839d001) Diagram

#

Description
Price

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

2

BUSHING,LINKAGE

3240234

Unavailable

2

BUSHING,LINKAGE

3240234

Unavailable

3

DESC NOT_AVAILABLE

3086106

Unavailable

4

PIPE,RUBBER(8MMX1M.)ACCS (290mm)

3085172

$36.19

5

PIPE,VINYL 1 (120mm)

3085157

$29.99

5

PIPE,VINYL 1 (120mm)

3085157

$29.99

6

SCREW-AIR VENT

3083125

Unavailable

7

Band, Wire

3083447

Unavailable

8

PACKING(10)

3083126

$4.03

9

PUMP,OIL (Incl. 6,8,9,15-21)

3086104

Unavailable

10

PIPE 1,VINYL (210mm)

3084467

$28.32

11

GEAR,SMALL,OIL PUMP

3083131

$89.99

12

SPACER

3083130

$1.59

13

BUSHING(OIL PUMP)

3083353

$31.99

14

SPACER #3 (.6mm)

3083673

Unavailable

14

SPACER #2 (.3mm)

3083672

Unavailable

14

SPACER #1 (.15mm)

3083671

Unavailable

15

O RING

3083127

Unavailable

16

ROD

3086105

Unavailable

17

NUT(10)

3083120

$3.19

18

WASHER-SPRING(10)

3083121

$299.99

19

CONTROL-LEVER

3086109

Unavailable

20

COLLAR, CAMSHAFT(10)

3083445

$2.39

21

SPRING AND LEVER

3086110

$53.59

22

SCREW&WASHER,(10)

3083783

$2.39
