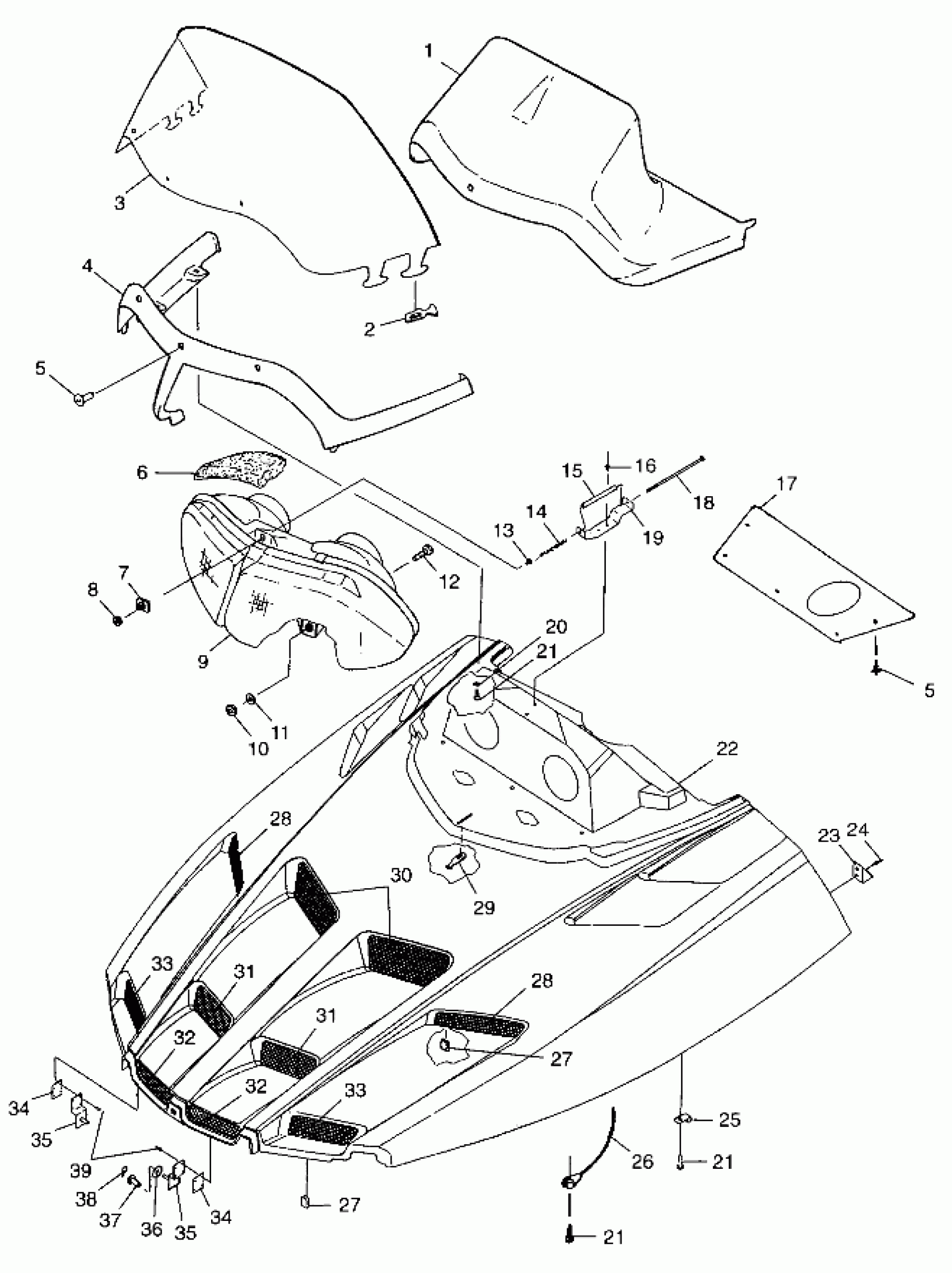

Polaris XLT SP - 099AB6AS HOOD - 099AB6AS (4948394839a013) Diagram
#
1
HOUSING,INST.
5431780-070
Unavailable
2
RETAINER,WINDSHIELD,(10)
5410970
$1.49
3
WNDSHLD,CLR,STD,AGR.
5432267
Unavailable
4
RETAINER,W/S,BLK.MET.
5432573-177
Unavailable
5
RIVET,PLASTI-LOC.(50)
7621509
$1.49
5
RIVET,PLASTI-LOC.(50)
7621509
$1.49
6
FOAM-HEADLIGHT
5811094
Unavailable
7
NUT,H/L.PIVOT
5431901
Unavailable
8
NUT(10)
7541925
$1.49
9
BULB,QUARTZ.H/L,INDY
2870448
$24.99
9
RETAINER,H/L BULB
4032063
Unavailable
9
H/L ASM. (Incl. Bulbs)
2431009
$185.99
10
NUT-LOCK(10)
7542122
$1.49
11
WASHER(10)
7558301
$1.49
12
SCREW(10)
7512222
$2.39
13
WASHER,SPECIAL
5020811
Unavailable
14
SPRING,ADJ.H/L
7041397
Unavailable
15
SPACER,TUBE
5333296
Unavailable
16
RIVET(50)
7621485
$1.49
17
PLENUM,AIR INT,HOOD
5432614
Unavailable
18
SCREW,ADJ.,H/L.(10)
4032072
Unavailable
19
BRKT,H/L ADJUST
5240757-067
Unavailable
20
BURR,RIVET(50)
7555904
$1.49
21
SCREW(10)
7512026
$1.49
21
SCREW(10)
7512026
$1.49
21
SCREW(10)
7512026
$1.49
22
HOOD,AGR,BLK (Incl. Foil and Foam)
2631895-177
Unavailable
23
CUP, HOOD LATCH,(10)
5430733
$4.84
24
RIVET(50)
7621334
$1.49
25
CLAMP, RETAINER(10)
7080372
$3.99
26
CABLE-HOOD RETAINER
7080569
Unavailable
27
SPEEDCLIP,'U'TYPE(10)
7670082
Unavailable
27
SPEEDCLIP,'U'TYPE(10)
7670082
Unavailable
28
SCREEN,RH,SIDEUPP.LOUVER
5241146-067
Unavailable
28
SCREEN,RH,SIDEUPP.LOUVER
5241146-067
Unavailable
29
RETAINER-TAB,(10)
5411075
Unavailable
30
SCREEN,RH,CTR,UPP.LOUVER
5241142-067
$19.83
31
SCREEN,CTR,MID.LOUVER
5241140-067
Unavailable
31
SCREEN,CTR,MID.LOUVER
5241140-067
Unavailable
32
SCREEN,LOUVER,CTR.LOW.
5241138-067
Unavailable
32
SCREEN,LOUVER,CTR.LOW.
5241138-067
Unavailable
33
SCREEN,RH,SIDELOW.LOUVER
5241144-067
$16.35
33
SCREEN,RH,SIDELOW.LOUVER
5241144-067
$16.35
34
PLATE,HINGE,BLK.
5211536-067
$5.75
34
PLATE,HINGE,BLK.
5211536-067
$5.75
35
HINGE,UPPER,LH
1012246-067
$15.08
35
HINGE,UPPER,RH
1012247-067
Unavailable
35
HINGE,UPPER,LH
1012246-067
$15.08
35
HINGE,UPPER,RH
1012247-067
Unavailable
36
WASHER(10)
7555734
$1.49
37
BUSHING, HINGE
5431884
Unavailable
38
PIN,HITCH(10)
7661644
$2.39
39
RIVET(50)
7621433
$1.49
