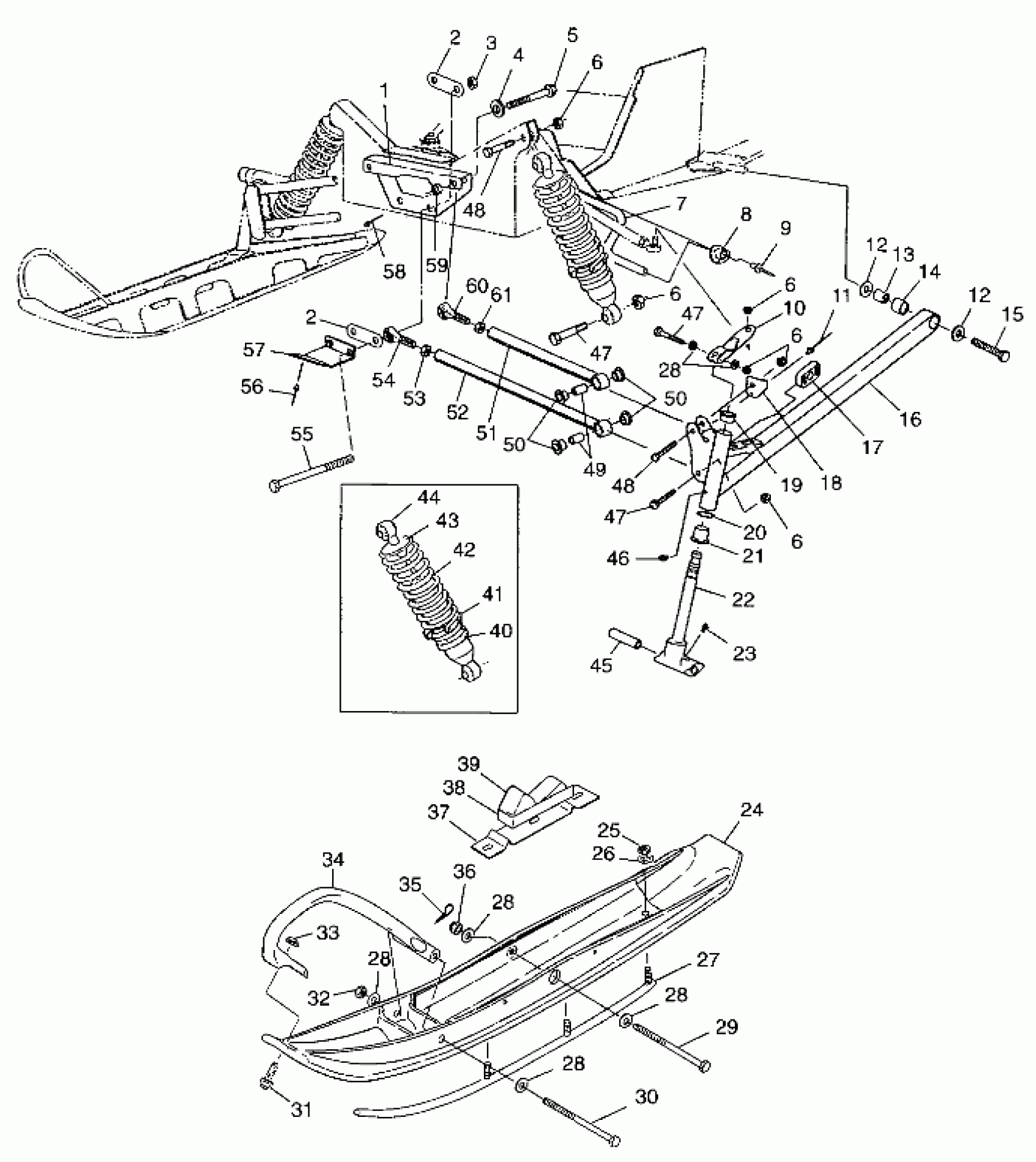

Polaris XLT SP - 099AB6AS FRONT SUSPENSION and SKI - 099AB6AS (4948394839b005) Diagram

#

Description
Price

1

BRACE,FR.BULKH.,BLK Substituted by 5242112-067

5241641-067

Unavailable

2

STRAP,SPACER BOTTOM

5211345

$12.99

2

STRAP,SPACER BOTTOM

5211345

$12.99

3

NUT FLEX,(10)

7542703

Unavailable

4

WASHER THRUST(10)

7558702

$1.59

5

BOLT(10)

7512551

Unavailable

6

NUT-LOCK(10)

7542439

$1.49

6

NUT-LOCK(10)

7542439

$1.49

6

NUT-LOCK(10)

7542439

$1.49

6

NUT-LOCK(10)

7542439

$1.49

6

NUT-LOCK(10)

7542439

$1.49

7

BAR,SWAY,BLK,

5224742-067

Unavailable

8

BUSHING,SWAY BAR

5432038

$19.99

9

RIVET,(50)

7621477

$1.19

10

ARM,LH,STRG,BLK.

5241660-067

Unavailable

10

ARM,RH,STRG,BLK.

5241661-067

Unavailable

11

RIVET(50) Substituted by 7661130

7661643

Unavailable

12

WASHER(10)

7555721

$1.49

12

WASHER(10)

7555721

$1.49

13

TUBE, BUSHING

5010310

$9.70

14

PIVOT,TRLG.ARM,RUBBER

5410872

$10.99

15

BOLT(10)

7512557

$7.60

16

ARM,TRLG,LH,CRC. Substituted by 2201470 (Incl. 13,14)

1822517

Unavailable

16

ARM,TRLG,RH,CRC. Substituted by 2201471 (Incl. 13,14)

1822518

Unavailable

17

SLIDE,SWAYBAR,5/8

5432561

$24.27

18

STOP,LH,STRG,BLK

5241777-067

$15.08

18

STOP,RH,STRG,BLK.

5241778-067

$18.23

19

BUSHING-FLANGE

3573909

$2.39

20

WASHER SPECIAL(10)

7556509

$1.59

21

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

22

SHAFT,SPINDLE,TRLG,BLK

6230102-067

$294.99

23

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

24

COMP.SKIBLANK,W/RK SDL,BLK

1820610-070

Unavailable

25

NUT-5/16-18 NYLOK-Y

7542324

$1.49

26

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

27

KIT,SKAG,7/16,3",COMP.

2871815

Unavailable

28

WSHR-.813X.406X.105-Y

7555832

$2.39

28

WSHR-.813X.406X.105-Y

7555832

$2.39

28

WSHR-.813X.406X.105-Y

7555832

$2.39

28

WSHR-.813X.406X.105-Y

7555832

$2.39

28

WSHR-.813X.406X.105-Y

7555832

$2.39

29

SCREW,(10)

7512596

$19.99

30

BOLT(10)

7515514

$7.19

31

BOLT(10)

7515307

$3.99

32

NUT, FLEXLOC(10) Substituted by 7542411

7542452

Unavailable

33

NUT LOCK(10)

7542321

$1.49

34

TOE,PLASTIC SKI Substituted by 5432209-070

5432209

$40.46

35

PIN, COTTER(10) Substituted by 7661205

7661209

Unavailable

36

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

37

SUPPORT,SKI,RUBBER,BLK

5241912-067

Unavailable

38

RETAINER-SKI RUBBER Substituted by 5243824

5243127

$27.78

39

STOP,RUBBER

5411094

Unavailable

40

RETAINER,SPRING,BODY,THREADED

1500063

$44.51

41

RING,SPRING PRELOAD ADJ.

5431734

$52.60

42

SPRING,COMPRESSION

7041551-067

$74.99

43

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

44

SHOCK,GAS,IFS,SELECT

7041523

Unavailable

45

BUSHING,PIVOT,(10)

5010158

$19.99

46

ZERK,FITTING,THREADED(10)

7080433

$1.49

47

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

47

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

47

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

48

BOLT(10)

7515415

$1.49

48

BOLT(10)

7515415

$1.49

49

BUSHING-RADIUS ROD,(10)

5010127

$7.99

50

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

50

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

51

ROD,RAD,UPPER,BLK

1822375-067

Unavailable

52

ROD,RAD,LOWER,BLK

1822377-067

Unavailable

53

NUT-JAM(10)

7542711

$2.39

54

ROD END,1/2 LINED Substituted by 7061071

7061011

$48.56

55

BOLT(10)

7512684

Unavailable

56

RIVET(50)

7621452

$1.49

57

SUPPORT,PANBRAKE,LOW.

5240699-067

Unavailable

58

RIVET,INTERLOCK,B(50)

7661638

$1.49

59

NUT, LOCK,(10)

7542503

$10.39

60

ROD,END,7/16 LINED Substituted by 7061049

7061010

Unavailable

61

NUT JAM(10)

7542520

$2.39
