- Partiron
- OEM Parts
- Polaris
- SNOW
- SNO
- 1999
- XLT SP - 099AB6AS
FOX SHOCK - REAR TRACK - 099AB6AS (4948394839b014)

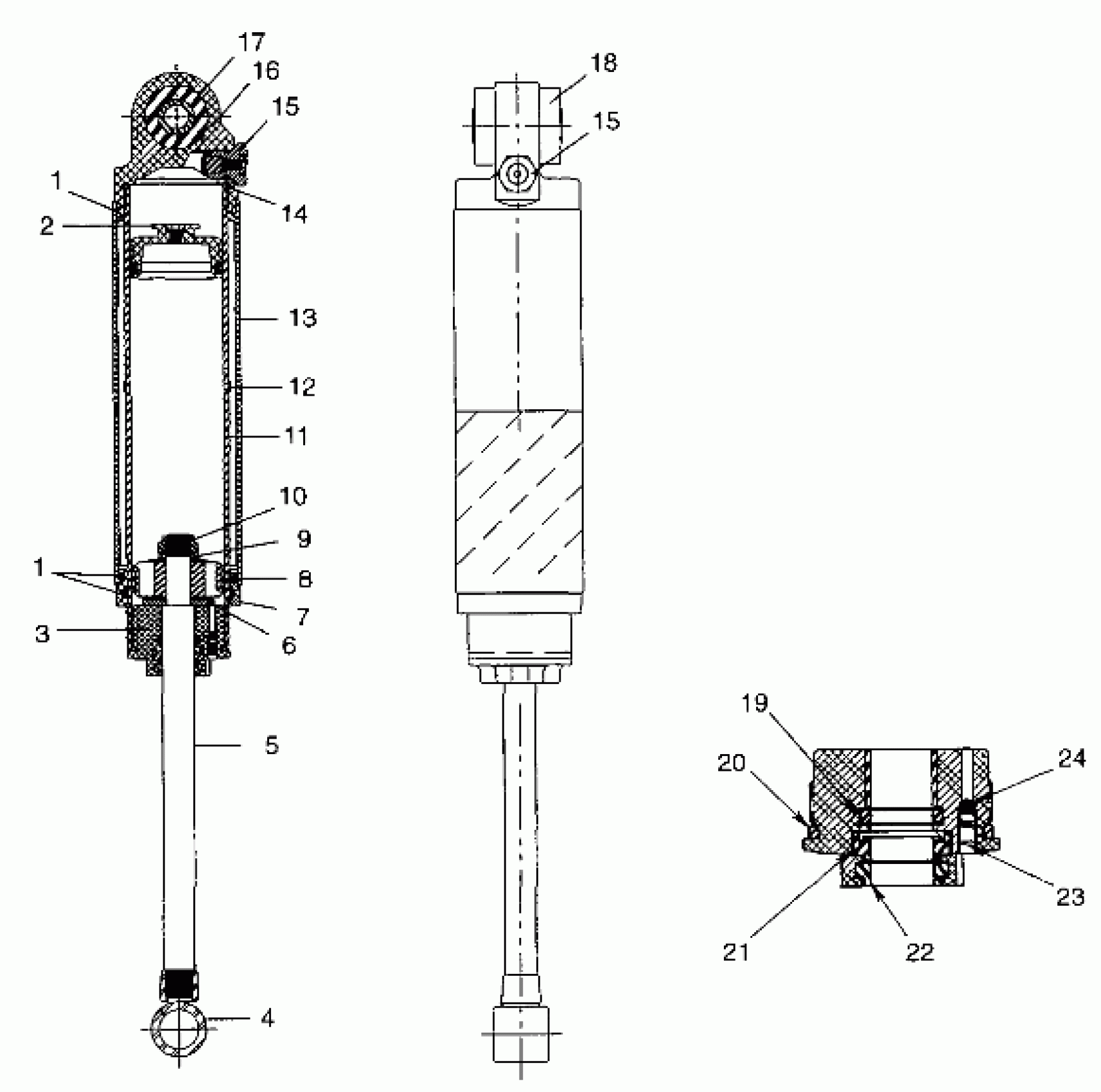

Polaris XLT SP - 099AB6AS FOX SHOCK - REAR TRACK - 099AB6AS (4948394839b014) Diagram
#
Description
Price
-
SHOCK-RR TRK,POS.SEN,X-10 FOX
7041728
Unavailable
1
O-RING
1500193
Unavailable
1
O-RING
1500193
Unavailable
2
Screw
1500018
$5.56
2
O-RING,DRUM OUTER
1500022
Unavailable
2
PISTON-FLOATING
1500187
$26.98
3
BEARING-ASSEMBLY
1500186
Unavailable
4
Eyelet
1500302
$49.21
5
SHAFT Substituted by 1500035
1500152
Unavailable
6
PLATE,TOP OUT
1500017
$20.22
7
COLLAR-ASM,POS.SENS.
1500191
$23.99
8
DAMPER,PISTONRING,FOX
1500002
$31.99
9
BUSHING,BACKUP
1500015
$6.76
10
NUT,LOCK
1500016
$12.79
11
SLEEVE-BY-PASS
1500192
Unavailable
12
BEARING-EXTERNAL BLUE RING
1500190
Unavailable
13
BODY-POSITION SENS.
1500188
Unavailable
14
O-RING,.103W-1.549ID
1500108
$10.99
15
VALVE ASM,AIR Substituted by 1500014
1500072
Unavailable
15
Screw
1500019
$6.39
15
O-RING,OUTER
1500023
$2.84
15
VALVE ASM,AIR Substituted by 1500014
1500072
Unavailable
15
Screw
1500019
$6.39
15
O-RING,OUTER
1500023
$2.84
16
BODY CAP,POS.SENS.
1500189
$53.17
17
BUSHING, 1.40
5020657
$15.99
18
BUSHING,SHAFT END Substituted by 5431540
5432040
$24.99
19
O-RING INNER (10)
1500021
$10.99
20
O-RING,(10).103W-1.299ID
1500020
$10.63
21
WIPER INNER Substituted by 1500266
1500025
$24.27
22
WIPER,CLR,OUTER
1500024
Unavailable
23
Screw
1500070
$6.39
24
BALL, (FOX)
1500071
$6.76
