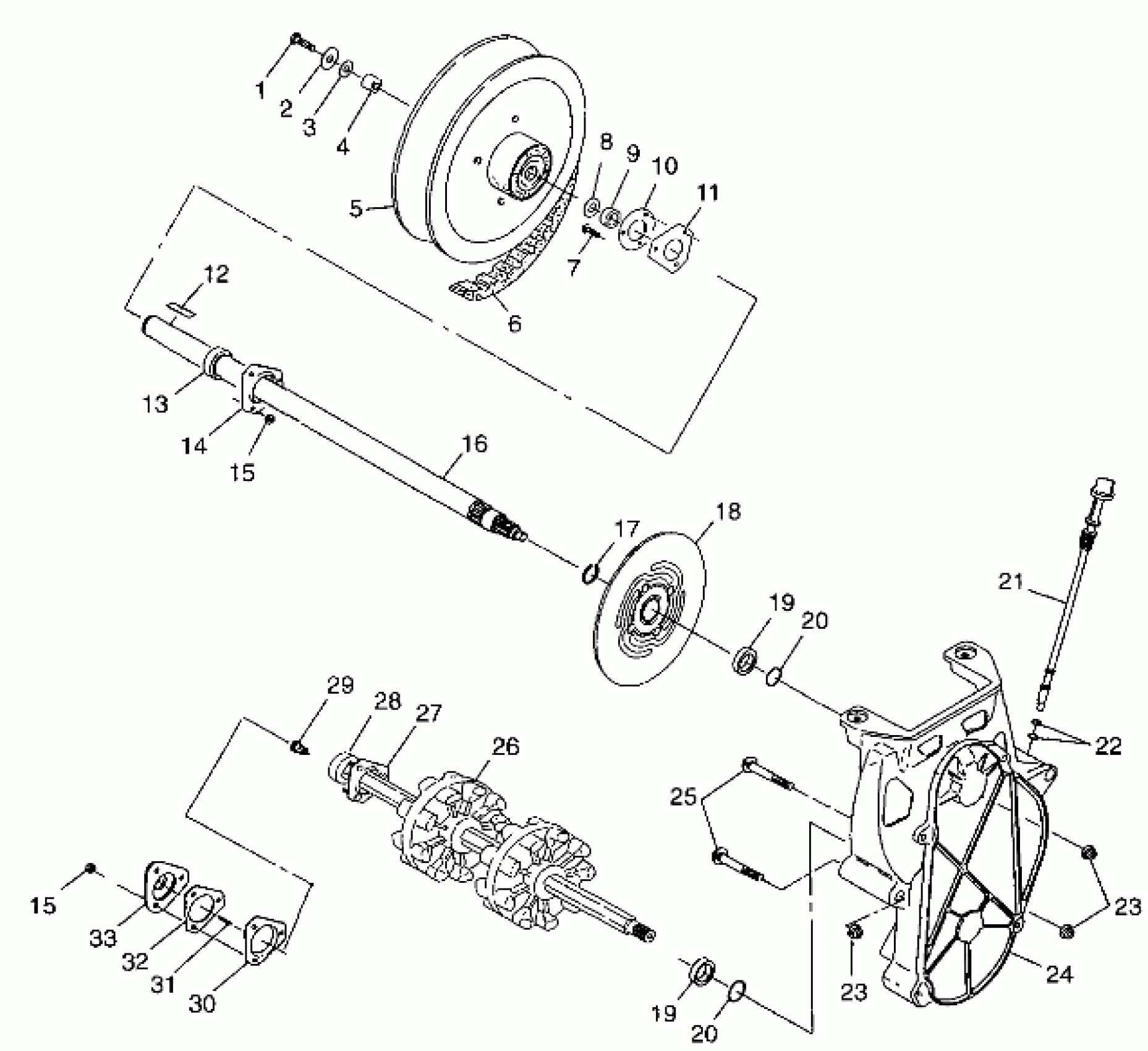

Polaris XLT SP - 099AB6AS DRIVE TRAIN - 099AB6AS (4948394839b009) Diagram
#
Description
Price
1
BOLT(10)
7515369
$4.79
2
WASHER FLAT(10)
7555701
$3.99
3
WASHER(10)
7555734
Unavailable
4
Spacer
5020913
Unavailable
5
Driven Clutch, 36 Degree Adj. (See Driven Clutch Page, Ref. 16)
-------
Unavailable
6
BELT,DRIVE,28 DEG.(5)
3211070
$114.99
7
BOLT(10)
7512377
$4.79
8
WASHER SPECIAL(10)
7556509
Unavailable
9
Spacer
5020837
$24.99
10
FLANGE RD,RELUBE W/ZERK
5241359
$32.37
11
GASKET,JACKSHAFT,BLK.
5811095
$2.41
12
KEY(10)
7721116
$12.94
13
BEARING
3514525
$31.99
14
FLANGETTE
5222751
$16.44
15
NUT-5/16-18 NYLOK-Y
7542324
$1.49
15
NUT-5/16-18 NYLOK-Y
7542324
$1.49
16
JACKSHAFT ASM,15 SPL (Incl. 13,17)
1332207
Unavailable
17
RING, RETAINING(10)
7710422
$3.99
18
DISC ASM,BRAKE,SLOTTED,SNO Substituted by 1910403
1910276
Unavailable
19
SLEEVE, SEAL
5020588
$23.99
19
SLEEVE, SEAL
5020588
$23.99
20
O RING,(10)
5410613
$1.99
20
O RING,(10)
5410613
$1.99
21
DIPSTICK Substituted by 1332143
5431419
Unavailable
22
O-RING
5410675
$1.60
23
NUT(10)
7542423
$3.99
23
NUT(10)
7542423
$3.99
24
Cover, Chaincase, Cast (See Chaincase Page, Ref. 12)
-------
Unavailable
25
BOLT(10)
7515428
$4.79
26
DRIVESHAFT ASM,2DR WIDE,XHS Substituted by 1590284 (Incl. 27,28,29)
1590269
Unavailable
27
FLANGETTE ASM,,W/ SCREWS Substituted by 1012945
1012434
Unavailable
28
BEARING,LUBE. Substituted by 3514525
3514526
$31.75
29
BUSHING METAL SPEEDO
3280019
$11.99
30
FLANGETTE Substituted by 5243529
5241178
$13.75
31
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
32
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
33
ADAPTER,DRIVE,W/ZERK
3280116
$101.17
