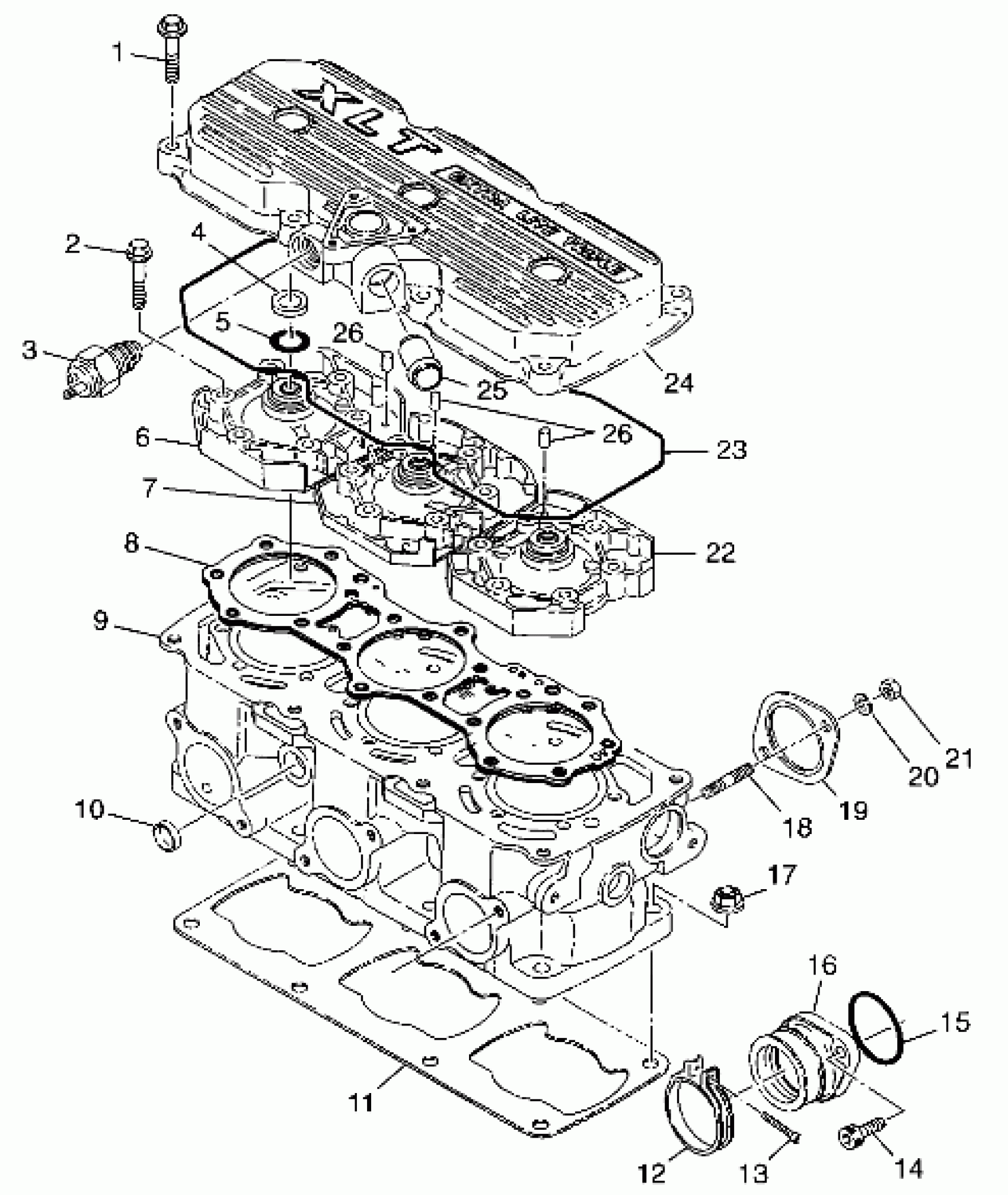

Polaris XLT SP - 099AB6AS CYLINDER - 099AB6AS (4948394839c009) Diagram
#
Description
Price
1
Bolt, Flange
3084437
Unavailable
2
BOLT, FLANGE ,(10)
3084435
Unavailable
3
SWITCH,THERMO. (1055 C)
3086101
Unavailable
4
SPACER
3084722
Unavailable
5
O RING
3085192
Unavailable
6
HEAD,CYL.#3,PTO (PTO)
3085419
$95.13
7
HEAD,CYL.#2,CTR. (Center)
3085418
Unavailable
8
GASKET,HEAD
3085613
Unavailable
9
CYLINDER (Incl. 10,18)
3086099
$734.99
10
PLUG
3084428
$3.51
11
GASKET, CYLINDER
3084593
Unavailable
12
BAND ASM. (Incl. 13)
3083166
$19.84
13
SCREW,(10)
3081497
$2.39
14
Bolt, Allen
3081330
$3.99
15
O-RING
3085619
$20.22
16
ADAPTER (Incl. 15)
3086102
Unavailable
17
NUT-FLANGE(10)
3082911
$1.99
18
STUD,(10)
3085326
Unavailable
19
GASKET,EXHAUST,NA(10) Substituted by 3086757
3084439
Unavailable
20
WASHER LOCK ,(10)
3080530
$3.19
21
NUT(10)
3080285
Unavailable
22
HEAD,CYL.#1,MAG. (MAG)
3085417
Unavailable
23
O-RING, (HEADCOVER)
3084434
Unavailable
24
COVER,HEAD (Incl. 25)
3086100
$206.65
25
Pipe, Water
3083452
Unavailable
26
PIN, DOWEL
3084721
$4.79
26
PIN, DOWEL
3084721
$4.79
