COOLING SYSTEM - 099AB6AS (4948394839c001)

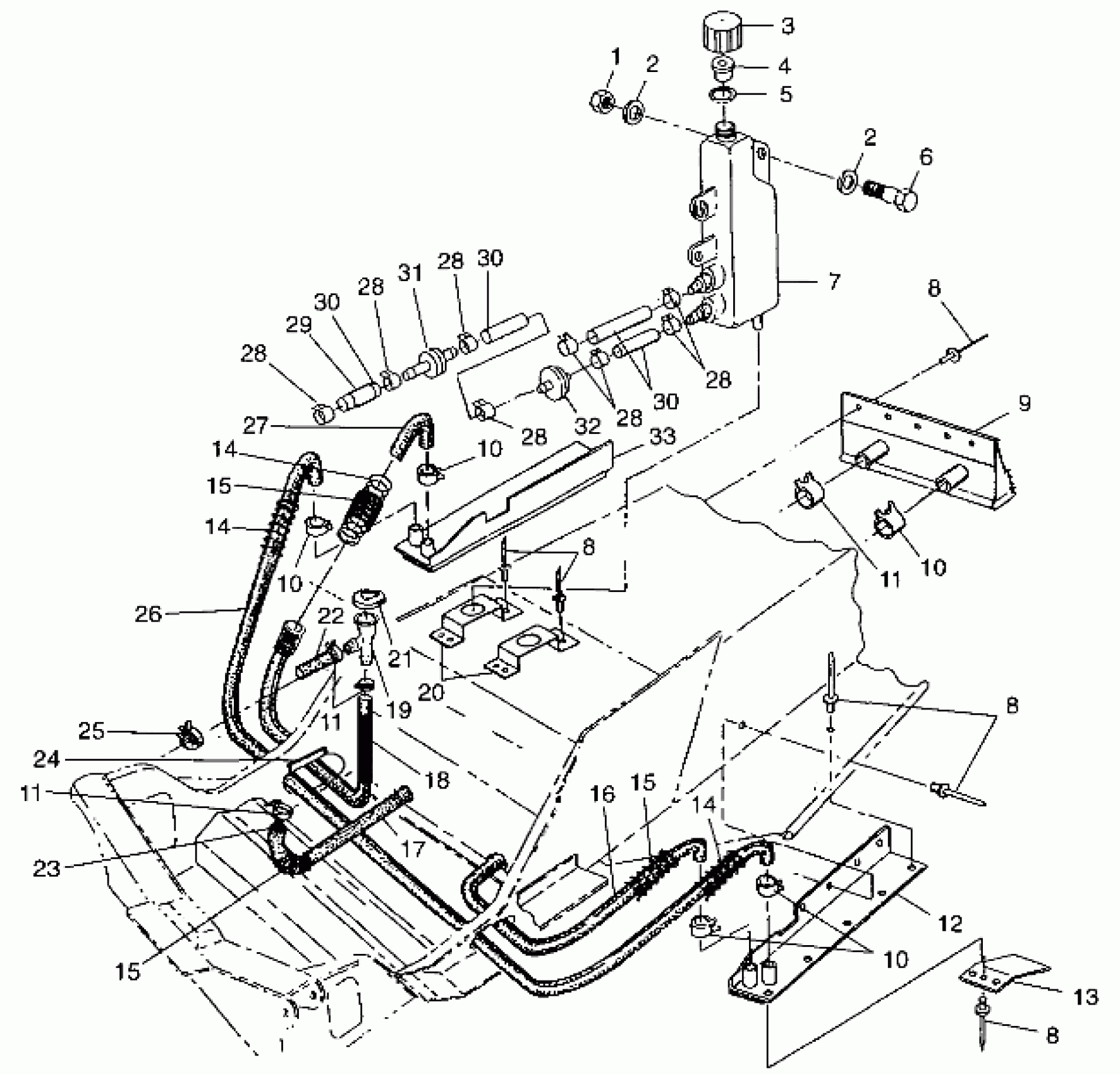

Polaris XLT SP - 099AB6AS COOLING SYSTEM - 099AB6AS (4948394839c001) Diagram
#
1
NUT-LOCK(10)
7542122
$1.49
2
WASHER,WROUGHT(10)
7558302
$1.59
2
WASHER,WROUGHT(10)
7558302
$1.59
3
CAP-OVER FLOW BOTTLE,DRILLED
5430743
$5.65
4
PLUG, OVERFLOW,(10)
5431096
$2.02
5
GASKET-OVERFLOW CAP
5810279
$2.41
6
BOLT(10)
7512240
$3.99
7
BOTTLE,O'FLOW,W/FITTING
5431733
$36.41
8
RIVET,INTERLOCK,B(50)
7661638
$1.49
8
RIVET,INTERLOCK,B(50)
7661638
$1.49
8
RIVET,INTERLOCK,B(50)
7661638
$1.49
8
RIVET,INTERLOCK,B(50)
7661638
$1.49
9
EXCHANGER,COOL.CTR.
2511239
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
11
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
11
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
11
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
12
COOLER,LH,SIDE(XTRA 10) Substituted by 1240059
2511257
$144.99
13
GUARD, COOL.EXT.
5222863
$32.99
14
SPRING,HOSE RETAINER
7041079
$4.95
14
SPRING,HOSE RETAINER
7041079
$4.95
14
SPRING,HOSE RETAINER
7041079
$4.95
15
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
15
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
15
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
16
HOSE-CROSSOVER
5410350
Unavailable
17
HOSE, CENTER
5410673
Unavailable
18
TUBING,CONVOL,8"X1"
5411396
$9.70
19
FILLER,REMOTE COOLANT Substituted by 5433364
5431931
Unavailable
20
BRKT,OILTANK,COINED
5241334
$9.70
21
CAP,PRESS.(19-21 LB.)
2511256
Unavailable
22
HOSE,ENG.OUT/FILLER
5411010
$24.27
23
SPRING,HOSE RETAINER
7042041
Unavailable
24
EDGE TRIM - BLACK Substituted by 5521131
8360012
Unavailable
25
CLAMP,HOSE,BLK,29MM.(10) Substituted by 7080842
7080563
Unavailable
26
HOSE,CROSSOVER
5410557
Unavailable
27
HOSE,RH,FILLER OUT,EXTRUSION
5411011
Unavailable
28
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
28
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
28
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
28
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
28
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
28
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
29
TAPE,FOIL,1.50 X 7.50
5810831
Unavailable
30
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
30
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
30
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
31
VALVE, CHECK
7052038
$10.51
32
FILTER,COOLANT,LGE.
2530024
Unavailable
33
COOLER,RH,SIDE(XTRA 10)
2511258
$227.99
