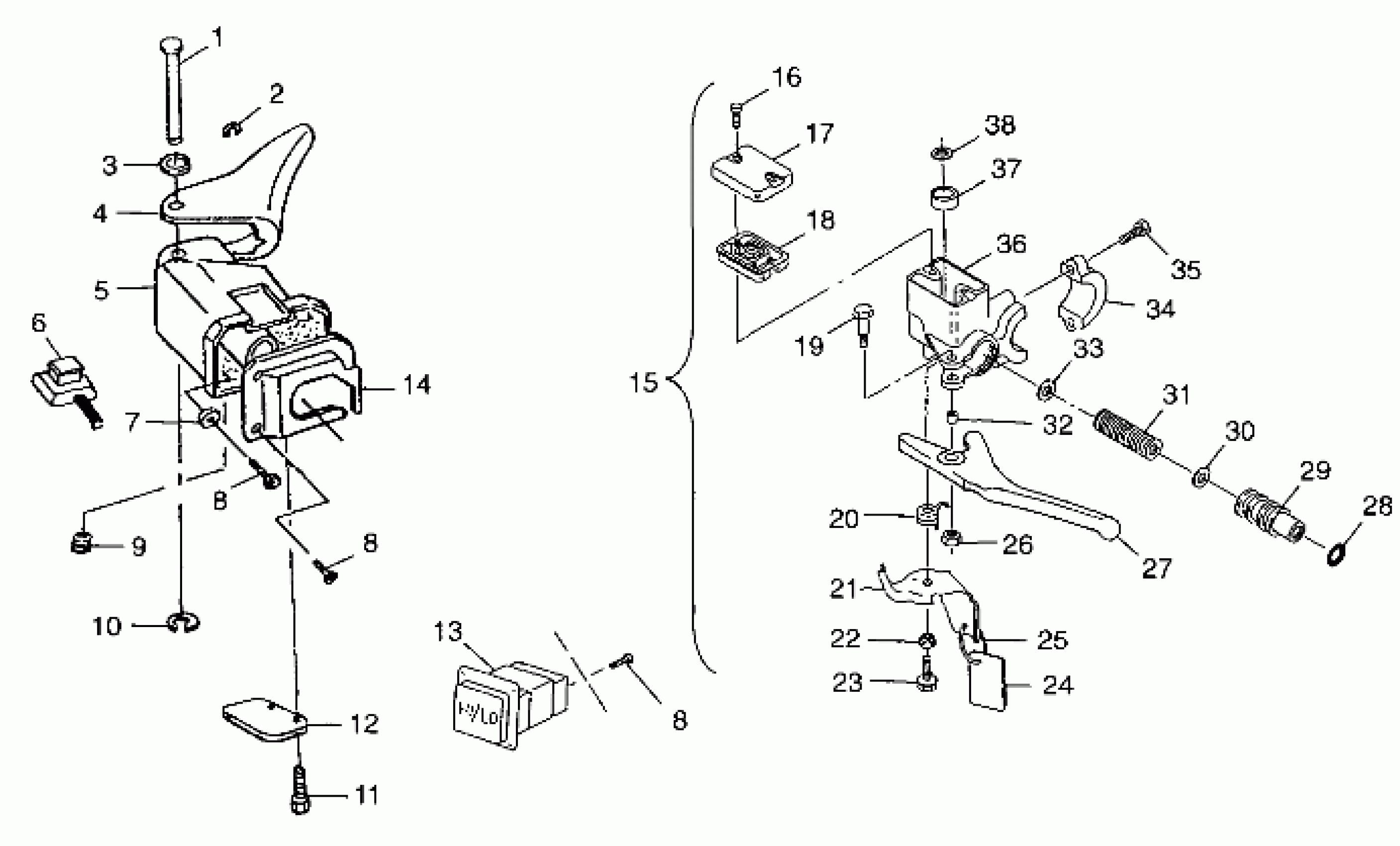

Polaris XLT SP - 099AB6AS CONTROLS - 099AB6AS (4948394839b004) Diagram
#
Description
Price
1
PIN-RETAINING .186X1.780-AL
7661624
$12.79
2
RET.RING-INDUSTRIAL(2000-25)-Z
7710503
$3.99
3
WASHER(10)
7555730
$3.99
4
THROTLE,LEVER,35.5MM
5432970
$29.03
4
LEVER,HTR,35.5 MM
2010180
Unavailable
5
BLOCK,THROTTLE/BRAKE
5431592
$49.99
6
SWITCH,AUX.SHUT-OFF
4110106
$94.99
7
RIVET BURR(50)
7555727
$1.49
8
SCREW-SEMS(10)
7511848
$3.99
8
SCREW-SEMS(10)
7511848
$3.99
8
SCREW-SEMS(10)
7511848
$3.99
9
SCREW(10)
7512465
$3.99
10
RING-RETAINING EXTERNAL
7710401
$3.99
11
SCREW(10)
7511858
$3.99
12
HOLDER-WIRE
5432261
$24.27
13
SWITCH, DIMMER
4110136
Unavailable
14
BLOCK-ADAPTER
5430604
$13.75
15
MASTER CYL.ASM,3/4",SNOW (Incl. 16-19,26-38)
2050083
Unavailable
16
SCREW,W/WASHER(10)
7512050
$3.99
17
COVER,MASTER CYL.
5630338
Unavailable
18
GASKET,MASTER CYL.
5410527
$8.99
19
BOLT,BRAKE LEVER(10)
7512287
Unavailable
20
SPRING,PK.BRAKE
7041229
$32.37
21
LEVER,PARK.BRAKE
5240809
Unavailable
22
BUSHING,PK.BRAKE LEVER
5020670
Unavailable
23
SCREW(10)
7511866
$4.79
24
TAG,PARK.BRAKE
5431389
Unavailable
25
STRAP,PARK.BRAKE TAG
7080447
Unavailable
26
NUT-LOCK(10)
7542122
$1.49
27
LEVER,BRAKE
5630847
Unavailable
28
O RING
5410163
$1.60
29
PISTON,MASTER CYL.
5020679
Unavailable
30
U PACKING SEAL
5410164
Unavailable
31
SPRING, MASTERCYL.
7041311
Unavailable
32
BUSHING,BRAKE LEVER
5332931
Unavailable
33
WASHER(10)
7555708
$3.99
34
CLAMP, MASTER CYL.
5630342
Unavailable
35
BOLT,SOCKET HEAD(10)
7512290
$4.79
36
HOUSING,MASTERCYL.
5130955
$293.65
37
BAFFLE,MASTER CYL.
1930673
Unavailable
38
WASHER, BAFFLE(10)
1930662
Unavailable
