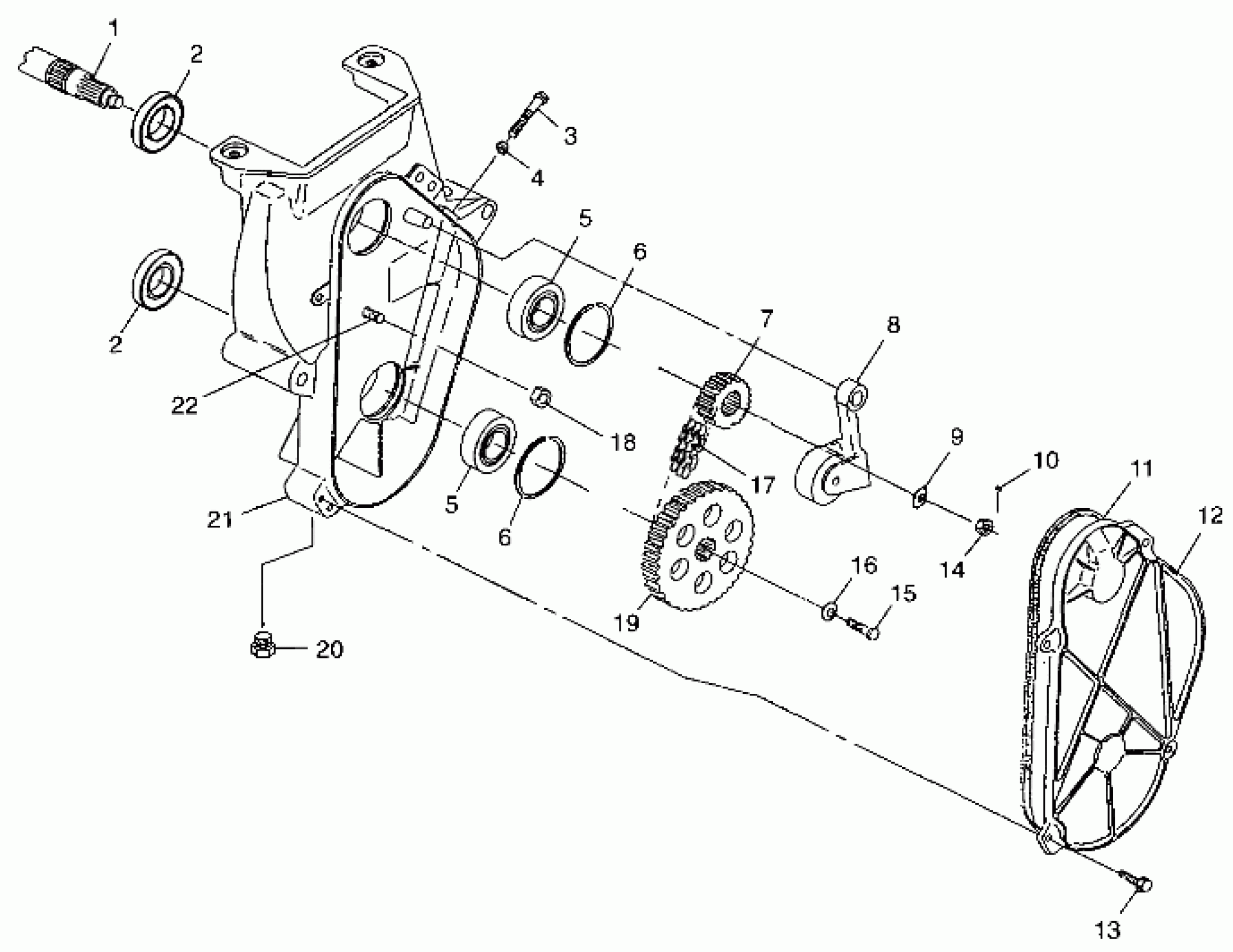

Polaris XLT SP - 099AB6AS CHAINCASE - 099AB6AS (4948394839b008) Diagram

#

Description
Price

1

Jackshaft (See Drive Train Page, Ref. 16)

-------

Unavailable

2

SEAL-OIL

3610030

$20.22

2

SEAL-OIL

3610030

$20.22

3

SCREW(10)

7515551

$6.39

4

NUT(10)

7542404

$1.59

5

BEARING,BALL

3514309

$15.87

5

BEARING,BALL

3514309

$15.87

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

7

SPKT,22T,3/4W,15 SPL,HV,PM

3221098

$49.99

8

PIN,CHAIN TIGHTENER

7662210

Unavailable

8

TIGHTENER ASM,GEARCASE Substituted by 1332213

1332096

$159.99

8

BEARING

3553002

$11.99

8

BLOCK,TIGHTENER [No Longer Available]

5630122

Unavailable

8

WHEEL,C/C IDLER

5630123

Unavailable

8

WASHER THRUST(10)

7558702

$1.59

9

WASHER, SLOTTED(10)

7571620

$7.19

10

COTTER PIN(10)

7661401

$1.49

11

GASKET-CHAINCASE

5410277

$24.99

12

COVER, CHAINCASE Substituted by 5630968

5630413

Unavailable

13

SCREW(10)

7512242

$2.39

14

NUT

7542811

Unavailable

15

SCREW(10)

7515350

$3.97

16

WASHER(10)

7571618

$6.39

17

CHAIN,68P,3/4W,HYVO Substituted by 3221112

3224070

Unavailable

18

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

19

SPKT,41T,15T SPL,HYVO,PM

3222101

$40.46

20

PLUG(10)

7052115

$5.65

21

CHAINCASE-W/RATCHET MNT

5131568

Unavailable

22

BOLT(10)

7515477

$34.99
