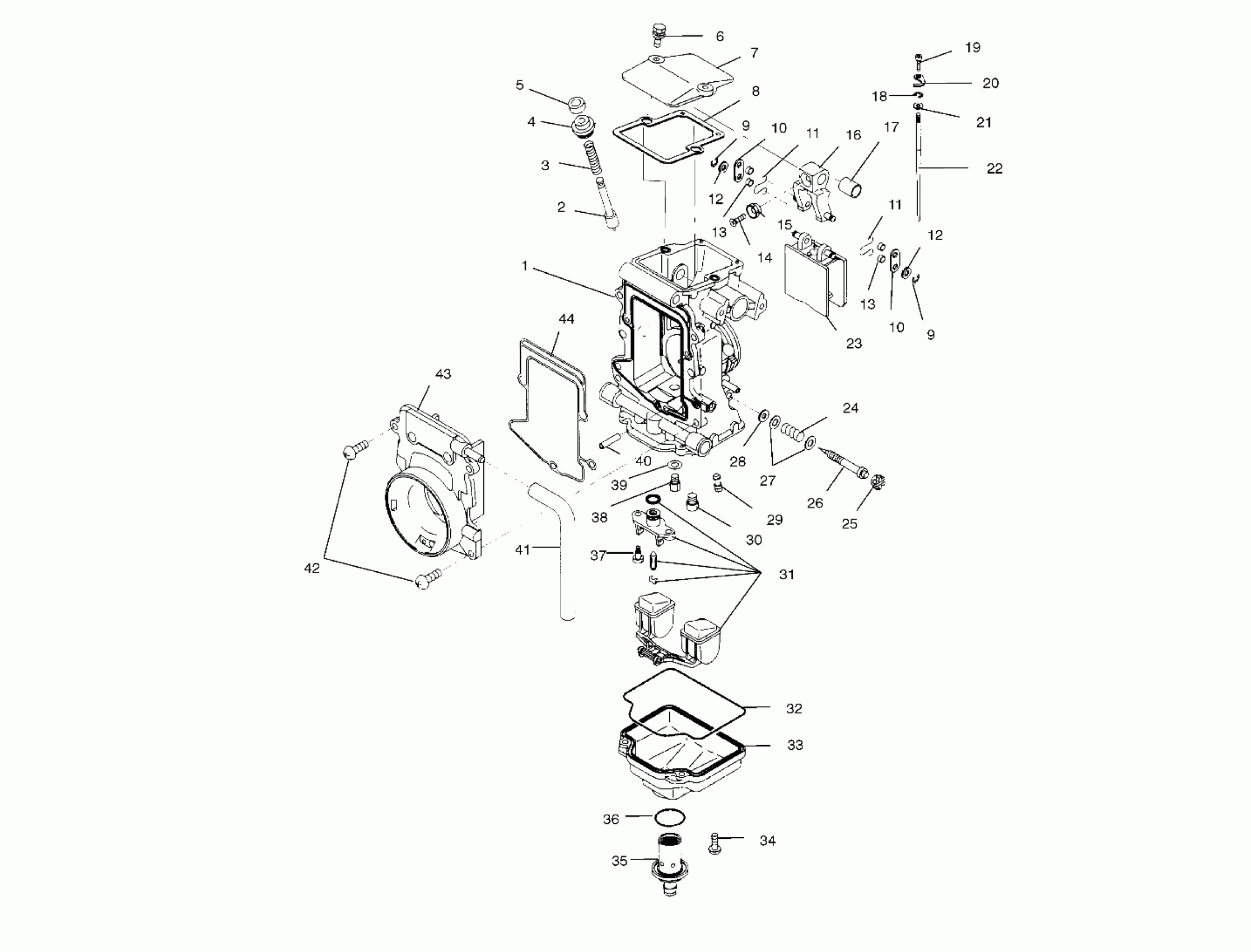

Polaris XLT SP - 099AB6AS CARBURETOR - 099AB6AS (4948394839c013) Diagram
#
1
Asm., Mixing Body (See Carburetor Pg. C12, Ref. 21)
-------
Unavailable
2
PLUNGER ASM./258
3130828
$32.37
3
SPRING,STARTER
3130829
$12.94
4
HOLDER,STARTER GUIDE
3130830
$32.37
5
CAP,STARTER,(RUBBER)
3130831
$7.27
6
Screw
3130951
$3.99
7
CAP-TOP
3130976
$50.99
8
Gasket
3130871
$20.22
9
E-RING Substituted by 3130847
3130980
Unavailable
9
E-RING Substituted by 3130847
3130980
Unavailable
10
Plate
3130857
$7.27
10
Plate
3130857
$7.27
11
Clip
3130856
$8.79
11
Clip
3130856
$8.79
12
WASHER Substituted by 3130846
3130981
Unavailable
12
WASHER Substituted by 3130846
3130981
Unavailable
13
Ring
3130845
$8.89
13
Ring
3130845
$8.89
14
SCREW (PTO Side)
3130854
$3.19
14
SCREW (Center and MAG Side)
3130850
$4.79
15
RING (Center and MAG Side)
3130848
$32.37
16
LEVER ASM. (PTO Side)
3130855
$64.75
16
LEVER ASM. (Center and MAG Side)
3130849
$64.75
17
RING (PTO Side Only)
3140032
Unavailable
18
E-Ring
3130868
$8.89
19
Screw
3130844
$3.99
20
Plate
3130843
$8.89
21
PACKING Substituted by 3130867
3130974
Unavailable
22
NEEDLE-JET (9DH3-54-4)
3130972
Unavailable
23
VALVE,PISTON,ASM. Substituted by 3130791
3130973
Unavailable
24
SPRING
3130836
$7.27
25
Cap
3130986
$9.70
26
Adjuster
3130987
$20.22
27
Washer
3130837
$3.19
28
Packing
3130835
$2.41
29
JET,PILOT,#35(10) (#35)
3130066
$8.89
30
JET,STARTER,#VM11/22-155 (#155)
3130771
Unavailable
31
FLOAT,ASM. Substituted by 3130859
3130977
Unavailable
32
O-RING,FLOAT BOWL
3130861
$12.13
33
FLOAT,BODY
3130858
$119.99
34
SCREW,FLOAT BOWL
3130824
$3.19
35
NIPPLE,DRAIN SCREW
3130862
Unavailable
36
O-RING,DRAIN SCREW
3130863
$2.41
37
SCREW,VALVE SEAT
3130860
$8.79
38
JET,MAIN,HX.HD#360(10) (#360)
3130139
$7.99
39
Washer
3130949
$3.99
40
JET Substituted by 3131257
3130993
$20.22
41
HOSE
3130994
Unavailable
42
SCREW,AIR FUNNEL
3130825
$3.19
43
FUNNEL
3130975
$53.59
44
O-RING,AIR FUNNEL
3130870
$24.27
