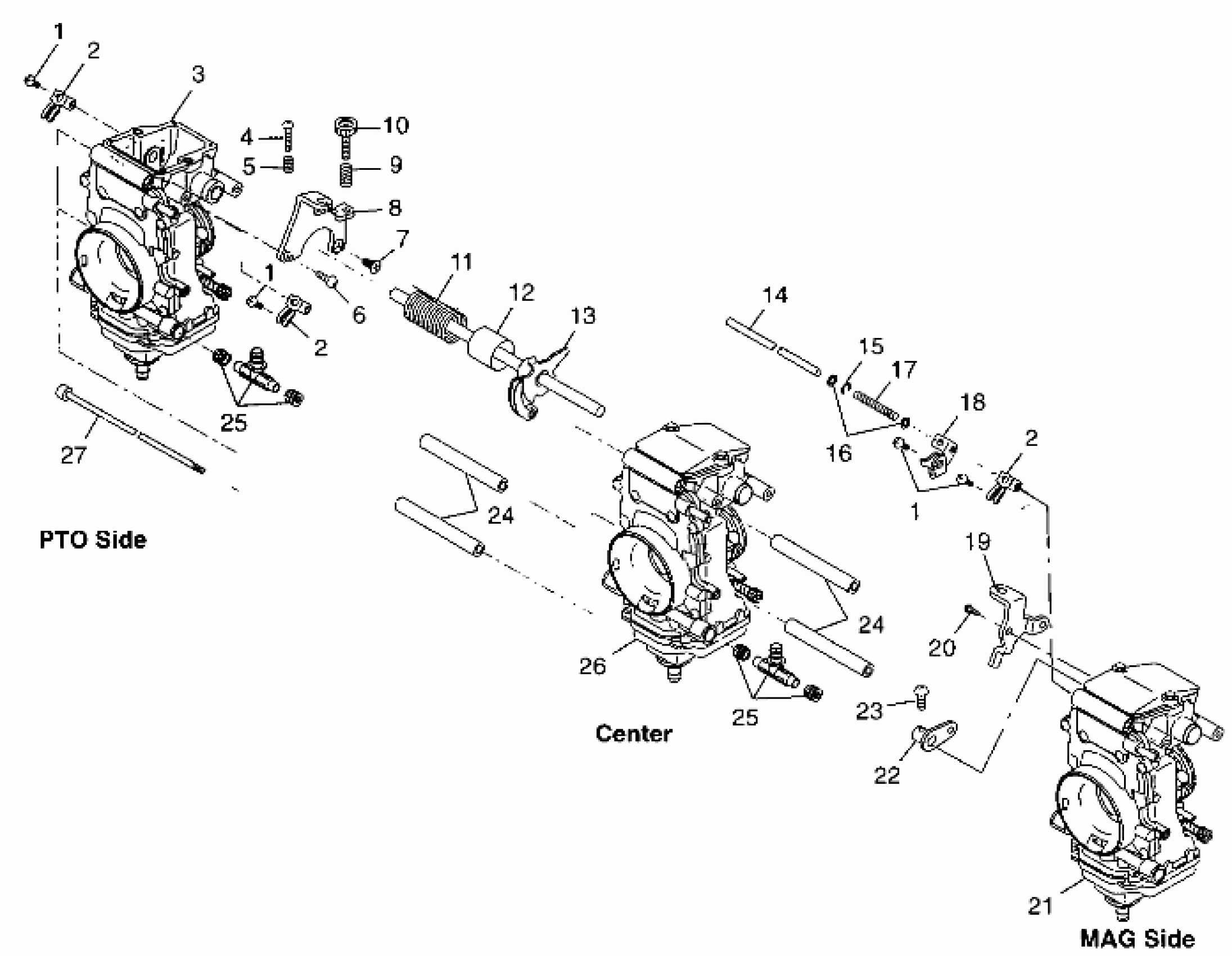

Polaris XLT SP - 099AB6AS CARBURETOR - 099AB6AS (4948394839c012) Diagram

#

Description
Price

-

CARB,ASM.

3130968

Unavailable

1

SCREW,STARTER

3130833

$3.99

1

SCREW,STARTER

3130833

$3.99

2

LEVER,STARTER

3130832

$24.27

2

LEVER,STARTER

3130832

$24.27

2

LEVER,STARTER

3130832

$24.27

3

BODY,MIXING,ASM. [No Longer Available]

3130969

Unavailable

4

Screw

3130816

$6.39

5

Spring

3130817

$6.46

6

Screw

3130809

$3.19

7

Screw

3130810

$3.19

8

Bracket

3130815

$29.75

9

Spring

3130811

$7.99

10

Adjuster

3130812

$20.22

11

Spring

3130814

Unavailable

12

Ring

3130853

$7.27

13

SHAFT,ASM.

3130982

Unavailable

14

SHAFT

3130989

Unavailable

15

E-RING Substituted by 3130839

3130990

Unavailable

16

PACKING Substituted by 3130842

3130988

Unavailable

17

SPRING,STARTER SHAFT

3130841

$7.27

18

LEVER,STARTER

3130819

$32.37

19

BRACKET

3130985

Unavailable

20

Screw

3130821

$7.19

21

BODY,MIXING,ASM. [No Longer Available]

3130971

Unavailable

22

LEVER ASM.

3130992

Unavailable

23

Screw

3130991

$5.43

24

RING

3130978

$12.39

24

RING

3130978

$12.39

25

NIPPLE ASM.

3130984

Unavailable

25

NIPPLE ASM.

3130984

Unavailable

26

BODY,MIXING,ASM. [No Longer Available]

3130970

Unavailable

27

BOLT

3130983

Unavailable
