SEAT and GAS TANK XLT SP 0966676 and EUROPEAN XLT SP E966676 (4931703170A007)

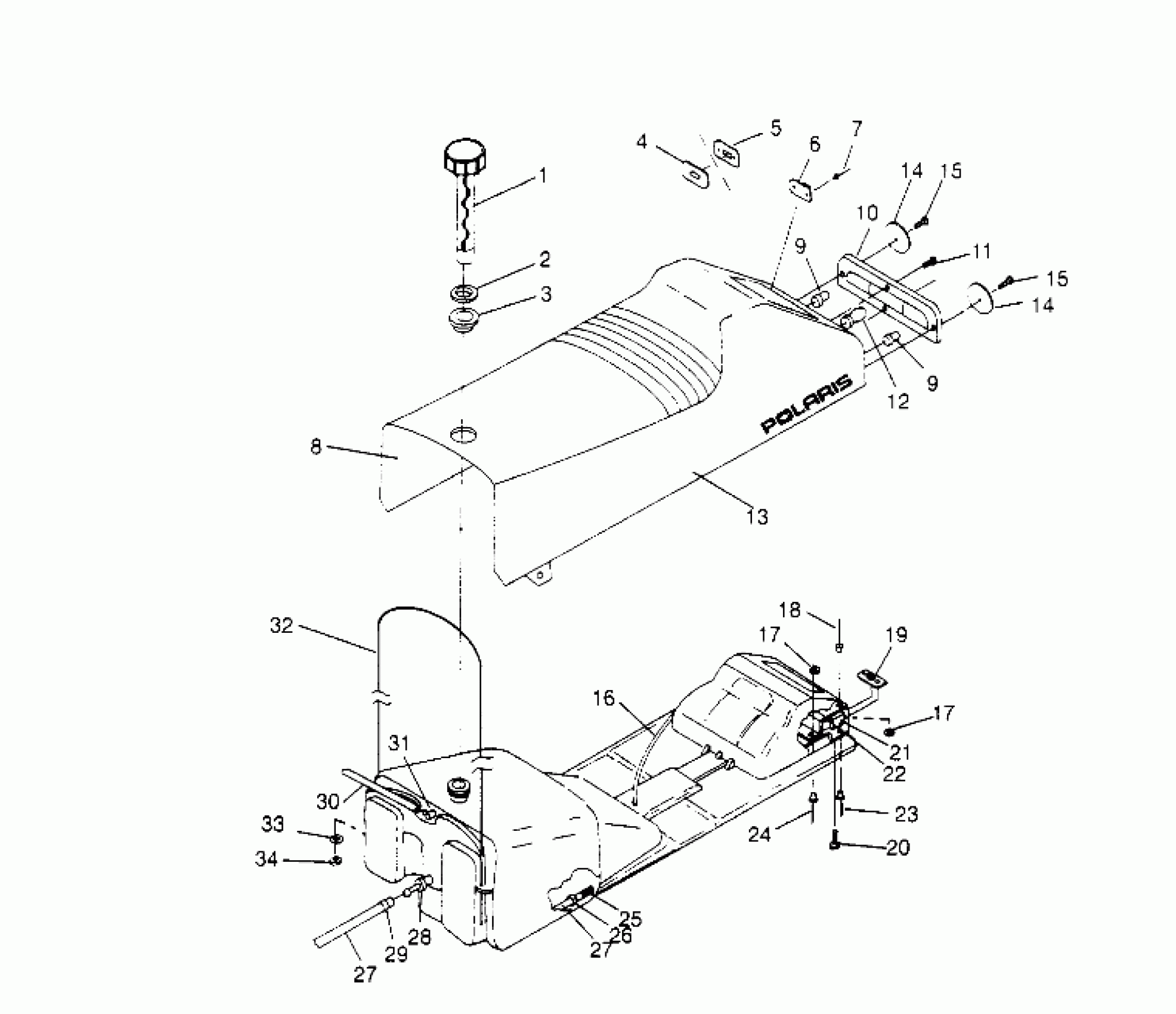

Polaris XLT SP - 0966676 SEAT and GAS TANK XLT SP 0966676 and EUROPEAN XLT SP E966676 (4931703170A007) Diagram
#
1
CAP,GAS,W/GAUGE
2511248
$44.51
2
GASKET, GAS CAP
5810513
$8.89
3
GROMMET,FUELTANK
5410842
Unavailable
4
GROMMET,RELATCH,1",BOTT.(10)
7080550
Unavailable
5
GROMMET,RELATCH,1",TOP(10)
7080549
Unavailable
6
TWISTLOCK,RELATCH,1",W/HOLE(10)
7080548
Unavailable
7
RIVET(50)
7621339
$1.49
8
CUSHION ASM,SEAT,LONG (Incl. 4-7, 9-27, 28, 31, 32)
2681841
Unavailable
9
BULB,TAILLIGHT(10)
4030024
$4.84
9
BULB,TAILLIGHT(10)
4030024
$4.84
10
LENS,TAILLIGHT
5430423
Unavailable
11
SCREW(10)
7511840
Unavailable
12
Bulb, Brakelight
4030045
Unavailable
13
COVER,SEAT,LONG
2681842
Unavailable
14
REFLECTOR (EURO Only)
5430781
Unavailable
14
REFLECTOR (EURO Only)
5430781
Unavailable
15
SCREW(10) (EURO Only)
7511856
Unavailable
15
SCREW(10) (EURO Only)
7511856
Unavailable
16
HARNESS,TAILLIGHT
2460398
Unavailable
17
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
17
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
18
RIVET, BLIND(50)
7621467
$1.49
19
NUT,RETAINER-WELD.(10)
7542147
$17.59
20
SCREW(10)
7512242
$2.39
21
HOUSING,TAILLIGHT Substituted by 5433341
5431545
Unavailable
22
COVER,T/L PROTECTOR
5431436
$21.43
23
RIVET(50)
7621301
$3.99
24
RIVET(50)
7621460
$1.49
25
FUELPICKUP,W/STRAINER
7052037
$12.94
26
RING, COMPRESSION(10)
7080402
$1.60
27
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
27
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
28
FITTING - OUTLET(10)
7052023
$24.99
29
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
30
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
31
FITTING,90 DEG,1/8,(10)
7052095
$4.79
32
CABLE,TANK,RETENTION
7080559
Unavailable
33
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
34
NUT(10)
7541925
$1.49
