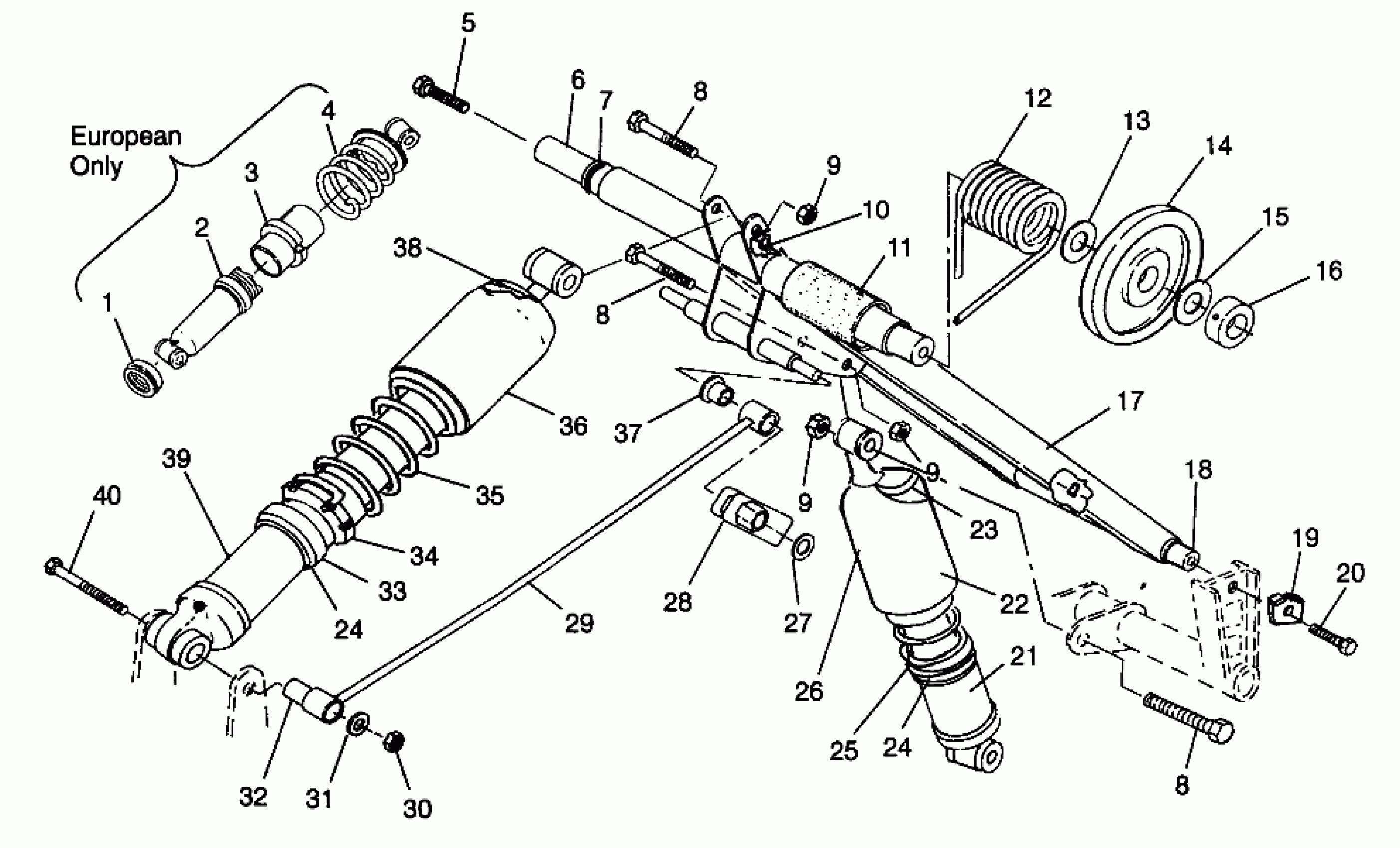

Polaris XLT SP - 0966676 REAR TORQUE ARM XLT SP 0966676 and EUROPEAN XLT SP E966676 (4931703170B013) Diagram

#

Description
Price

1

GUIDE,ADAPTER NUT (Euro)

5131276

Unavailable

2

RETAINER,SPRING,HVY BODY (Euro)

1500091

$27.83

3

ADAPTER,NUT,SPRING-RET. Substituted by 2871439 (Euro)

5131274

Unavailable

4

SPRING,COMP,190#,BLK (Euro)

7041491-067

Unavailable

5

BOLT(10)

7512589

$1.59

6

SHAFT,RTA,UPPER

5020814

Unavailable

6

SHAFT,UP,R.TORQUE ARM

5020782

$59.03

7

O-RING

5410952

Unavailable

8

BOLT Substituted by 7515491

7515433

$1.59

8

BOLT Substituted by 7515491

7515433

$1.59

8

BOLT Substituted by 7515491

7515433

$1.59

9

NUT LOCK(10)

7542411

$3.19

9

NUT LOCK(10)

7542411

$3.19

9

NUT LOCK(10)

7542411

$3.19

10

ZERK,FITTING,THREADED(10)

7080433

$1.49

11

SLEEVE,TORSION SPRING

5431923

$6.39

12

SPRING,RH,TORSION,BLK. (Std.)

7041395-067

Unavailable

12

SPRING,LH,TORS,.421,BLK. (Firm)

7041406-067

$95.19

12

SPRING,RH,TORS,.421,BLK. (Firm)

7041407-067

Unavailable

12

SPRING,LH,TORSION,BLK. (Std.)

7041394-067

Unavailable

13

WASHER, THRUST(10) Substituted by 7555871

7555787

Unavailable

14

Wheel, Carrier

1543023

Unavailable

15

WASHER, THRUST(10) Substituted by 7555871

7555862

$5.56

16

SCREW-SET(10)

7512257

$3.99

16

COLLAR-BRG. LOCK

5010155

Unavailable

17

ARM,R.TORQUE Substituted by 1541029-067

1540970-067

Unavailable

18

SHAFT,LOW,RR,TORQUE

5020843

Unavailable

19

LOCK,BOLT,MECHANICAL

5211649

Unavailable

20

BOLT(10)

7515526

$1.19

21

Fox Shock, Gas - Rear (See Pg. for Details)

-------

Unavailable

22

SPRING,BLACK,COMP.

7041253-067

$95.22

23

RETAINER,SPRING,SLOTTED

5020618

$24.99

24

RING, RETAINING(10)

7710424

$0.63

24

RING, RETAINING(10)

7710424

$0.63

25

RETAINER, SPRING BODY

5020617

Unavailable

26

SHIELD-SPRING

5430671

$24.27

27

CLIP-PUSH ON

7080394

$2.39

28

ROLLER,SPRING,ADJ.

5431909

$5.75

29

ROD, SHOCK

1541014-067

$92.99

30

NUT LOCK(10)

7542411

$3.19

31

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

32

Spacer

5333028

$1.59

33

RETAINER,SPRING,BODY,THREADED

1500063

$44.51

34

RING,SPRING PRELOAD ADJ.

5431734

$52.60

35

SPRING,R.SUSP,BLK,LXC

7041351-067

Unavailable

36

SHIELD,SPRING

5410874

$20.22

37

BUSHING, NYLON

3573910

Unavailable

39

Fox Shock, Gas - Front Track (See Pg. for Details)

-------

Unavailable

40

BOLT(10)

7515514

$7.19
