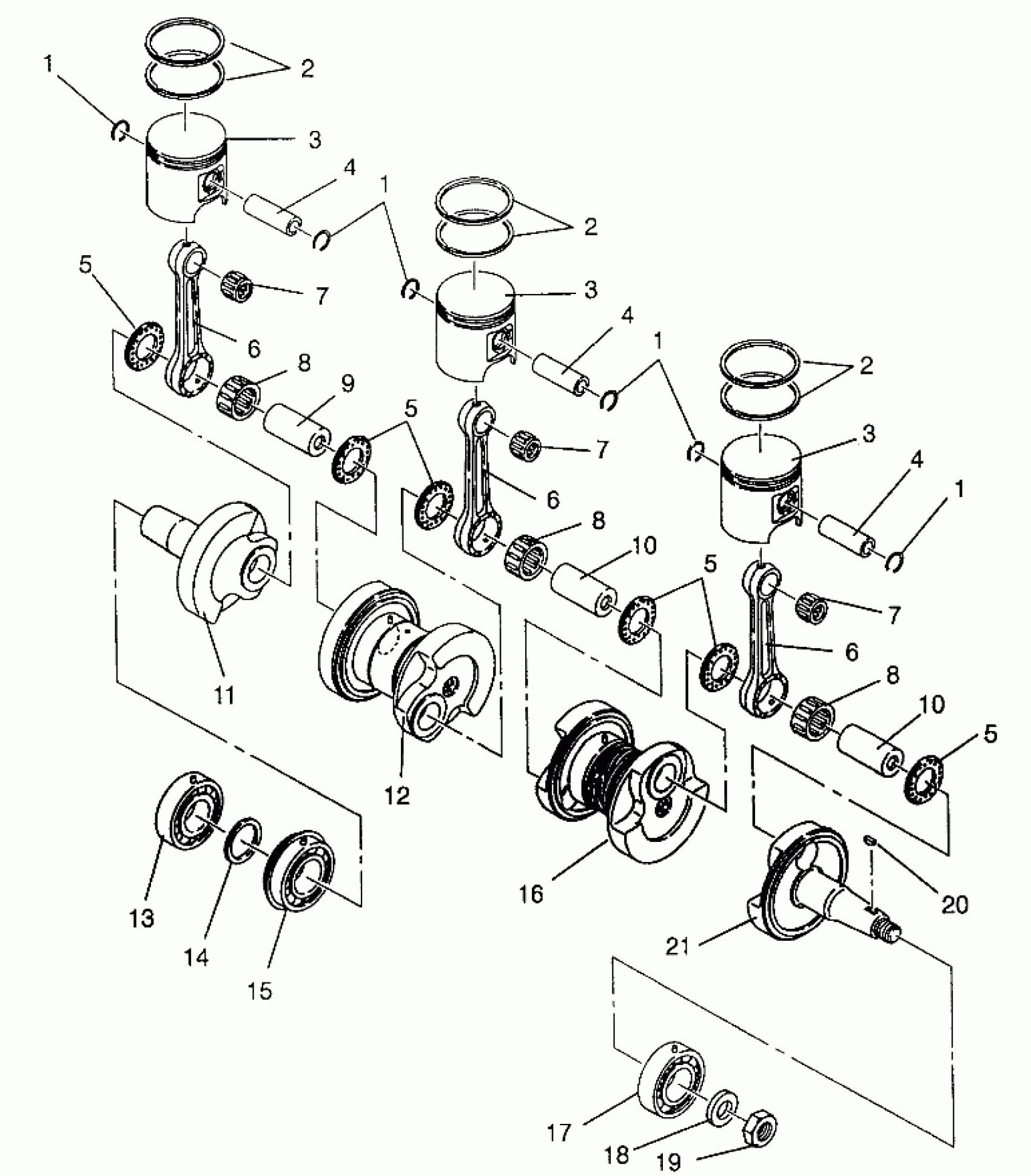

Polaris XLT SP - 0966676 PISTON and CRANKSHAFT XLT SP 0966676 and EUROPEAN XLT SP E966676 (4931703170C011) Diagram

#

Description
Price

1

CLIP,PISTON PIN,(10)

3084456

Unavailable

1

CLIP,PISTON PIN,(10)

3084456

Unavailable

1

CLIP,PISTON PIN,(10)

3084456

Unavailable

1

CLIP,PISTON PIN,(10)

3084456

Unavailable

2

RING, PISTON .010 O/S (0.25mm/.010" O/S)

3083358

Unavailable

2

RING,PISTON .020 O/S (0.50mm/.020" O/S)

3083359

Unavailable

2

RING, PISTON (Standard)

3083349

Unavailable

2

RING, PISTON .010 O/S (0.25mm/.010" O/S)

3083358

Unavailable

2

RING,PISTON .020 O/S (0.50mm/.020" O/S)

3083359

Unavailable

2

RING, PISTON (Standard)

3083349

Unavailable

2

RING, PISTON .010 O/S (0.25mm/.010" O/S)

3083358

Unavailable

2

RING,PISTON .020 O/S (0.50mm/.020" O/S)

3083359

Unavailable

2

RING, PISTON (Standard)

3083349

Unavailable

3

PISTON,(.50MM O/S) Substituted by 3085434 (0.50m/.020" O/S)

3085020

Unavailable

3

PISTON,(.25MM O/S) Substituted by 3085433 (0.25m/.010" O/S)

3085019

$118.99

3

PISTON, (STD.) Substituted by 3085432 (Standard)

3085018

$138.08

3

PISTON,(.50MM O/S) Substituted by 3085434 (0.50m/.020" O/S)

3085020

Unavailable

3

PISTON,(.25MM O/S) Substituted by 3085433 (0.25m/.010" O/S)

3085019

$118.99

3

PISTON, (STD.) Substituted by 3085432 (Standard)

3085018

$138.08

3

PISTON,(.50MM O/S) Substituted by 3085434 (0.50m/.020" O/S)

3085020

Unavailable

3

PISTON,(.25MM O/S) Substituted by 3085433 (0.25m/.010" O/S)

3085019

$118.99

3

PISTON, (STD.) Substituted by 3085432 (Standard)

3085018

$138.08

4

Pin, Piston

3085021

Unavailable

4

Pin, Piston

3085021

Unavailable

4

Pin, Piston

3085021

Unavailable

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

6

ROD, CONNECTING Substituted by 3085422

3084446

Unavailable

6

ROD, CONNECTING Substituted by 3085422

3084446

Unavailable

6

ROD, CONNECTING Substituted by 3085422

3084446

Unavailable

7

BEARING,SMALL END

3080998

Unavailable

7

BEARING,SMALL END

3080998

Unavailable

7

BEARING,SMALL END

3080998

Unavailable

8

BEARING-LARGE END Substituted by 3085628

3083255

$31.75

8

BEARING-LARGE END Substituted by 3085628

3083255

$31.75

8

BEARING-LARGE END Substituted by 3085628

3083255

$31.75

9

PIN-CRANK 2 (51mm)

3083254

Unavailable

10

PIN, CRANK, #1 (49mm)

3084447

$32.15

10

PIN, CRANK, #1 (49mm)

3084447

$32.15

11

CRANKSHAFT 3

3084445

Unavailable

12

CRANKSHAFT,PTO SIDE (PTO Side) (Incl. 9)

3084444

$549.99

13

BEARING, BALL

3084586

$44.99

14

SPACER,CRANKSHAFT

3080447

$1.99

15

BEARING, BALL

3084599

Unavailable

16

CRANKSHAFT,CENTER Substituted by 3085421 (Center) (Incl. 5, 6, 8-10, 12)

3084442

$999.99

16

CRANKSHAFT,MAG SIDE (MAG Side) (Incl. 10)

3084443

Unavailable

17

BEARING, BALL

3084681

Unavailable

18

Washer

3084457

Unavailable

19

NUT

3083093

$19.99

20

KEY Substituted by 3081543

3080130

Unavailable

21

CRANKSHAFT 1 Substituted by 3084597

3084441

$226.99

21

CRANKSHAFT ASM. Substituted by 3085420 (Incl. 5, 6, 8-17, 21)

3084679

$1,504.99
