FRONT SUSPENSION and SKI XLT SP 0966676 and EUROPEAN XLT SP E966676 (4931703170B002)

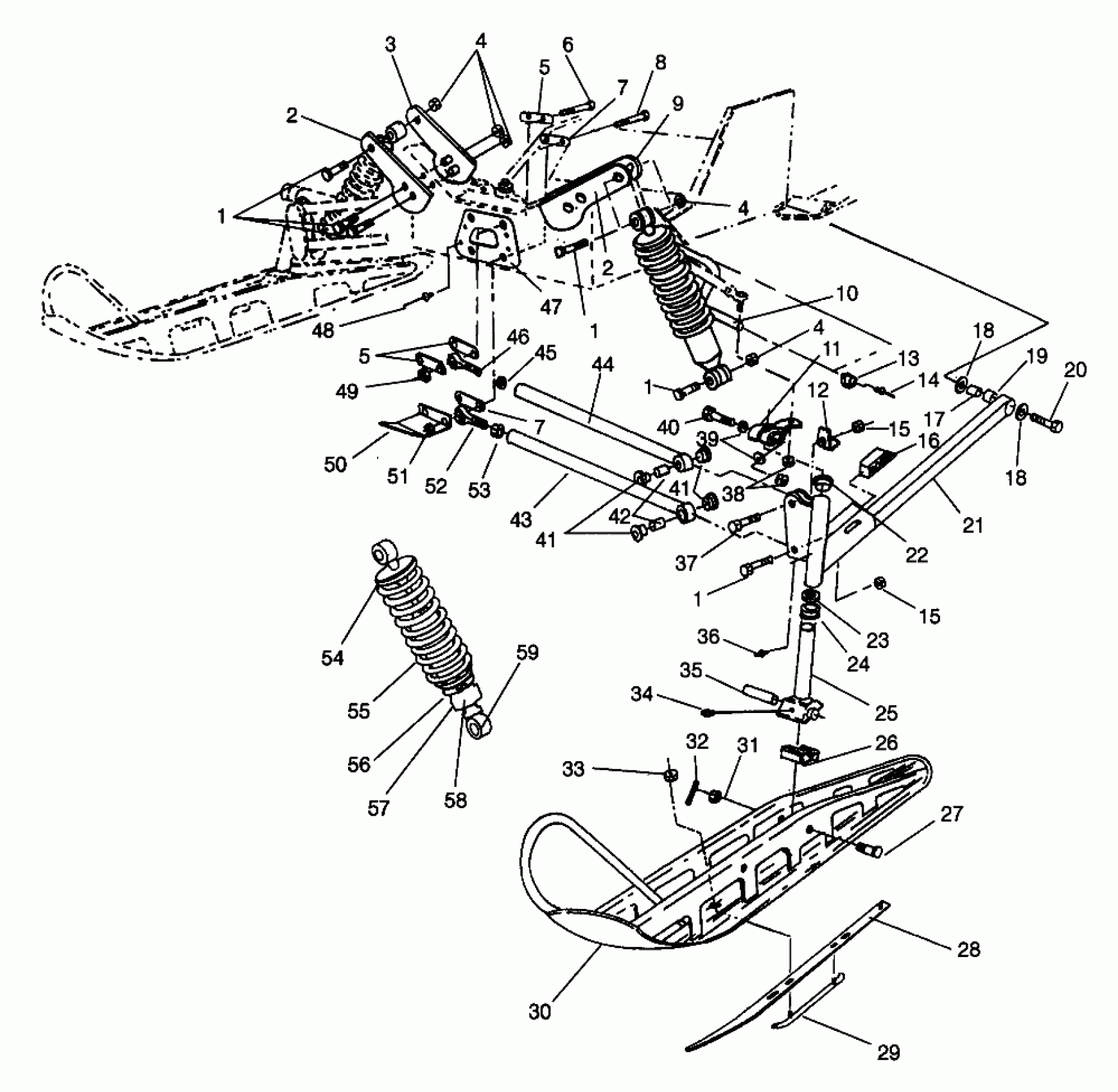

Polaris XLT SP - 0966676 FRONT SUSPENSION and SKI XLT SP 0966676 and EUROPEAN XLT SP E966676 (4931703170B002) Diagram
#
1
BOLT(10) Substituted by 7515415
7515515
Unavailable
1
BOLT(10) Substituted by 7515415
7515515
Unavailable
1
BOLT(10) Substituted by 7515415
7515515
Unavailable
1
BOLT(10) Substituted by 7515415
7515515
Unavailable
2
PLATE,SHOCK MT.EXT,BLK.
5211449-067
Unavailable
2
PLATE,SHOCK MT.EXT,BLK.
5211449-067
Unavailable
3
MT,RH,SHOCK EXT.BLK.
1012053-067
Unavailable
4
NUT, NYLOC(10)
7542453
Unavailable
4
NUT, NYLOC(10)
7542453
Unavailable
4
NUT, NYLOC(10)
7542453
Unavailable
5
STRAP,SPACER TOP
5211344
$7.27
5
STRAP,SPACER TOP
5211344
$7.27
6
BOLT(10)
7512551
Unavailable
7
STRAP,SPACER BOTTOM
5211345
$12.99
7
STRAP,SPACER BOTTOM
5211345
$12.99
8
BOLT(10)
7512678
$19.99
9
MT,LH,SHOCK EXT.BLK.
1012052-067
Unavailable
10
BAR,SWAY,LT 5/8 FITTED
5224680-067
Unavailable
11
ARM,STEERING
5241244-067
Unavailable
12
STOP,LH,STEERING
5241207-067
Unavailable
12
STOP,RH,STEERING
5241208-067
Unavailable
13
BUSHING,SWAYBAR
5410386
Unavailable
14
RIVET(50) Substituted by 7661130
7661643
Unavailable
15
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
15
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
16
SLIDE,SWAYBAR,5/8",LT
5431736
Unavailable
17
PIVOT,TRLG.ARM,RUBBER
5410872
$10.99
18
WASHER(10)
7555721
$1.49
18
WASHER(10)
7555721
$1.49
19
TUBE, BUSHING
5010310
$9.70
20
BOLT(10)
7512557
$7.60
21
ARM,TRLG,LH,(XLT) (Incl. 17, 19)
1822288
$219.99
21
ARM,TRLG,RH. (Incl. 17, 19)
1822289
Unavailable
22
BUSHING-FLANGE
3573909
$2.39
23
WASHER SPECIAL(10)
7556509
$1.59
24
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
25
SPINDLE, BLK.
6230073-067
Unavailable
26
STOP, RUBBER
5521276
Unavailable
27
BOLT(10)
7515462
$8.79
28
Plate, Skag
1011829-067
$54.99
29
SKAG, BLK.
1820318-067
$49.99
30
SKI WELD, BLK
1820332-067
Unavailable
30
SKI (Narrow - 48" Stance)
1820366-067
Unavailable
31
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
32
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
33
NUT-5/16-18 NYLOK-Y
7542324
$1.49
34
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
35
BUSHING,PIVOT,(10)
5010158
$19.99
36
ZERK,FITTING,THREADED(10)
7080433
$1.49
37
DESC NOT_AVAILABLE
7515530
Unavailable
38
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
39
WASHER(10) Substituted by 7555832
7555851
Unavailable
40
BOLT(10) Substituted by 7517583
7515491
Unavailable
41
BUSHING-RAD ROD PIVOT
5432074
Unavailable
41
BUSHING-RAD ROD PIVOT
5432074
Unavailable
42
BUSHING,RAD.ROD,UPP/LOWER
5010356
Unavailable
43
ROD,RAD.LOW,BLK.
1822293-067
Unavailable
44
ROD,RAD.UP,BLK.
1822295-067
Unavailable
45
NUT JAM(10)
7542520
$2.39
46
ROD END, RH Substituted by 7061010
7060155
Unavailable
47
BRACE,BLKHD/STRG,BLK.
5211589-067
Unavailable
48
RIVET-3/16-.090-.290
7661637
$1.49
49
NUT, LOCK,(10)
7542503
$10.39
50
BRACE, PAN
5223997-067
Unavailable
51
NUT FLEX,(10)
7542703
Unavailable
52
ROD END,RH Substituted by 7061011
7060156
Unavailable
53
NUT-JAM(10)
7542711
$2.39
54
RETAINER,SPRING,SLOTTED
5020618
$24.99
55
SPRING,COMP,.BLK.
7041396-067
Unavailable
56
RING, RETAINING(10)
7710424
$0.63
57
RETAINER,SPRING,BODY,THREADED
1500063
$44.51
58
RING,SPRING PRELOAD ADJ.
5431734
$52.60
59
Fox Shock - IFS (See Pg. for Details)
-------
Unavailable
