ENGINE MOUNTING XLT SP 0966676 and EUROPEAN XLT SP E966676 (4931703170C002)

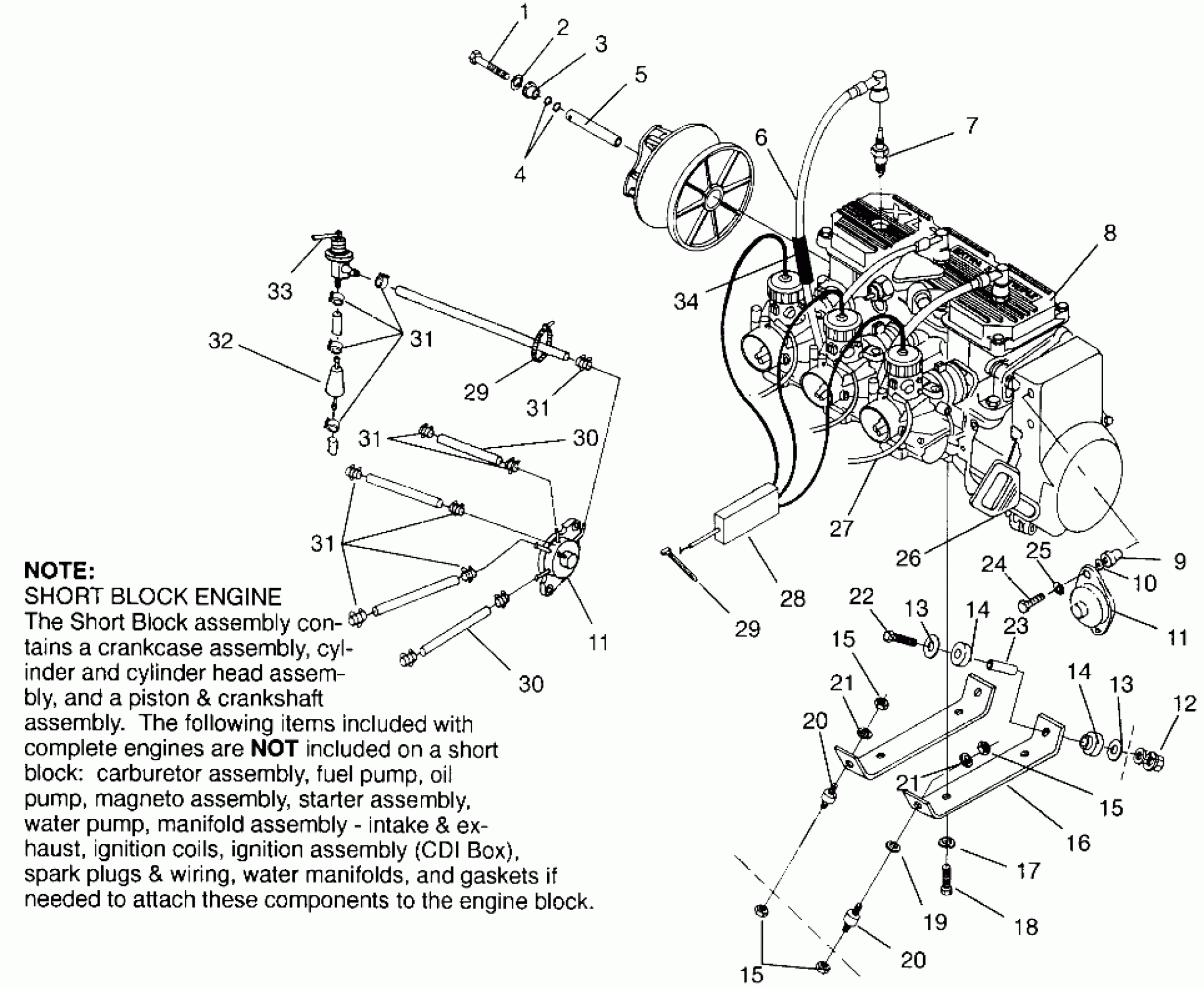

Polaris XLT SP - 0966676 ENGINE MOUNTING XLT SP 0966676 and EUROPEAN XLT SP E966676 (4931703170C002) Diagram
#
1
BOLT(10)
7512565
$19.99
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER,CLUTCH RETAIN.
5010287
$12.99
4
O RING,(10)
5410507
$1.49
5
SPACER,CLUTCH BOLT
5020513
$44.99
6
CONDUIT,CONVOLUTED Substituted by 4010051-30
4010051
Unavailable
7
SPARKPLUG(8)
3070165
$3.99
8
ENG.(S.B.)EC58PL-02 Substituted by 3085391
3084629
Unavailable
9
NUT-WELL(10)
7541923
$5.59
10
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
11
Fuel Pump (See Pg., Ref.)
-------
Unavailable
11
Fuel Pump (See Pg., Ref.)
-------
Unavailable
12
NUT,FLANGE(10)
7542522
$5.59
13
WASHER(10)
7555740
$1.59
13
WASHER(10)
7555740
$1.59
14
MOUNT, ENGINE
5410390
Unavailable
14
MOUNT, ENGINE
5410390
Unavailable
15
NUT LOCK(10)
7542411
$3.19
15
NUT LOCK(10)
7542411
$3.19
15
NUT LOCK(10)
7542411
$3.19
16
PLATE,LH,MTR.MT.
5240801
Unavailable
16
PLATE,RH,MTR.MT.
5240802
$36.51
17
WASHER LOCK(10)
7553101
$3.99
18
BOLT(10)
7512575
Unavailable
19
WASHER(10)
7555721
$1.49
20
MOUNT
3110022
Unavailable
20
MOUNT
3110022
Unavailable
21
WASHER(10) Substituted by 7555806
7555720
$0.79
21
WASHER(10) Substituted by 7555806
7555720
$0.79
22
SCREW(10)
7512530
$5.59
23
TUBE,SPACER
5333354
Unavailable
24
SCREW(10)
7512279
$1.49
25
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
26
HANDLE,RECOIL Substituted by 5431499-070
5431499
Unavailable
27
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
28
CABLE,THROTTLE,W/OIL
7080565
Unavailable
29
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
29
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
30
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
30
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
31
HOSE CLAMP, RED
7080003
$1.49
31
HOSE CLAMP, RED
7080003
$1.49
31
HOSE CLAMP, RED
7080003
$1.49
31
HOSE CLAMP, RED
7080003
$1.49
32
FILTER FUEL,(10)
2530008
$4.84
33
VALVE,FUEL SHUT-OFF
7052060
Unavailable
34
CONDUIT,CONVOL(15 CM) Substituted by 4010051-30
4010051-15
Unavailable
