CYLINDER XLT SP 0966676 and EUROPEAN XLT SP E966676 (4931703170C010)

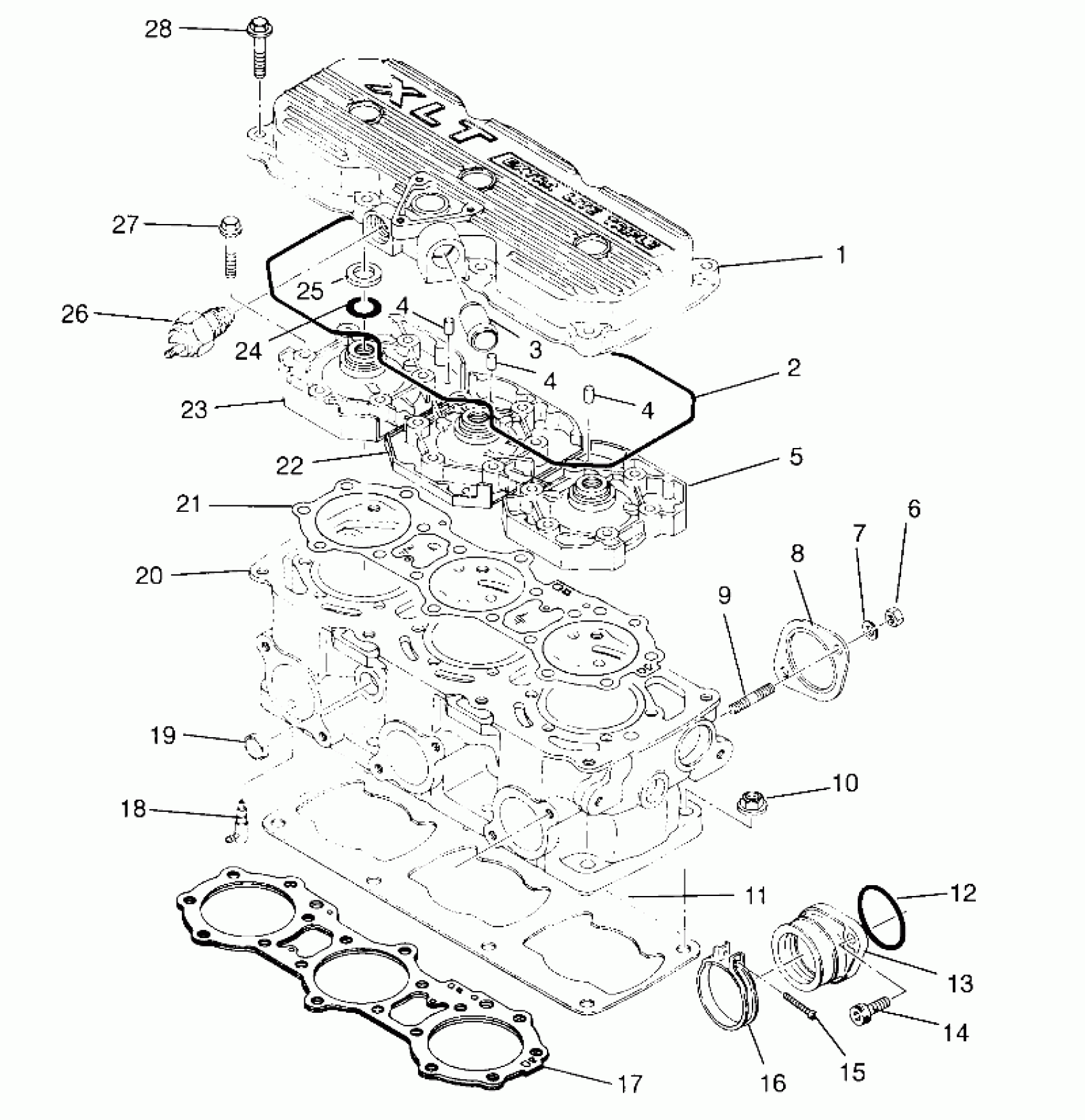

Polaris XLT SP - 0966676 CYLINDER XLT SP 0966676 and EUROPEAN XLT SP E966676 (4931703170C010) Diagram
#
Description
Price
1
COVER,HEAD,(3 CYL) (Incl. 3)
3085190
Unavailable
2
O-RING, (HEADCOVER) (Head Cover)
3084434
Unavailable
3
PIPE, WATER, CPL.
3084431
Unavailable
4
PIN, DOWEL
3084721
$4.79
4
PIN, DOWEL
3084721
$4.79
4
PIN, DOWEL
3084721
$4.79
5
HEAD, CYL.,(MAG) (Mag)
3084674
Unavailable
6
NUT(10)
3080285
Unavailable
7
WASHER LOCK ,(10)
3080530
$3.19
8
GASKET,EXHAUST,NA(10) Substituted by 3086757 (Exhaust) Non-Asbestos
3084439
Unavailable
9
STUD Substituted by 3085326
3084270
Unavailable
10
NUT-FLANGE(10)
3082911
$1.99
11
GASKET, CYLINDER (Cylinder)
3084593
Unavailable
12
O-RING Substituted by 3085619
3084272
Unavailable
13
ADAPTER, CARB. (Incl. 12)
3084673
Unavailable
14
Bolt, Allen
3081330
$3.99
15
SCREW,(10)
3081497
$2.39
16
BAND ASM. (Incl. 15)
3083166
$19.84
17
GASKET #1,HEAD Substituted by 3085613 (Std.)
3085003
Unavailable
18
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
19
PLUG
3084428
$3.51
20
CYLINDER (Incl. 9, 19)
3085049
$734.99
21
GASKET,HEAD (Opt)
3085005
Unavailable
22
HEAD, CYL.,(CEN) (Cen)
3084675
Unavailable
23
HEAD, CYL.,(PTO) (PTO)
3084676
Unavailable
24
O RING
3085192
Unavailable
25
SPACER
3084722
Unavailable
26
SWITCH,THERMAL,IOS
3084284
Unavailable
27
BOLT, FLANGE ,(10)
3084435
Unavailable
28
Bolt, Flange
3084437
Unavailable
