CONSOLE XLT SP 0966676 and EUROPEAN XLT SP E966676 (4931703170A014)

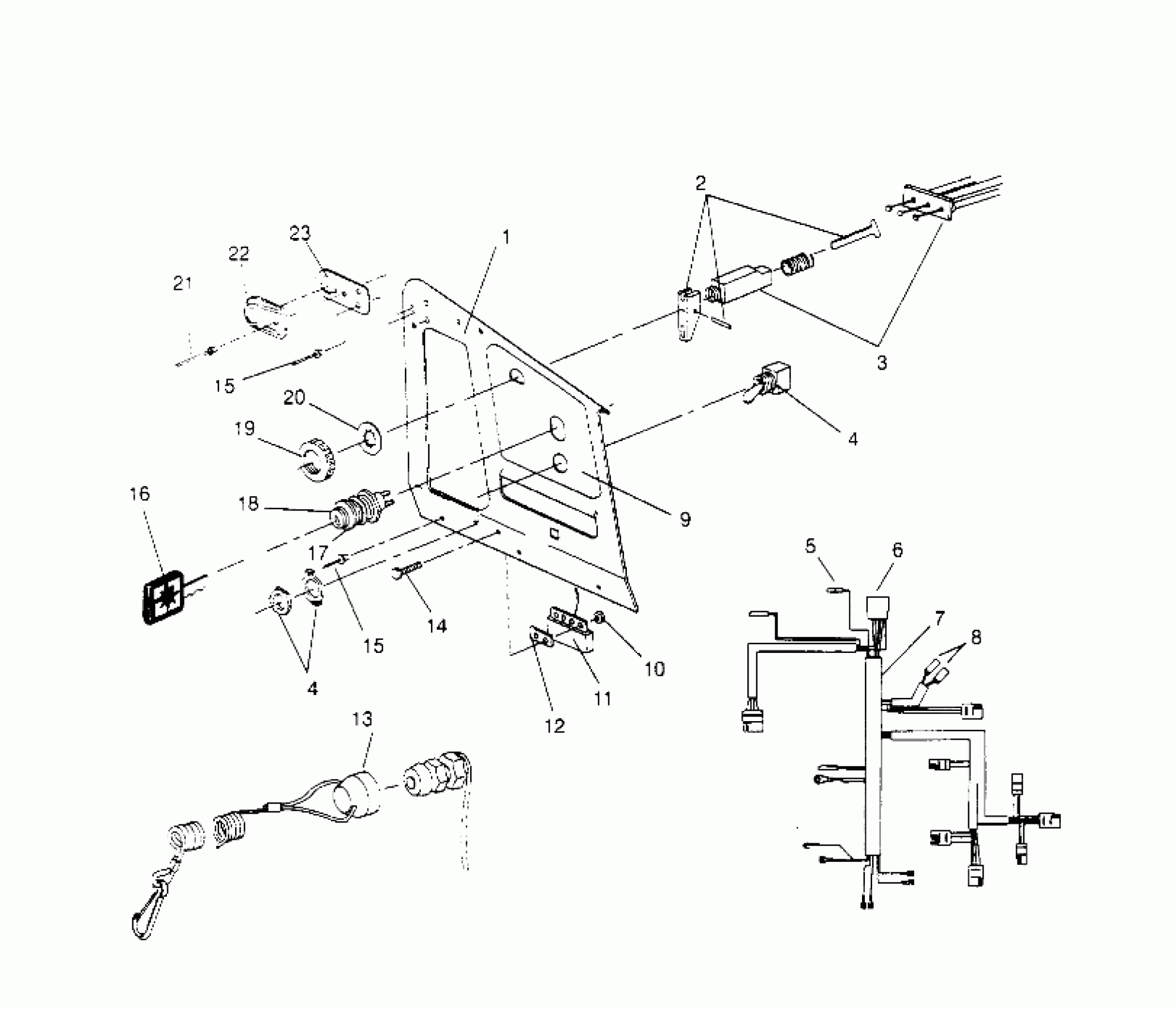

Polaris XLT SP - 0966676 CONSOLE XLT SP 0966676 and EUROPEAN XLT SP E966676 (4931703170A014) Diagram
#
Description
Price
1
CONSOLE
5222756-067
Unavailable
1
CONSOLE,BLK,(SCAND) (EURO Only)
5222758-067
$53.59
2
KIT,CHOKE CONTROL
2200189
$20.22
3
CABLE, CHOKE
7080283
$109.99
4
SW,HEATER,HI-LOW
4110077
Unavailable
4
SW,HEATER,HI-LOW
4110077
Unavailable
5
HOUSING
4020133
Unavailable
6
Housing w/Receptacle
4020057
$3.51
7
HARNESS,MAIN WIRE,(XLT)
2460430
$126.98
7
HARNESS,MAIN WIRE (EURO Only)
2460439
Unavailable
8
Housing
4020153
$1.49
9
DECAL, CONSOLE [No Longer Available]
7073075
Unavailable
10
NUT(10)
7541925
$1.49
11
REGULATOR,14 VAC.LR-9
4060122
Unavailable
12
SPACER,REGULATOR
5211573
Unavailable
13
SWITCH,TETHER Substituted by 2870668 (Euro Only)
4110156
$84.99
14
BOLT(10)
7512031
$2.23
15
RIVET-3/16-.090-.290
7661637
$1.49
15
RIVET-3/16-.090-.290
7661637
$1.49
16
KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote)
5410611
Unavailable
17
NUT, IGN.SWITCH(10)
7543101
Unavailable
18
KIT,IGN. SWITCH (Incl. 16)
2200357
Unavailable
19
Nut
7080229
$19.99
20
WASHER-LOCK(10)
7571610
$3.99
21
RIVET,(50)
7621477
$1.19
22
GUIDE, RECOIL
5431385
$10.51
23
BRKT,ROPE GUIDE,BLK. NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A, B, C, D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot
5222682-067
Unavailable
