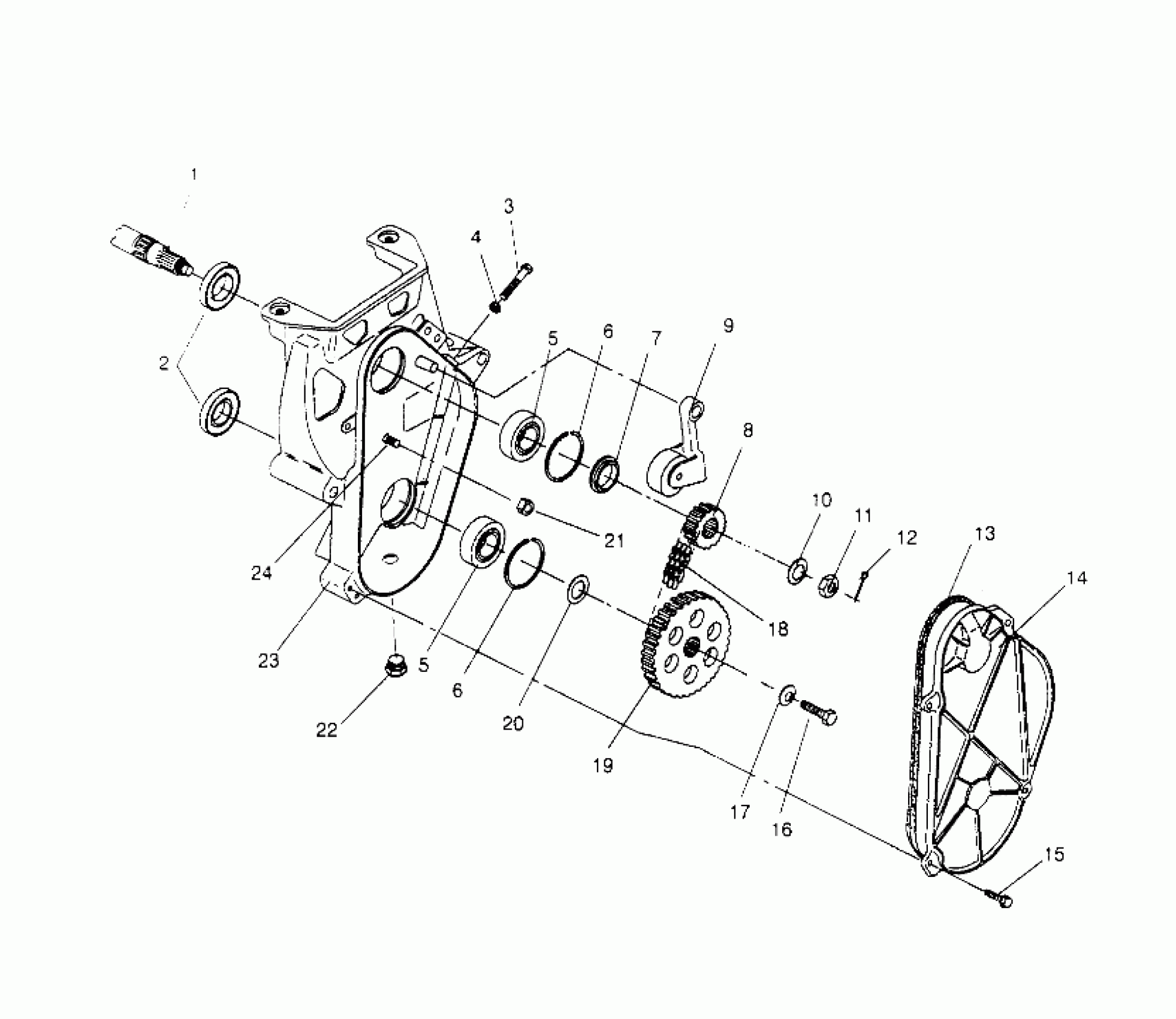

Polaris XLT SP - 0966676 CHAINCASE XLT SP 0966676 and EUROPEAN XLT SP E966676 (4931703170B008) Diagram

#

Description
Price

1

Asm., Jackshaft (See Pg. A22, Ref. 16)

-------

Unavailable

2

SEAL-OIL

3610030

$20.22

3

SCREW(10)

7515511

$3.99

4

NUT(10)

7542404

$1.59

5

BEARING,205,W/O SEAL

3514304

$15.99

5

BEARING,205,W/O SEAL

3514304

$15.99

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

7

SPACER,SPROCKET

5010359

Unavailable

8

SPKT,21T,(13W),15T SPLINE (13W)

3221062

Unavailable

9

PIN,CHAIN TIGHTENER

7662210

Unavailable

9

TIGHTENER ASM,GEARCASE Substituted by 1332213

1332096

$159.99

9

BEARING

3553002

$11.99

9

BLOCK,TIGHTENER [No Longer Available]

5630122

Unavailable

9

WHEEL,C/C IDLER

5630123

Unavailable

9

WASHER THRUST(10)

7558702

$1.59

10

WASHER, SLOTTED(10)

7571620

$7.19

11

NUT, SLOTTED(10)

7542810

$3.19

12

COTTER PIN(10)

7661401

$1.49

13

GASKET-CHAINCASE

5410277

$24.99

14

COVER, CHAINCASE Substituted by 5630968

5630413

Unavailable

15

SCREW(10)

7512242

$2.39

16

SCREW(10)

7515350

$3.97

17

WASHER(10)

7571618

$6.39

18

CHAIN,66P,(13W),SILENT (13W)

3224051

Unavailable

19

SPROCKET,39T,(13W) (13W)

3222052

Unavailable

20

BUSHING(10)

7555864

$2.39

21

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

22

PLUG(10)

7052115

$5.65

23

CHAINCASE,VENTED,W/BRG CLEAR. Substituted by 5131568

5131121

Unavailable

24

BOLT(10)

7515477

$34.99
