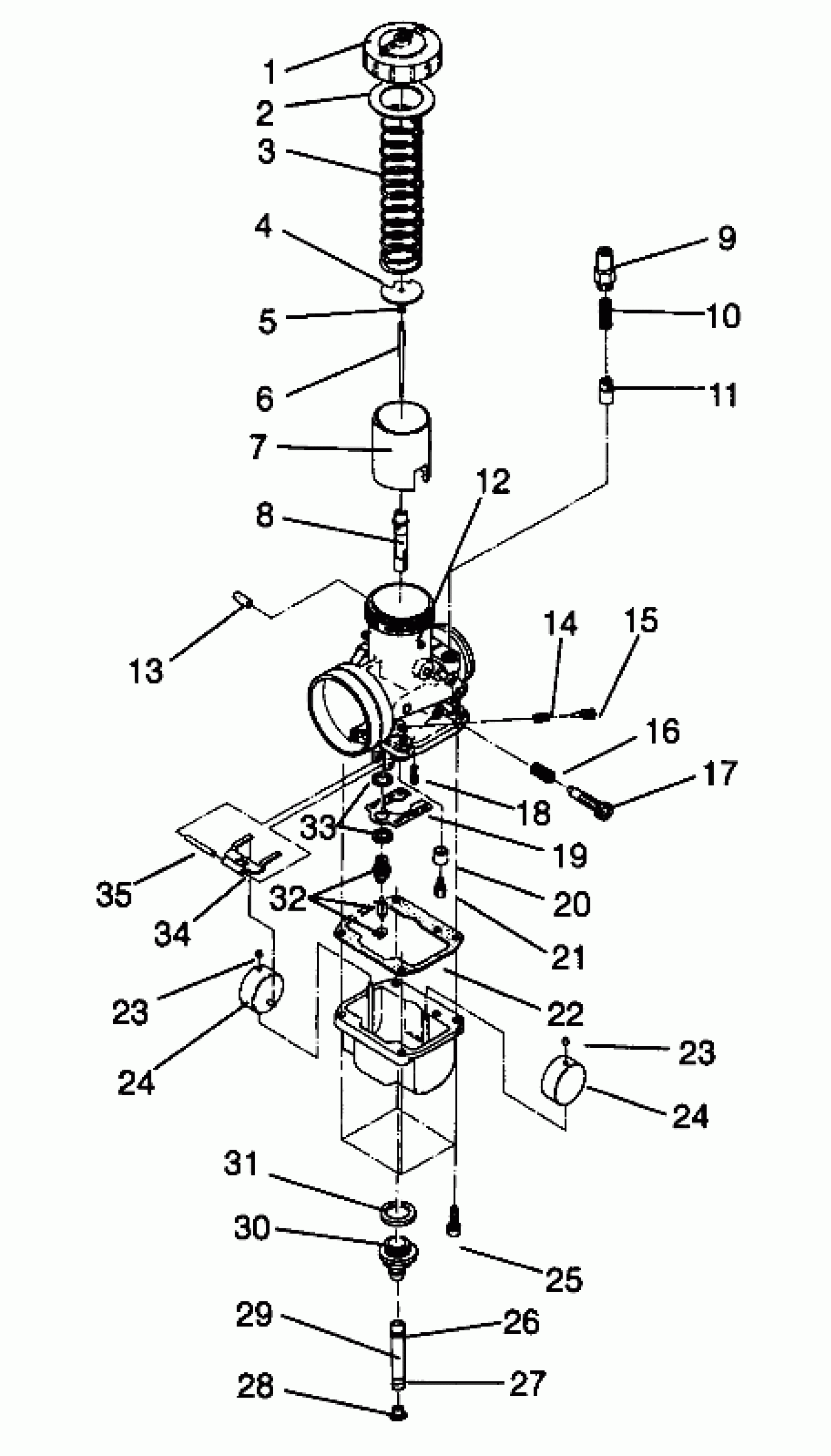

Polaris XLT SP - 0966676 CARBURETOR XLT SP 0966676 and EUROPEAN XLT SP E966676 (4931703170C013) Diagram

#

Description
Price

1

TOP (Incl. 2)

3130061

Unavailable

2

GASKET

-------

Unavailable

3

SPRING,THROTTLE

3130444

Unavailable

4

PLATE, THROTTLE

3130054

$6.46

5

E RING(10) Substituted by 3130508

3130003

Unavailable

6

JET NEEDLE (6DH7-3)

3130329

Unavailable

7

VALVE, THROTTLE,2.5 (2.5)

3130454

Unavailable

8

JET,NEEDLE,Q-2 (Q-2) 247

3130165

Unavailable

9

HOLDER,GUIDE

3130199

$28.32

10

SPRING,PLUNGER

3130006

$8.89

11

PLUNGER ASM, STARTER

3130328

$32.37

12

CARBURETOR (Incl. 1-25, 30-35)

3130582

Unavailable

13

CAP

3130479

$14.56

14

SPRING,AIR ADJUST

3130012

$8.89

15

SCREW,AIR

3130011

$19.99

16

SPRING,THROTTLE ADJ.

3130010

$8.89

17

SCREW,THROTTLE STOP

3130009

$19.99

18

JET,PILOT,#35(10) (#35)

3130066

$8.89

19

PLATE

3130243

Unavailable

20

RING,CARB

3130232

Unavailable

21

JET,MAIN,HX.HD#260(10) (#260)

3130129

$7.27

22

GASKET,FLOAT CHAMBER

3130236

$12.13

23

CAP,(10)

3130237

$4.03

23

CAP,(10)

3130237

$4.03

24

FLOAT ASM

3130021

$40.46

24

FLOAT ASM

3130021

$40.46

25

SCREW

3130056

$3.19

26

CLAMP,SPRING,(10) (Yellow)

7080534

$1.59

27

CLAMP,HOSE(10) (Green)

7080544

Unavailable

28

PLUG,TRAP

5431893

$12.94

29

FUEL LINE, 5 FT.

8450045-153

$99.99

30

NIPPLE

3130573

$32.37

31

O RING

3130239

Unavailable

32

VALVE ASM,NEEDLE Substituted by 3130643 (1.5)

3130046

$56.65

33

WASHER(10)

3130047

$4.84

34

ARM,FLOAT

3130048

Unavailable

35

PIN, FLOAT

3130361

$8.89
