- XLT RMK - 0960956
TUNNEL XLT RMK 0960956, XLT SKS 0960556 and EUROPEAN XLT SKS E960556 (4931813181A005)

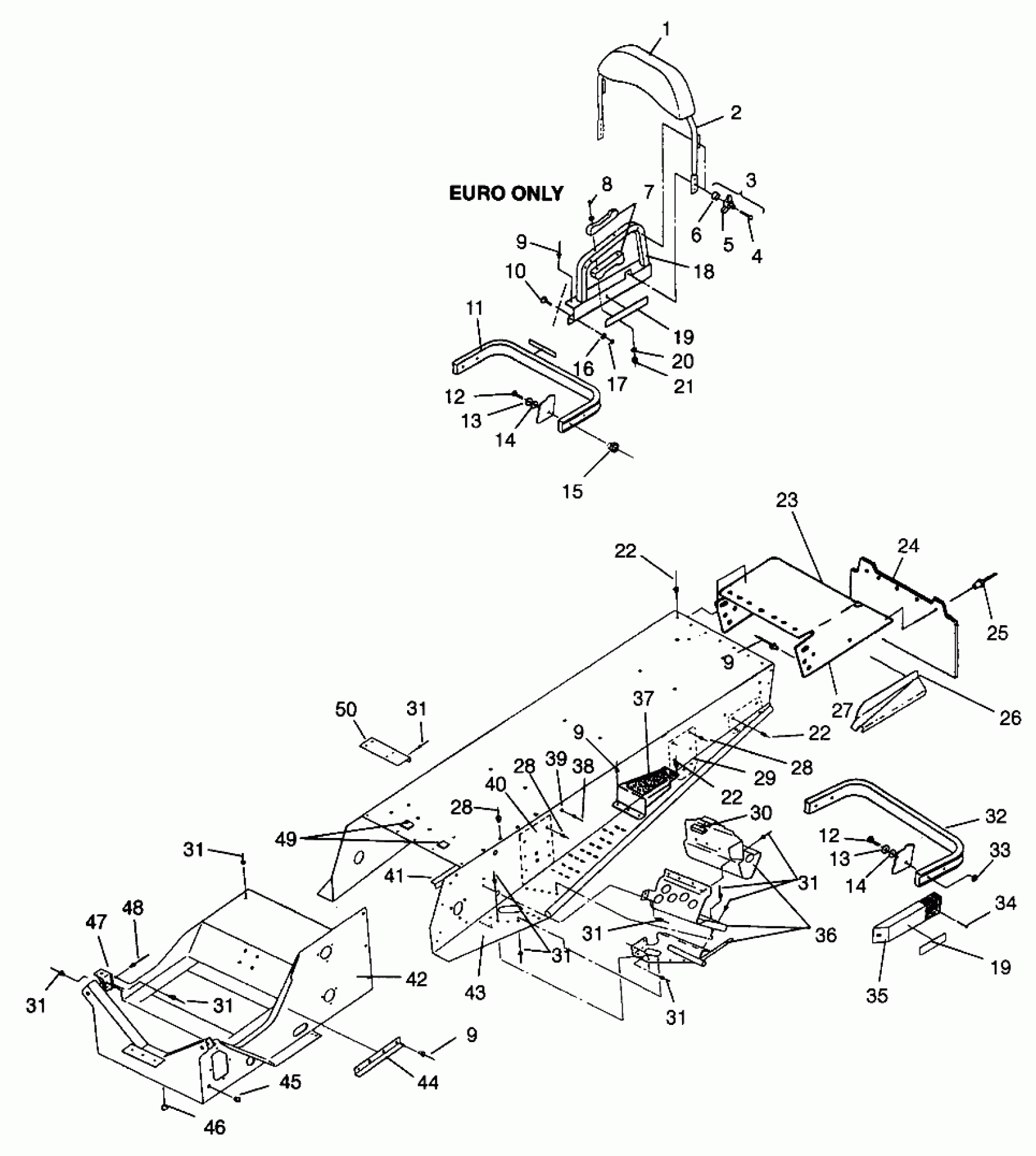

Polaris XLT RMK - 0960956 TUNNEL XLT RMK 0960956, XLT SKS 0960556 and EUROPEAN XLT SKS E960556 (4931813181A005) Diagram
#
1
COVER,BACKREST ASM. Substituted by 2681265
2681790
Unavailable
2
BACKREST ASM. Substituted by 2681356
2681789
Unavailable
3
KNOB ASM,BACKREST
2670130
Unavailable
4
SCREW(10)
7515352
Unavailable
5
Knob, Backrest
5630386-067
$20.22
6
SPACER
5431285
Unavailable
7
GRIP, HAND Substituted by 5433383
5431015
$19.68
8
SCREW(10)
7510504
$6.76
9
RIVET-3/16-.090-.290
7661637
$1.49
9
RIVET-3/16-.090-.290
7661637
$1.49
9
RIVET-3/16-.090-.290
7661637
$1.49
9
RIVET-3/16-.090-.290
7661637
$1.49
10
BOLT(10) Substituted by 7512325
7515363
Unavailable
11
BUMPER ASM,REAR,(TOUR)
2670171
Unavailable
12
BOLT(10)
7512240
$3.99
12
BOLT(10)
7512240
$3.99
13
LOCK WASHER(10)
7552801
$1.59
13
LOCK WASHER(10)
7552801
$1.59
14
WASHER(10)
7558301
$1.49
14
WASHER(10)
7558301
$1.49
15
RIVNUT(10)
7542130
$6.23
16
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
17
NUT, NYLOK(10)
7542327
$4.79
18
BAR,GRAB,LH,BLK.
1011729-067
Unavailable
18
BAR,GRAB,RH,BLK.
1011730-067
Unavailable
19
REFLECTOR RED
2670070
$9.91
19
REFLECTOR RED
2670070
$9.91
20
WASHER(10)
7555783
$3.99
21
NUT, LOCK(10) Substituted by 7541925
7541929
Unavailable
22
RIVET,SEMI-TUBE,(50)
7661841
$1.49
22
RIVET,SEMI-TUBE,(50)
7661841
$1.49
22
RIVET,SEMI-TUBE,(50)
7661841
$1.49
23
Decal - Track/Seat, French, RH (See Pg., Ref.)
-------
Unavailable
23
Decal - Track/Seat, English, LH (See Pg., Ref.)
-------
Unavailable
24
FLAP,SNOW,(XTRA-10) Substituted by 5432149-1106 (Xtra 10)
5432149
Unavailable
25
POP RIVET(50)
7621418
$1.49
26
SKIRT,SNOW,LH
5432049-070
$33.91
26
SKIRT,SNOW,RH
5432050-070
$30.16
27
PANEL ASM,TUNNELBACK
1012360-067
Unavailable
28
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
28
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
28
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
29
BRKT,LH,R.SUSP Substituted by 1012563-067
1012409-067
Unavailable
29
BRKT,RH,R.SUSP Substituted by 1012564-067
1012410-067
Unavailable
30
EXTRUSION,CLUTCHGUARD
5521238
$6.46
31
RIVET,INTERLOCK,B(50)
7661638
$1.49
31
RIVET,INTERLOCK,B(50)
7661638
$1.49
31
RIVET,INTERLOCK,B(50)
7661638
$1.49
31
RIVET,INTERLOCK,B(50)
7661638
$1.49
31
RIVET,INTERLOCK,B(50)
7661638
$1.49
31
RIVET,INTERLOCK,B(50)
7661638
$1.49
31
RIVET,INTERLOCK,B(50)
7661638
$1.49
31
RIVET,INTERLOCK,B(50)
7661638
$1.49
32
BUMPER, REAR
2670170
Unavailable
33
NUT-LOCK(10)
7542122
$1.49
34
SCREW(10)
7511863
$1.99
35
CAP, BUMPER, BLK.
5430930-070
Unavailable
36
FOOTREST ASM, LH
1011861
Unavailable
36
FOOTREST ASM,RH,BLK.
1011892
Unavailable
37
PAD,LH FOOT SAFETY
5830007
$7.89
37
PAD,RH FOOT SAFETY
5830008
$4.92
37
FOOTREST,LH R,BLK.
5220893-067
Unavailable
37
FOOTREST,RH R,BLK.
5220894-067
$32.15
38
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
39
SNAP-MALE(10)
7080227
Unavailable
40
PAD,LH,FR.SUSP.MTG. Substituted by 5244287-067
5241303-067
Unavailable
40
PAD,RH,FR.SUSP.MTG. Substituted by 5244287-067
5241304-067
Unavailable
41
BRACE,REINF.TUNNEL
5240242
Unavailable
42
BULKHEAD, BLK. (RMK)
1012256-067
Unavailable
42
BULKHEAD (SKS)
1012356-067
Unavailable
43
TUNNEL ASM,(LIQ.SKS),BLK. Substituted by 1012519
1012362
Unavailable
44
GUARD,ADAPTER GUIDE
5222857
$12.94
45
PLUG, HOLE(10)
7080416
$5.65
46
PLUG-HOLE
7080398
$4.84
47
SUPPORT,MUFFLER,BLK. Substituted by 1260724-067
1260657-067
Unavailable
48
RIVET(50)
7621452
$1.49
49
DECAL,TOP,TUNNEL STRIP
7073978
Unavailable
50
BRKT, TOOL BOX
5220973
Unavailable
