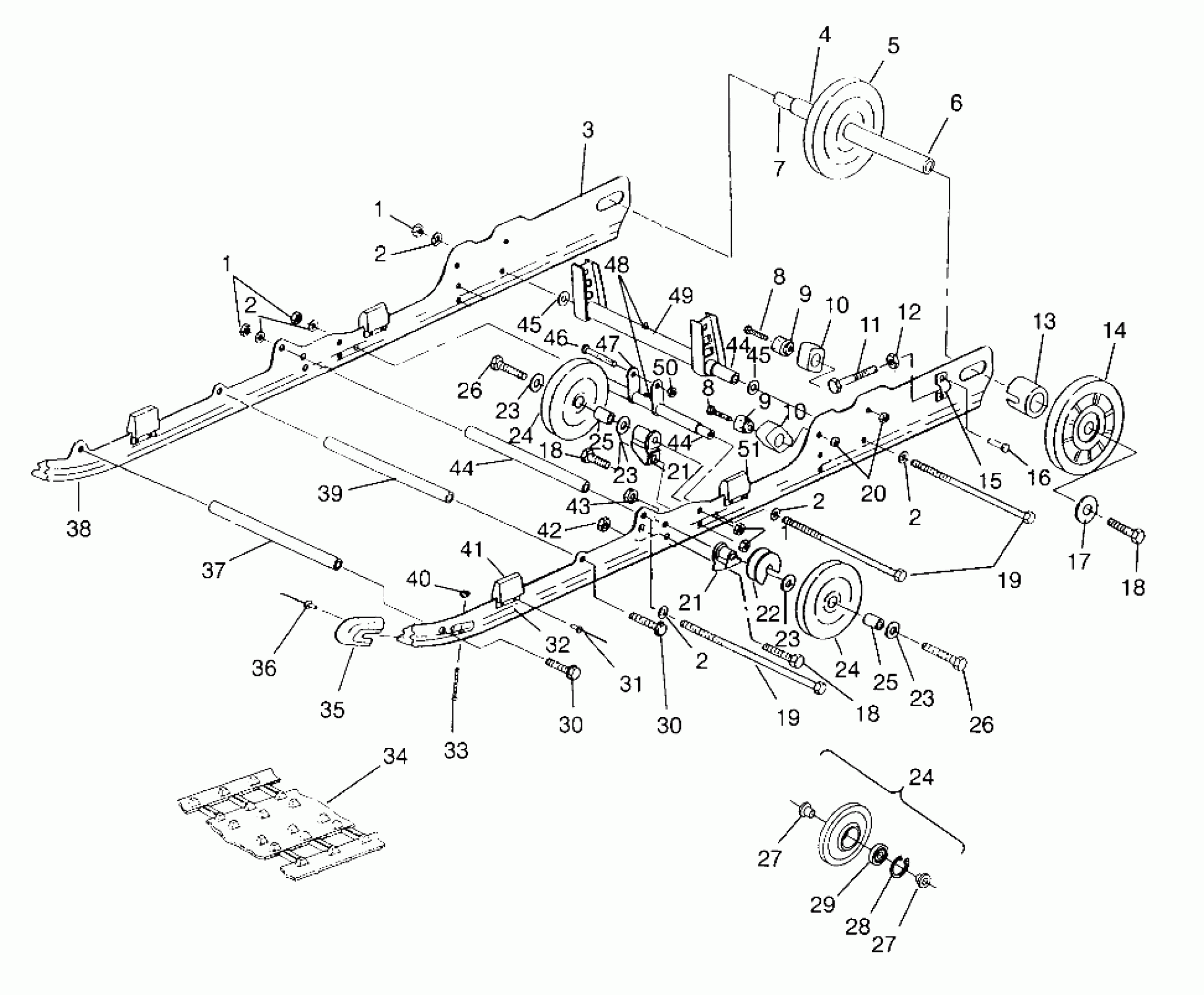

Polaris XLT RMK - 0960956 SUSPENSION XLT RMK 0960956, XLT SKS 0960556 and EURO XLT SKS E960556 (4931813181B012) Diagram

#

Description
Price

1

NUT LOCK(10)

7542411

$3.19

1

NUT LOCK(10)

7542411

$3.19

1

NUT LOCK(10)

7542411

$3.19

2

WASHER(10) Substituted by 7555806

7555720

$0.79

2

WASHER(10) Substituted by 7555806

7555720

$0.79

2

WASHER(10) Substituted by 7555806

7555720

$0.79

2

WASHER(10) Substituted by 7555806

7555720

$0.79

2

WASHER(10) Substituted by 7555806

7555720

$0.79

3

RAIL ASM,RH,133"

1540947

$339.99

3

RAIL ASM,LH,133"

1540946

$269.55

4

SPACER INNER IDLER

5010169

Unavailable

5

WHEEL, IDLER Substituted by 1594079-070

1594021

Unavailable

6

SPACER,IDLER,R.INNER

5333086

Unavailable

7

SHAFT,IDLER

5020722

Unavailable

8

BOLT(10)

7515537

$10.99

8

BOLT(10)

7515537

$10.99

9

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

9

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

10

BUMPER,F.PIVOT ARM

5410925

$12.94

10

BUMPER,F.PIVOT ARM

5410925

$12.94

11

BOLT, ADJUSTER(10)

7515455

$29.99

12

NUT(10)

7542440

Unavailable

13

SPACER-IDLER-OUTER

5332641

Unavailable

14

WHEEL,IDLER,LAV. (Red) (Incl. 28, 29)

1594049

Unavailable

15

BLOCK-IDLER BOLT ADJ.

5130530

$32.37

16

RIVET,(50)

7621501

$2.39

17

WASHER(10) Substituted by 7556130

7571629

Unavailable

18

BOLT(10)

7515526

$1.19

18

BOLT(10)

7515526

$1.19

18

BOLT(10)

7515526

$1.19

19

SCREW Substituted by 7517353

7515549

Unavailable

19

SCREW Substituted by 7517353

7515549

Unavailable

20

NUT LOCK(10)

7542403

$3.99

21

SPACER

5630399

$11.99

21

SPACER

5630399

$11.99

22

ROLLER, SPRING

5431366

$10.51

23

WASHER, FLAT(10)

7555852

$2.39

23

WASHER, FLAT(10)

7555852

$2.39

23

WASHER, FLAT(10)

7555852

$2.39

23

WASHER, FLAT(10)

7555852

$2.39

24

WHEEL, IDLER (Incl. 27-29)

1543018

$56.65

24

WHEEL, IDLER (Incl. 27-29)

1543018

$56.65

24

WHEEL, IDLER (Incl. 27-29)

1543018

$56.65

25

SPACER, WHEEL

5333116

$7.99

25

SPACER, WHEEL

5333116

$7.99

26

BOLT(10)

7512538

$6.39

26

BOLT(10)

7512538

$6.39

27

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

27

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

28

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

29

BEARING (1 per Wheel)

3514303

$11.99

30

BOLT

7515542

Unavailable

30

BOLT

7515542

Unavailable

31

RIVET-3/16 (.626-.750) Q-AL-ST

7621476

$1.49

32

REINF., BUMPER

5222629

$13.75

33

BOLT(10)

7515175

$3.99

34

CLIP, TRACK(CAMOPLAST),(10)

5222839

Unavailable

34

CLIP,GUIDE,CAMOPLAST,(10)

5222840

Unavailable

34

TRACK,133"X1",MOD(LIGHTNING) (SKS, EURO)

5411060

Unavailable

34

TRACK Substituted by 2871368 (RMK)

5410892

Unavailable

35

COVER, RAIL TIP Substituted by 5433005

5431421

Unavailable

36

RIVET(50)

7621435

$1.49

37

SHAFT,PIVOT ARM

5020723

$29.99

38

SLIDER,BLACK(2)

5521320

Unavailable

39

SHAFT,PIVOT ARM

5020724

$29.99

40

NUT-LOCK(10)

7542122

$1.49

41

BUMPER,SUSPENSION

5811097

Unavailable

42

NUT-LOCK(10)

7542439

$1.49

43

NUT, NYLOCK(10)

7542525

$4.79

44

SHAFT

5333404

$24.27

44

SHAFT

5333404

$24.27

44

SHAFT

5333404

$24.27

45

WASHER(10)

7555893

$1.49

45

WASHER(10)

7555893

$1.49

46

BOLT(10)

7515472

$2.39

47

ARM,SHOCK PIVOT

1541001-067

$43.65

48

ARM,R.PIVOT

1540981-067

Unavailable

49

NUT LOCK(10)

7542411

$3.19

50

BUMPER, RAIL

5810554

$7.27
