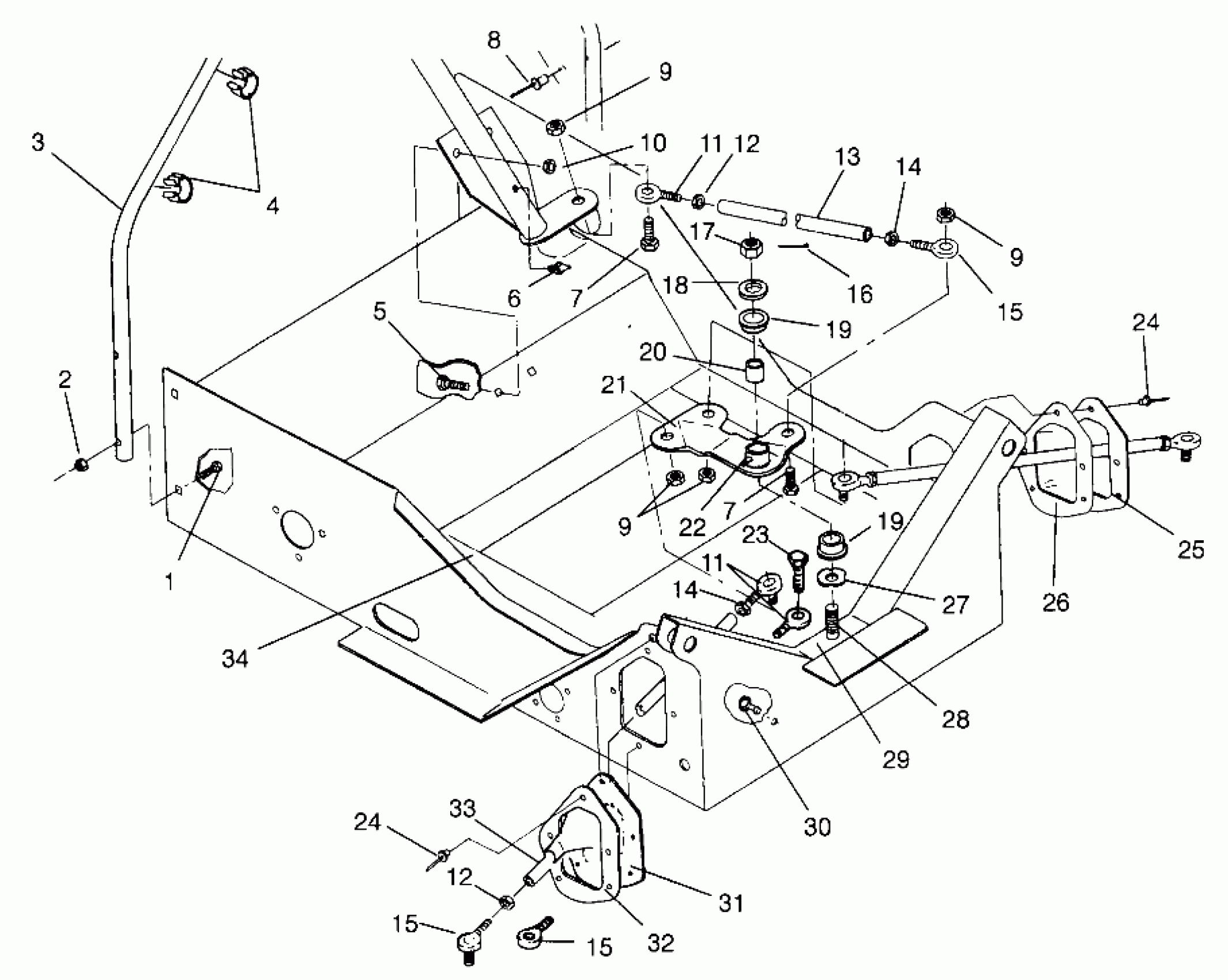

Polaris XLT RMK - 0960956 STEERING XLT RMK 0960956, XLT SKS 0960556 and EUROPEAN XLT SKS E960556 (4931813181B006) Diagram

#

Description
Price

1

BOLT-CARRIAGE(10)

7512275

$3.99

2

NUT-LOCK(10)

7542122

$1.49

3

HOOP,STEERING

1012380-067

Unavailable

4

CLIP(10)

7080278

$2.63

5

BOLT(10) Substituted by 7512377

7512394

Unavailable

6

FITTING,LUB/VEN(10)

7080561

$4.79

7

BOLT(10)

7512404

$3.99

7

BOLT(10)

7512404

$3.99

8

RIVET-3/16-.090-.290

7661637

$1.49

9

NUT LOCK(10)

7542403

$3.99

9

NUT LOCK(10)

7542403

$3.99

9

NUT LOCK(10)

7542403

$3.99

10

NUT-5/16-18 NYLOK-Y

7542324

$1.49

11

ROD END, LH. (RMK)

7060164

$48.56

11

ROD END,LH,3/8"HI-ANGLE Substituted by 7061005 (SKS)

7060160

Unavailable

11

ROD END, LH. (RMK)

7060164

$48.56

11

ROD END,LH,3/8"HI-ANGLE Substituted by 7061005 (SKS)

7060160

Unavailable

12

NUT

7542424

$1.49

12

NUT

7542424

$1.49

13

ROD-DRAG LINK

5332712

Unavailable

14

NUT HEX(10)

7542401

$2.39

14

NUT HEX(10)

7542401

$2.39

15

ROD END, RH. (RMK)

7060165

$48.56

15

ROD END,RH,3/8"HI-ANGLE Substituted by 7060174 (SKS)

7060161

$48.56

15

ROD END, RH. (RMK)

7060165

$48.56

15

ROD END,RH,3/8"HI-ANGLE Substituted by 7060174 (SKS)

7060161

$48.56

15

ROD END, RH. (RMK)

7060165

$48.56

15

ROD END,RH,3/8"HI-ANGLE Substituted by 7060174 (SKS)

7060161

$48.56

16

PIN COTTER(10)

7661203

$1.49

17

NUT FLEX,(10) (SKS)

7542703

Unavailable

17

NUT(10) (RMK)

7542712

$9.59

18

WASHER(10)

7555721

$1.49

19

BUSHING

3563907

$3.99

19

BUSHING

3563907

$3.99

20

BUSHING

5010322

Unavailable

21

STEERING ASM,CTR. (SKS)

1822266

$38.49

21

STRG.ASM,CTR. Substituted by 1822266 (RMK)

1822221

Unavailable

22

ZERK,FITTING,THREADED(10)

7080433

$1.49

23

BOLT(10)

7515528

$8.79

24

RIVET(50)

7621340

$0.56

24

RIVET(50)

7621340

$0.56

25

PLATE,BOOTSEAT,BLK. (SKS)

5211454-067

Unavailable

25

PLATE,BOOTSEAL,BLK. (RMK)

5210904-067

$5.71

26

BOOT , LH (RMK)

5410388

Unavailable

26

BOOT,LH,TIE-ROD (SKS)

5410867

Unavailable

27

WASHER,WAVE(10)

7555735

$3.99

28

BOLT(10)

7512682

Unavailable

29

BLOCK,STRG,(CAST) (SKS)

5630563

$32.37

29

BLOCK, STEERING (RMK)

5630375

Unavailable

30

CLIP, PLASTIC(10)

4020139

$4.79

31

BOOT-TIE ROD (RMK)

5410328

Unavailable

31

BOOT,RH,TIE-ROD (SKS)

5410868

$12.70

32

PLATE,RH,BOOTSEAL,BLK. (SKS)

5211453-067

$15.67

32

PLATE,LH,BOOTSEAL,BLK. (RMK)

5210959-067

Unavailable

33

ROD,TIE,BLACK (RMK)

5332713-067

Unavailable

33

TIEROD,BLK. (SKS)

5020820-067

Unavailable

34

TRIM,EDGE,6FT,BLACK [No Longer Available]

5521131

Unavailable
