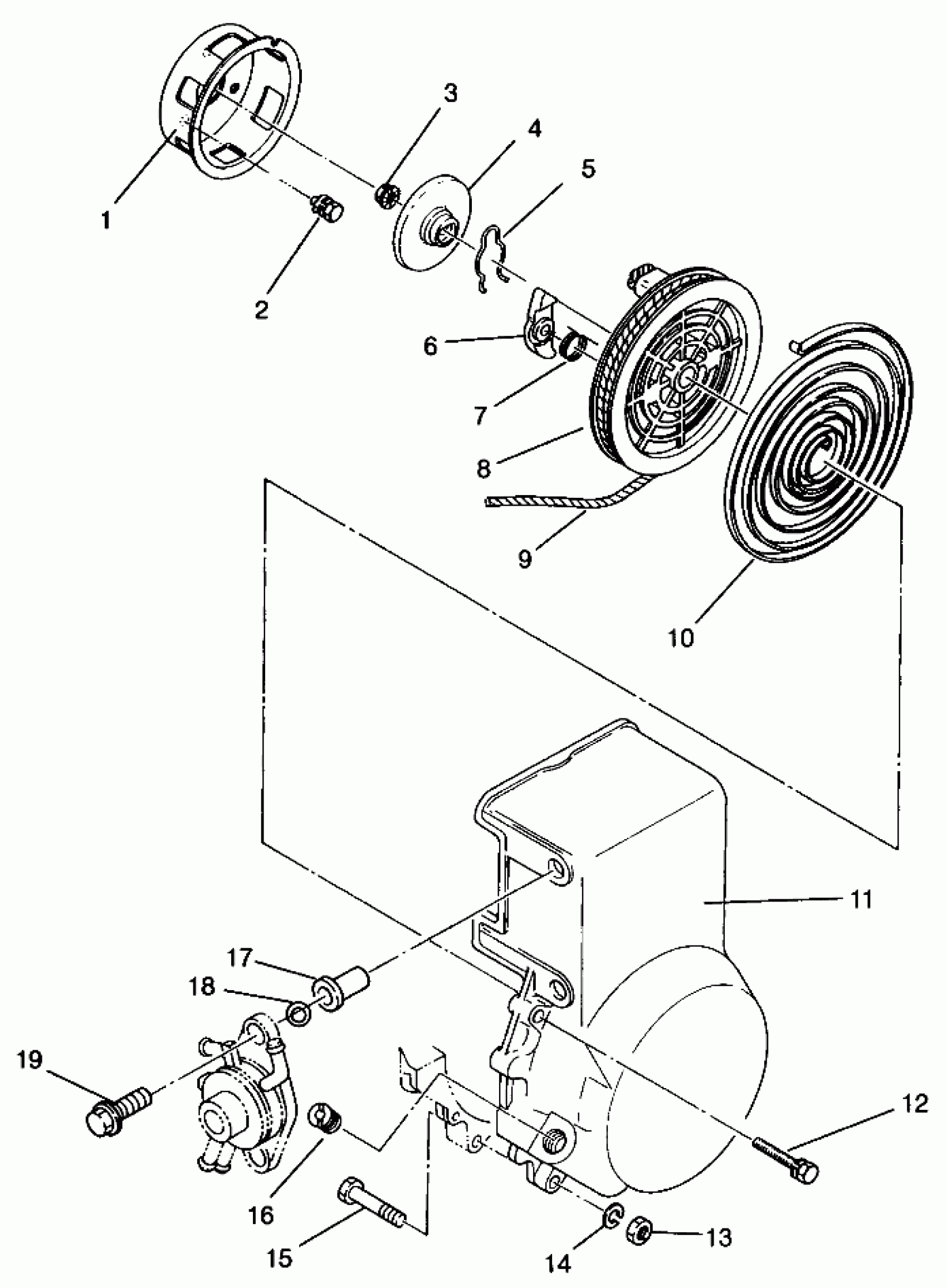

Polaris XLT RMK - 0960956 RECOIL STARTER XLT RMK 0960956, XLT SKS 0960556 and EUROPEAN XLT SKS E96055 (4931813181D002) Diagram

Description

Price

Pulley, Starting

3083312

$36.41

BOLT&WASHER ASM.

3084224

Unavailable

NUT, FLANGE ,(10)

3083381

$2.99

Plate, Friction

3083464

$28.32

Spring, Friction

3083379

$24.27

Ratchet

3083378

$20.22

Spring, Return

3083463

$4.03

REEL, REWIND

3083377

$56.65

ROPE,100 FT,NYL.STARTER

2870621

$34.99

Spring, Spiral

3083376

$179.11

STARTER, RECOIL, CPL. (Incl. 3-11, 16)

3084470

Unavailable

CASE, STARTER

3084471

$205.99

BOLT&WASHER

3083078

Unavailable

NUT(10)

3080119

$2.39

WASHER LOCK ,(10)

3080530

$3.19

BOLT(10)

3084773

$1.49

GUIDE-ROPE

3083107

Unavailable

NUT-RUBBER

3083240

Unavailable

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

SCREW&WASHER,(10)

3083784

$2.39
