PISTON and CRANKSHAFT XLT RMK 0960956, XLT SKS 0960556 and EUROPEAN XLT SKS (4931813181C011)

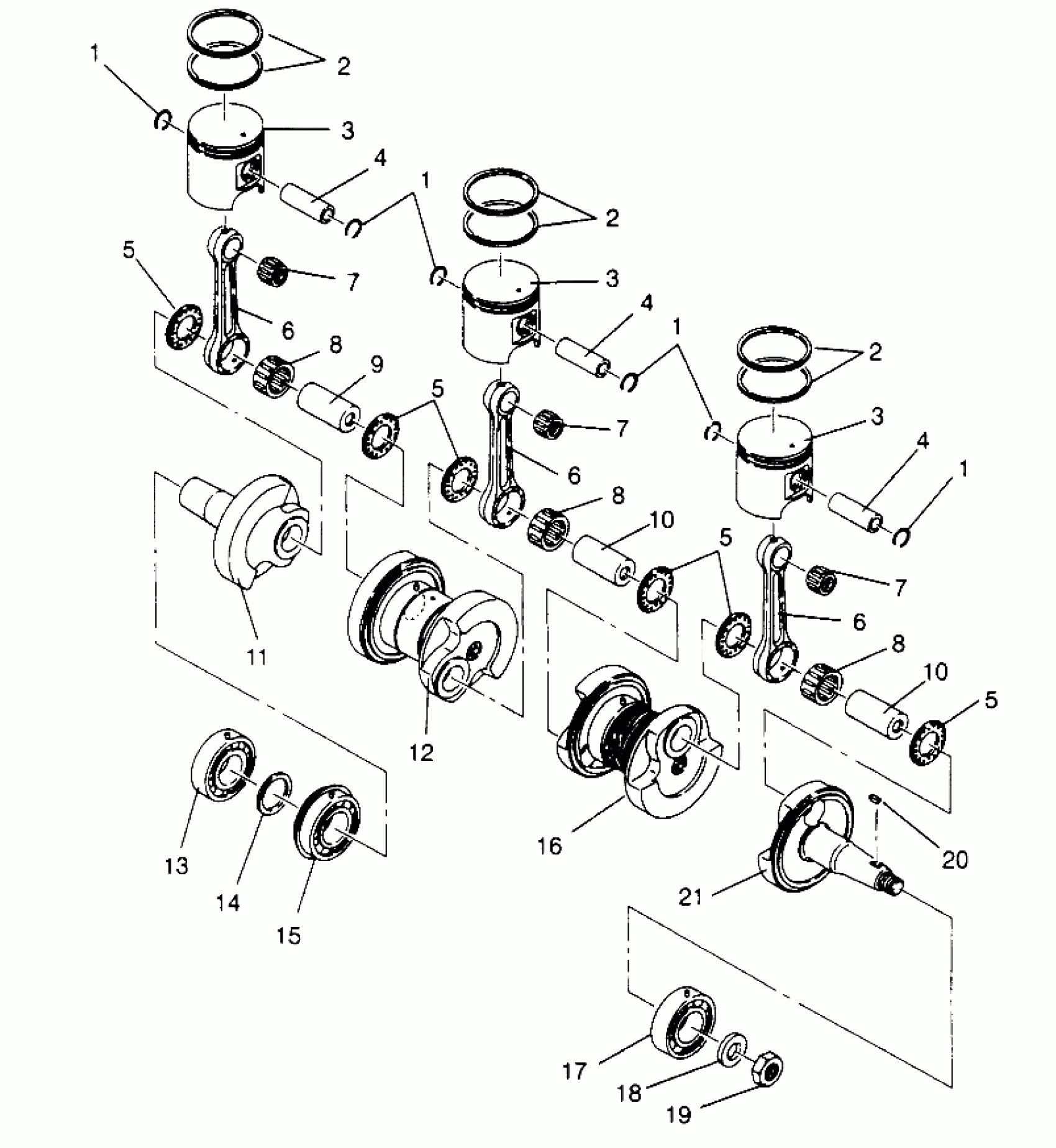

Polaris XLT RMK - 0960956 PISTON and CRANKSHAFT XLT RMK 0960956, XLT SKS 0960556 and EUROPEAN XLT SKS (4931813181C011) Diagram
#
1
CLIP,PISTON PIN,(10)
3084456
Unavailable
1
CLIP,PISTON PIN,(10)
3084456
Unavailable
1
CLIP,PISTON PIN,(10)
3084456
Unavailable
1
CLIP,PISTON PIN,(10)
3084456
Unavailable
2
RING, PISTON .010 O/S (0.25mm/.010" O/S)
3083358
Unavailable
2
RING,PISTON .020 O/S (0.50mm/.020" O/S)
3083359
Unavailable
2
RING, PISTON (Standard)
3083349
Unavailable
2
RING, PISTON .010 O/S (0.25mm/.010" O/S)
3083358
Unavailable
2
RING,PISTON .020 O/S (0.50mm/.020" O/S)
3083359
Unavailable
2
RING, PISTON (Standard)
3083349
Unavailable
2
RING, PISTON .010 O/S (0.25mm/.010" O/S)
3083358
Unavailable
2
RING,PISTON .020 O/S (0.50mm/.020" O/S)
3083359
Unavailable
2
RING, PISTON (Standard)
3083349
Unavailable
3
PISTON,STD. Substituted by 3085873 (Standard)
3085432
$138.08
3
PISTON,(.25MM O/S) Substituted by 3085874 (0.25m/.010" O/S)
3085433
$118.99
3
PISTON,(.50MM O/S) Substituted by 3085875 (0.50m/.020" O/S)
3085434
Unavailable
3
PISTON,STD. Substituted by 3085873 (Standard)
3085432
$138.08
3
PISTON,(.25MM O/S) Substituted by 3085874 (0.25m/.010" O/S)
3085433
$118.99
3
PISTON,(.50MM O/S) Substituted by 3085875 (0.50m/.020" O/S)
3085434
Unavailable
3
PISTON,STD. Substituted by 3085873 (Standard)
3085432
$138.08
3
PISTON,(.25MM O/S) Substituted by 3085874 (0.25m/.010" O/S)
3085433
$118.99
3
PISTON,(.50MM O/S) Substituted by 3085875 (0.50m/.020" O/S)
3085434
Unavailable
4
Pin, Piston
3085021
Unavailable
4
Pin, Piston
3085021
Unavailable
4
Pin, Piston
3085021
Unavailable
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
6
ROD, CONNECTING Substituted by 3085422
3084446
Unavailable
6
ROD, CONNECTING Substituted by 3085422
3084446
Unavailable
6
ROD, CONNECTING Substituted by 3085422
3084446
Unavailable
7
BEARING,SMALL END
3080998
Unavailable
7
BEARING,SMALL END
3080998
Unavailable
7
BEARING,SMALL END
3080998
Unavailable
8
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
8
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
8
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
9
PIN-CRANK 2 (51mm)
3083254
Unavailable
10
PIN, CRANK, #1 (49mm)
3084447
$32.15
10
PIN, CRANK, #1 (49mm)
3084447
$32.15
11
CRANKSHAFT 3
3084445
Unavailable
12
CRANKSHAFT,PTO SIDE (PTO Side) (Incl. 9)
3084444
$549.99
13
BEARING, BALL
3084586
$44.99
14
SPACER,CRANKSHAFT
3080447
$1.99
15
BEARING, BALL
3084599
Unavailable
16
CRANKSHAFT,CENTER Substituted by 3085421 (Center) (Incl. 5, 6, 8-10, 12, 16)
3084442
$999.99
16
CRANKSHAFT,MAG SIDE (MAG Side) (Incl. 10)
3084443
Unavailable
17
BEARING, BALL
3084681
Unavailable
18
Washer
3084457
Unavailable
19
NUT
3083093
$19.99
20
KEY Substituted by 3081543
3080130
Unavailable
21
CRANKSHAFT 1 Substituted by 3084597
3084441
$226.99
21
CRANKSHAFT ASM. Substituted by 3085420 (Incl. 5, 6, 8-17, 21)
3084679
$1,504.99
