OIL TANK/AIR BOX XLT RMK 0960956, XLT SKS 0960556 and EUROPEAN XLT SKS E960 (4931813181C007)

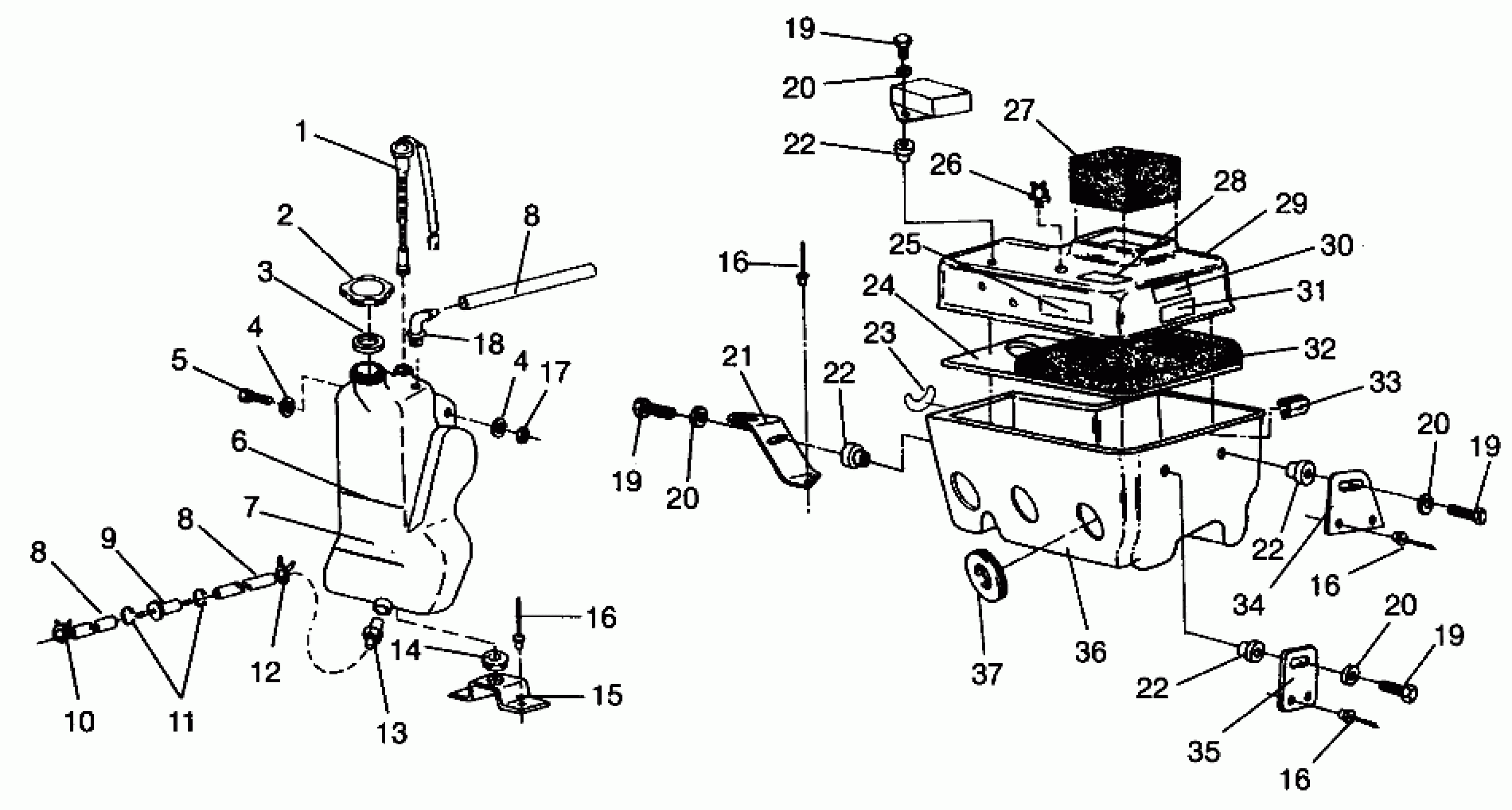

Polaris XLT RMK - 0960956 OIL TANK/AIR BOX XLT RMK 0960956, XLT SKS 0960556 and EUROPEAN XLT SKS E960 (4931813181C007) Diagram
#
1
SENSOR,OIL LEVEL,W/CONN.
4040040
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
WASHER,WROUGHT(10)
7558302
$1.59
4
WASHER,WROUGHT(10)
7558302
$1.59
5
BOLT(10)
7512240
$3.99
6
DECAL, OIL LEVEL [No Longer Available]
7072160
Unavailable
7
Tank, Oil
5431437
Unavailable
8
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
8
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
8
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
9
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
10
CLAMP-HOSE,(10)
7080236
$1.59
11
HOSE CLAMP, RED
7080003
$1.49
12
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
13
FITTING, OUTLET
7052042
$8.99
14
GROMMET RUBBER
5410021
Unavailable
15
BRACKET
5223985
Unavailable
16
RIVET-3/16-.090-.290
7661637
$1.49
16
RIVET-3/16-.090-.290
7661637
$1.49
16
RIVET-3/16-.090-.290
7661637
$1.49
16
RIVET-3/16-.090-.290
7661637
$1.49
17
NUT-LOCK(10)
7542122
$1.49
18
FITTING,90 DEG,1/8,(10)
7052095
$4.79
19
SCREW(10)
7512279
$1.49
19
SCREW(10)
7512279
$1.49
19
SCREW(10)
7512279
$1.49
19
SCREW(10)
7512279
$1.49
20
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
20
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
20
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
20
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
21
BRKT,AIR SILENCER,W/TAB,BLK.
5240824-067
Unavailable
22
NUT-WELL(10)
7541923
$5.59
22
NUT-WELL(10)
7541923
$5.59
22
NUT-WELL(10)
7541923
$5.59
22
NUT-WELL(10)
7541923
$5.59
23
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
24
PLATE, AIR SILENCER
5850102
Unavailable
25
DECAL,COOLING SYS. [No Longer Available]
7073721
Unavailable
26
CLAMP,WIRE ROUTING(10)
7080409
$2.39
27
INTAKE ASM, FOAM
1253107
$36.41
28
DECAL,CAUTION(AIR BOX) [No Longer Available]
7072891
Unavailable
29
COVER,SILENCER,DRILLED
5432042
Unavailable
30
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
31
DECAL, GREASING [No Longer Available]
7073426
$7.27
32
BAFFLE ASM.
1253110
Unavailable
33
CLIP, AIR BOX,(10)
7670055
$7.99
34
BRACKET, SILENCER
5211274
$9.70
35
BRKT,FRT.SILENCER
5211296-067
$4.38
36
SILENCER,INTAKE,DRILLED
5431505
Unavailable
37
BOOT,AIR SILENCER MOD.
5410793
Unavailable
