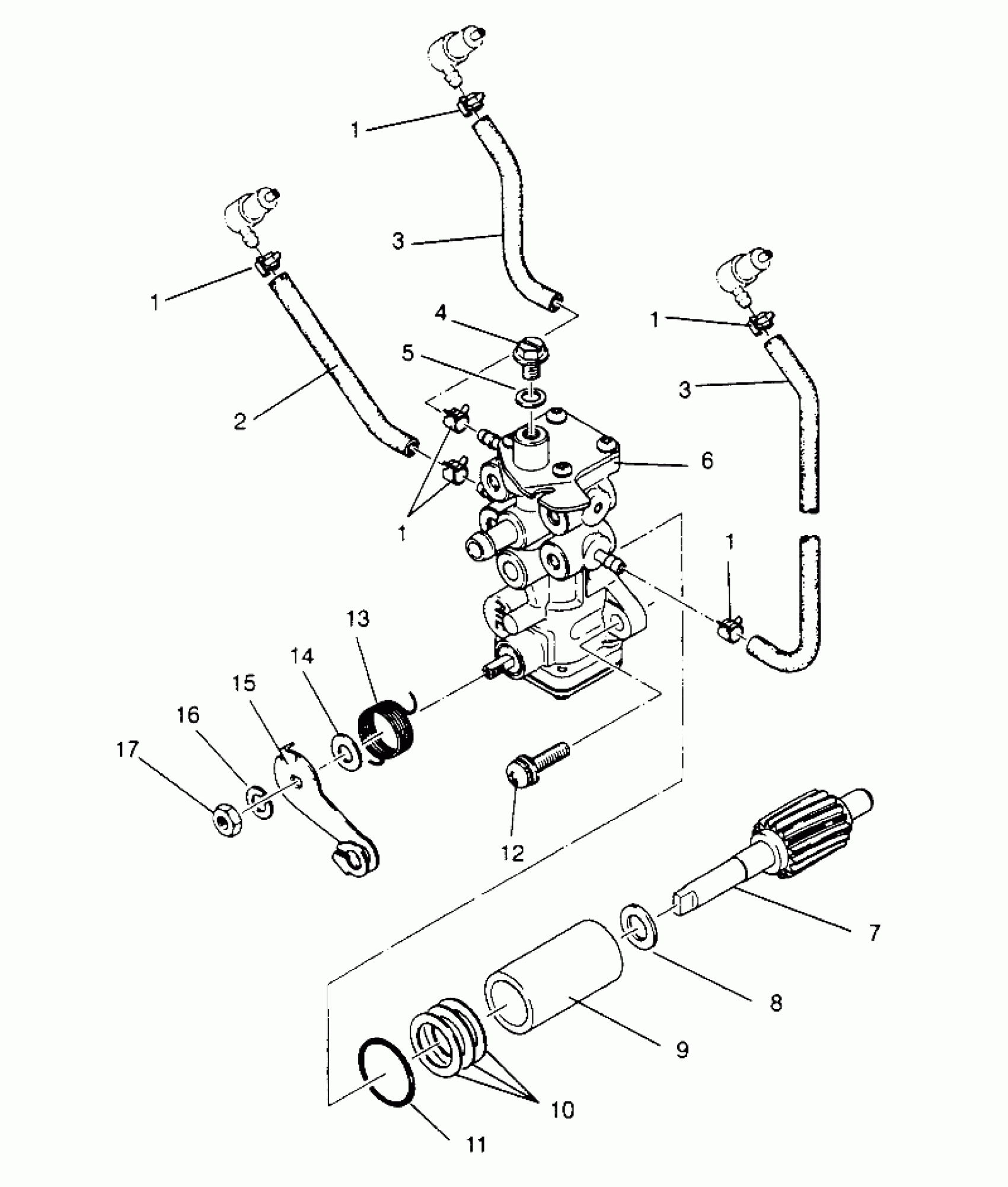

Polaris XLT RMK - 0960956 OIL PUMP XLT RMK 0960956, XLT SKS 0960556 and EUROPEAN XLT SKS E960556 (4931813181C014) Diagram

#

Description
Price

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

1

CLAMP-HOSE,(10)

3083141

$1.49

2

PIPE 1,VINYL

3084467

$28.32

3

PIPE#3,VINYL(L=315) Substituted by 3085591

3083488

Unavailable

3

PIPE#3,VINYL(L=315) Substituted by 3085591

3083488

Unavailable

4

SCREW-AIR VENT

3083125

Unavailable

5

PACKING(10)

3083126

$4.03

6

PUMP,OIL (Incl. 4-6, 11, 13-17)

3084771

Unavailable

7

GEAR,SMALL,OIL PUMP

3083131

$89.99

8

SPACER

3083130

$1.59

9

BUSHING(OIL PUMP)

3083353

$31.99

10

SPACER #3

3083673

Unavailable

10

SPACER #2

3083672

Unavailable

10

SPACER #1

3083671

Unavailable

11

O RING

3083127

Unavailable

12

SCREW&WASHER,(10)

3083783

$2.39

13

SPRING-RETURN

3083123

Unavailable

14

COLLAR, CAMSHAFT(10)

3083445

$2.39

15

LEVER, CONTROL

3085207

Unavailable

16

WASHER-SPRING(10)

3083121

$299.99

17

NUT(10)

3083120

$3.19
