FRONT TORQUE ARM XLT RMK 0960956, XLT SKS 0960556 and EUROPEAN XLT SKS E960 (4931813181B014)

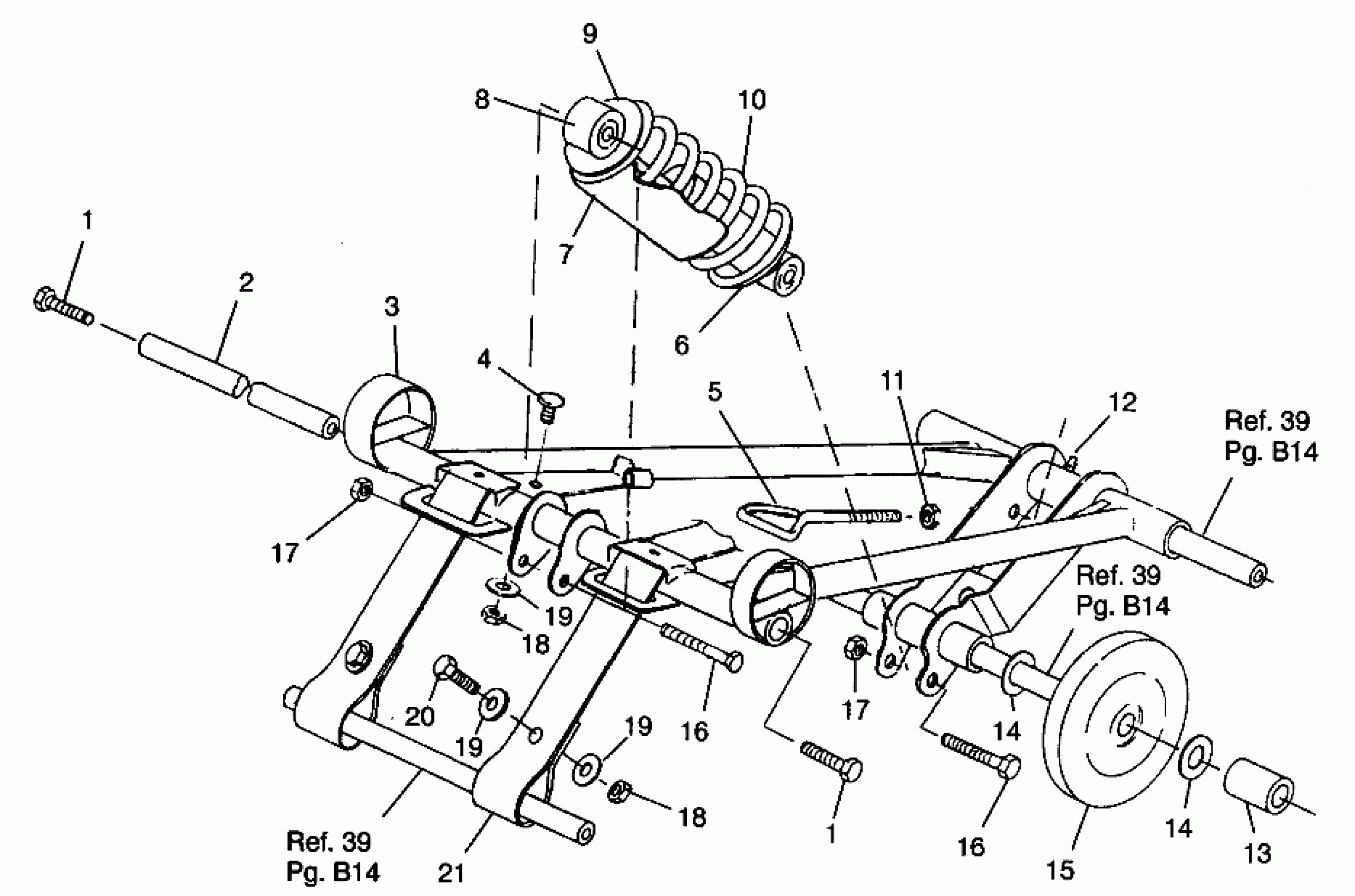

Polaris XLT RMK - 0960956 FRONT TORQUE ARM XLT RMK 0960956, XLT SKS 0960556 and EUROPEAN XLT SKS E960 (4931813181B014) Diagram
#
Description
Price
1
BOLT,NYLOC,BLACK(10) Substituted by 7515432
7515493
Unavailable
1
BOLT,NYLOC,BLACK(10) Substituted by 7515432
7515493
Unavailable
2
SHAFT, MTG, REAR
5020570
Unavailable
3
ARM,FR.TORQUE Substituted by 1541140-067
1540973-067
Unavailable
4
BOLT(10)
7512377
$4.79
5
BOLT,EYE
7010050
Unavailable
6
RETAINER,SPRING Substituted by 5245067
5241276-067
Unavailable
7
SHIELD-SPRING
5430671
$24.27
8
SHOCK,FR.TRACK Substituted by 7041743
7041430
Unavailable
9
RETAINER,SPRING,SLOTTED
5020618
$24.99
10
SPRING,BLACK,COMP.
7041253-067
$95.22
11
NUT-5/16-18 NYLOK-Y
7542324
$1.49
12
ZERK,FITTING,THREADED(10)
7080433
$1.49
13
SPACER, OUTER
5332784
Unavailable
14
MACHINERY BUSHING(10)
7556301
$3.19
14
MACHINERY BUSHING(10)
7556301
$3.19
15
Asm., Bogie Wheel (See Pg., Ref.)
-------
Unavailable
16
BOLT(10)
7515415
$1.49
16
BOLT(10)
7515415
$1.49
17
NUT LOCK(10)
7542403
$3.99
17
NUT LOCK(10)
7542403
$3.99
18
NUT LOCK(10)
7542321
$1.49
18
NUT LOCK(10)
7542321
$1.49
19
WASHER(10)
7555716
$1.59
19
WASHER(10)
7555716
$1.59
19
WASHER(10)
7555716
$1.59
20
BOLT(10)
7515307
$3.99
21
STRAP,LIMITER,FRONT
5411045
Unavailable
