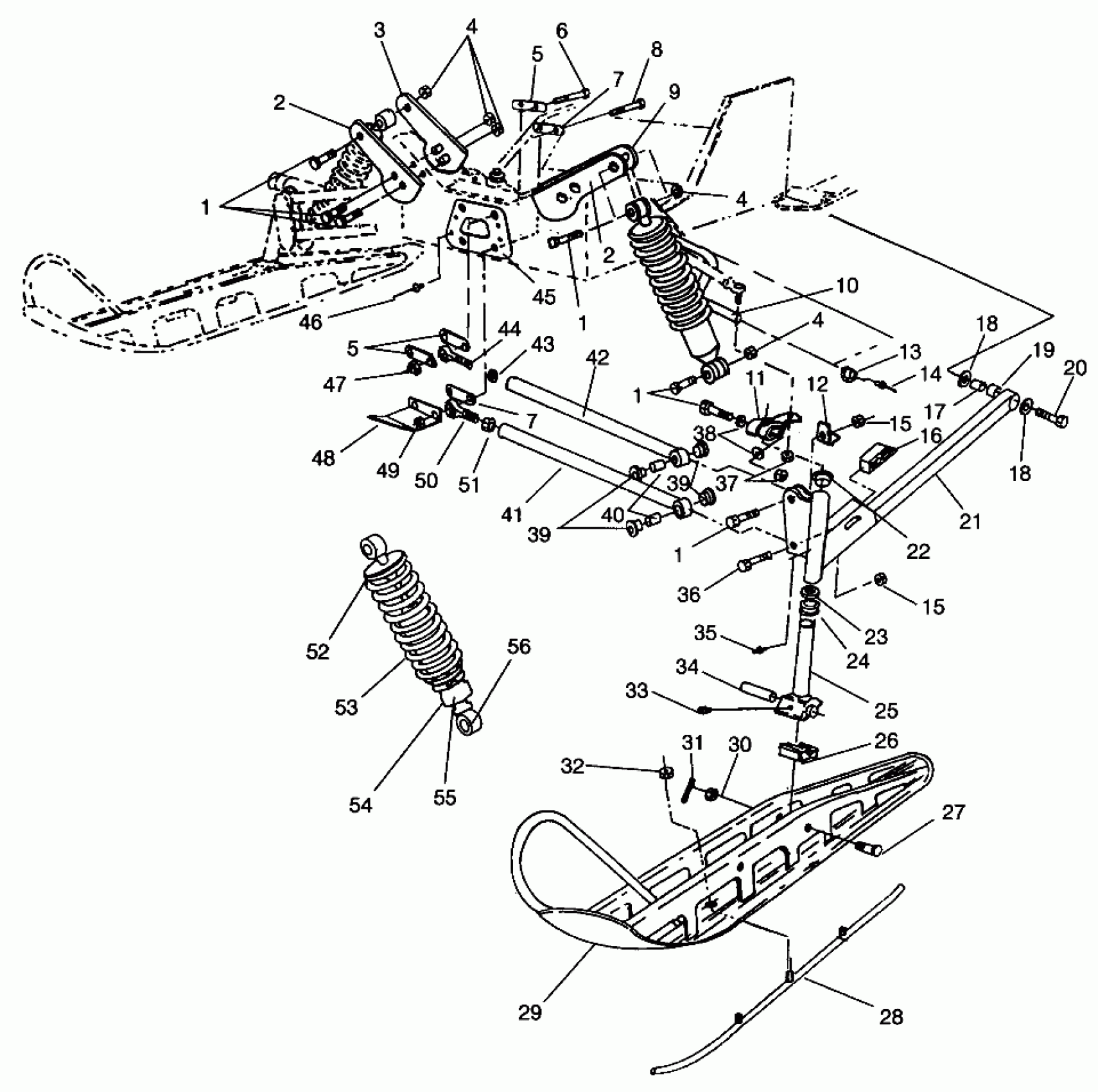

Polaris XLT RMK - 0960956 FRONT SUSPENSION and SKI XLT SKS 0960556 and EUROPEAN XLT SKS E960556 (4931813181B003) Diagram

#

Description
Price

1

BOLT(10) Substituted by 7515415

7515515

Unavailable

1

BOLT(10) Substituted by 7515415

7515515

Unavailable

1

BOLT(10) Substituted by 7515415

7515515

Unavailable

1

BOLT(10) Substituted by 7515415

7515515

Unavailable

2

PLATE,SHOCK MT.EXT,BLK.

5211449-067

Unavailable

2

PLATE,SHOCK MT.EXT,BLK.

5211449-067

Unavailable

3

MT,RH,SHOCK EXT.BLK.

1012053-067

Unavailable

4

NUT, NYLOC(10)

7542453

Unavailable

4

NUT, NYLOC(10)

7542453

Unavailable

4

NUT, NYLOC(10)

7542453

Unavailable

5

STRAP,SPACER TOP

5211344

$7.27

5

STRAP,SPACER TOP

5211344

$7.27

6

BOLT(10)

7512551

Unavailable

7

STRAP,SPACER BOTTOM

5211345

$12.99

7

STRAP,SPACER BOTTOM

5211345

$12.99

8

BOLT(10)

7512678

$19.99

9

MT,LH,SHOCK EXT.BLK.

1012052-067

Unavailable

10

BAR,SWAY,9/16-41

5224678-067

Unavailable

11

ARM,STEERING

5241244-067

Unavailable

12

STOP,LH,STEERING

5241207-067

Unavailable

12

STOP,RH,STEERING

5241208-067

Unavailable

13

BUSHING-SWAYBAR

5410383

Unavailable

14

RIVET(50) Substituted by 7661130

7661643

Unavailable

15

NUT, FLEXLOC(10) Substituted by 7542411

7542452

Unavailable

15

NUT, FLEXLOC(10) Substituted by 7542411

7542452

Unavailable

16

SLIDE,SWAYBAR

5432048

Unavailable

17

PIVOT-TRAILING ARM

5410382

Unavailable

18

WASHER(10)

7555721

$1.49

18

WASHER(10)

7555721

$1.49

19

TUBE, BUSHING

5010310

$9.70

20

BOLT(10)

7512557

$7.60

21

ARM,TRLG,LH. (Incl. 17, 19)

1822262

Unavailable

21

ARM,TRLG,RH (Incl. 17, 19)

1822264

Unavailable

22

BUSHING-FLANGE

3573909

$2.39

23

WASHER SPECIAL(10)

7556509

$1.59

24

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

25

SPINDLE, BLK.

6230073-067

Unavailable

26

STOP, RUBBER

5521276

Unavailable

27

BOLT(10)

7515541

Unavailable

28

SKAG,PR.,CARBIDE (Set of 2)

2870693

$69.99

29

SKI WELD, BLK

1820332-067

Unavailable

30

NUT, CASTLE(10) Substituted by 7542438

7542457

Unavailable

31

PIN, COTTER(10) Substituted by 7661205

7661209

Unavailable

32

NUT-5/16-18 NYLOK-Y

7542324

$1.49

33

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

34

BUSHING,PIVOT,(10)

5010158

$19.99

35

ZERK,FITTING,THREADED(10)

7080433

$1.49

36

BOLT(10) Substituted by 7517583

7515491

Unavailable

37

NUT, FLEXLOC B(10) Substituted by 7542403

7542456

$3.97

38

WASHER(10) Substituted by 7555832

7555851

Unavailable

39

BUSHING-RAD ROD PIVOT

5432074

Unavailable

39

BUSHING-RAD ROD PIVOT

5432074

Unavailable

40

BUSHING,RAD.ROD,UPP/LOWER

5010356

Unavailable

41

ROD,RAD,LOWER

1822292-067

Unavailable

42

ROD,RAD,UPPER

1822297-067

Unavailable

43

NUT JAM(10)

7542520

$2.39

44

ROD END, RH Substituted by 7061010

7060155

Unavailable

45

BRACE,BLKHD/STRG,BLK.

5211589-067

Unavailable

46

RIVET-3/16-.090-.290

7661637

$1.49

47

NUT, LOCK,(10)

7542503

$10.39

48

BRACE, PAN

5223997-067

Unavailable

49

NUT FLEX,(10)

7542703

Unavailable

50

ROD END,RH Substituted by 7061011

7060156

Unavailable

51

NUT-JAM(10)

7542711

$2.39

52

RETAINER,SPRING,SLOTTED

5020618

$24.99

53

SPRING,.306 COMP(LT),BLK.

7041405-067

Unavailable

54

RETAINER,SPRING,BODY,THREADED

1500063

$44.51

55

RING,SPRING PRELOAD ADJ.

5431734

$52.60

56

SHOCK,GAS,IFS

7041423

Unavailable
