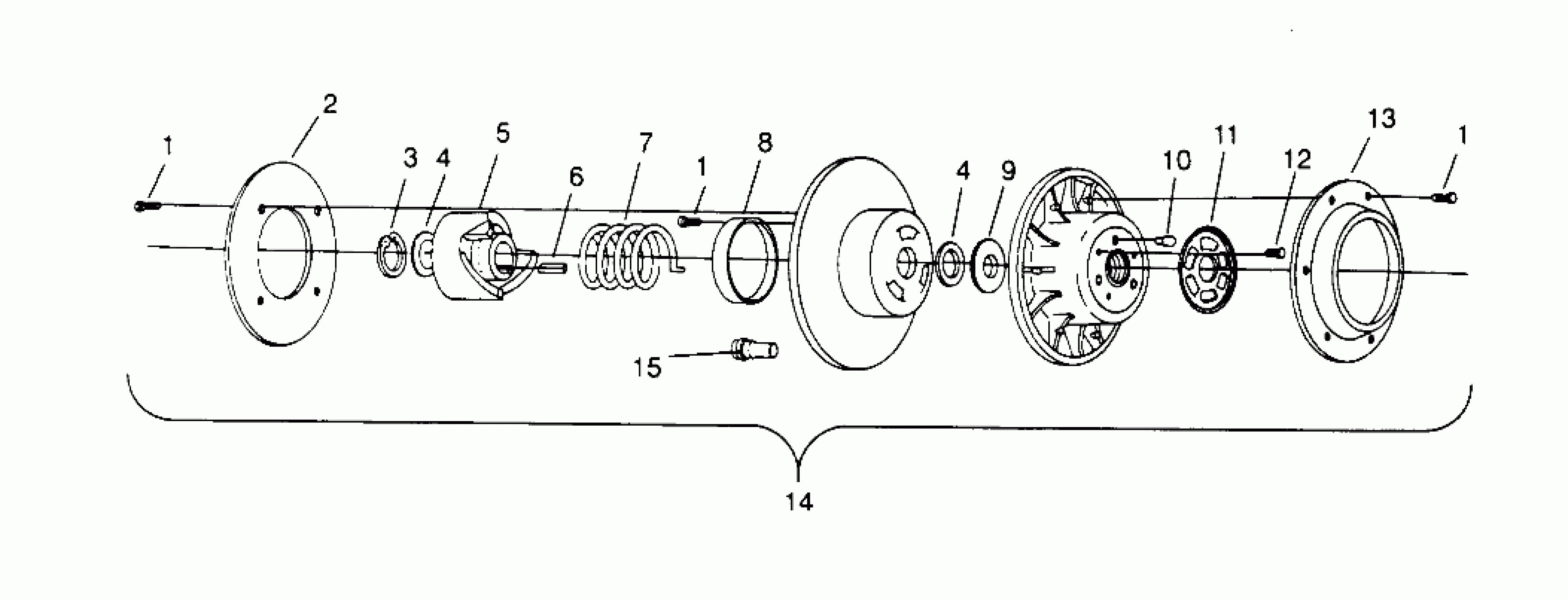

Polaris XLT RMK - 0960956 DRIVEN CLUTCH XLT RMK 0960956, XLT SKS 0960556 and EUROPEAN XLT SKS E960556 (4931813181C004) Diagram

#

Description
Price

1

SCREW(10) (RMK)

7512048

Unavailable

1

SCREW(10) (SKS)

7512048

Unavailable

1

SCREW(10) (RMK)

7512048

Unavailable

1

SCREW(10) (SKS)

7512048

Unavailable

1

SCREW(10) (RMK)

7512048

Unavailable

1

SCREW(10) (SKS)

7512048

Unavailable

2

PLATE (SKS Only)

5210749

$30.99

3

RING,RETAINING(10)

7714804

$9.59

4

WASHER(10)

7556804

$1.49

4

WASHER(10)

7556804

$1.49

5

RAMP,DRIVEN,34 DEGREE

5130896

Unavailable

6

KEY SQUARE(10)

7721103

$5.65

7

SPRING,CLUTCH,(RED) (Red)

7041198

$52.60

8

BUSHING,D.U.

3569803

Unavailable

9

WASHER(10)

7555899

Unavailable

10

PIN, CLUTCH

5020653

$34.99

11

CAM,DRIVEN,ADJUSTABLE

5222878

$29.03

12

SCREW(10)

7515133

$3.99

13

CAP DRIVEN (SKS Only)

5230101

Unavailable

14

CLUTCH,34DEG.ADJ,DRIVEN Substituted by 1321925 (Incl. 1-15) (SKS)

1322156

Unavailable

14

CLUTCH,34DEG,DRIVEN Substituted by 1322156 (Incl. 1, 3-12, 15) (RMK)

1322154

Unavailable

15

BUTTON-RAMP,(10)

5430466

$6.46
