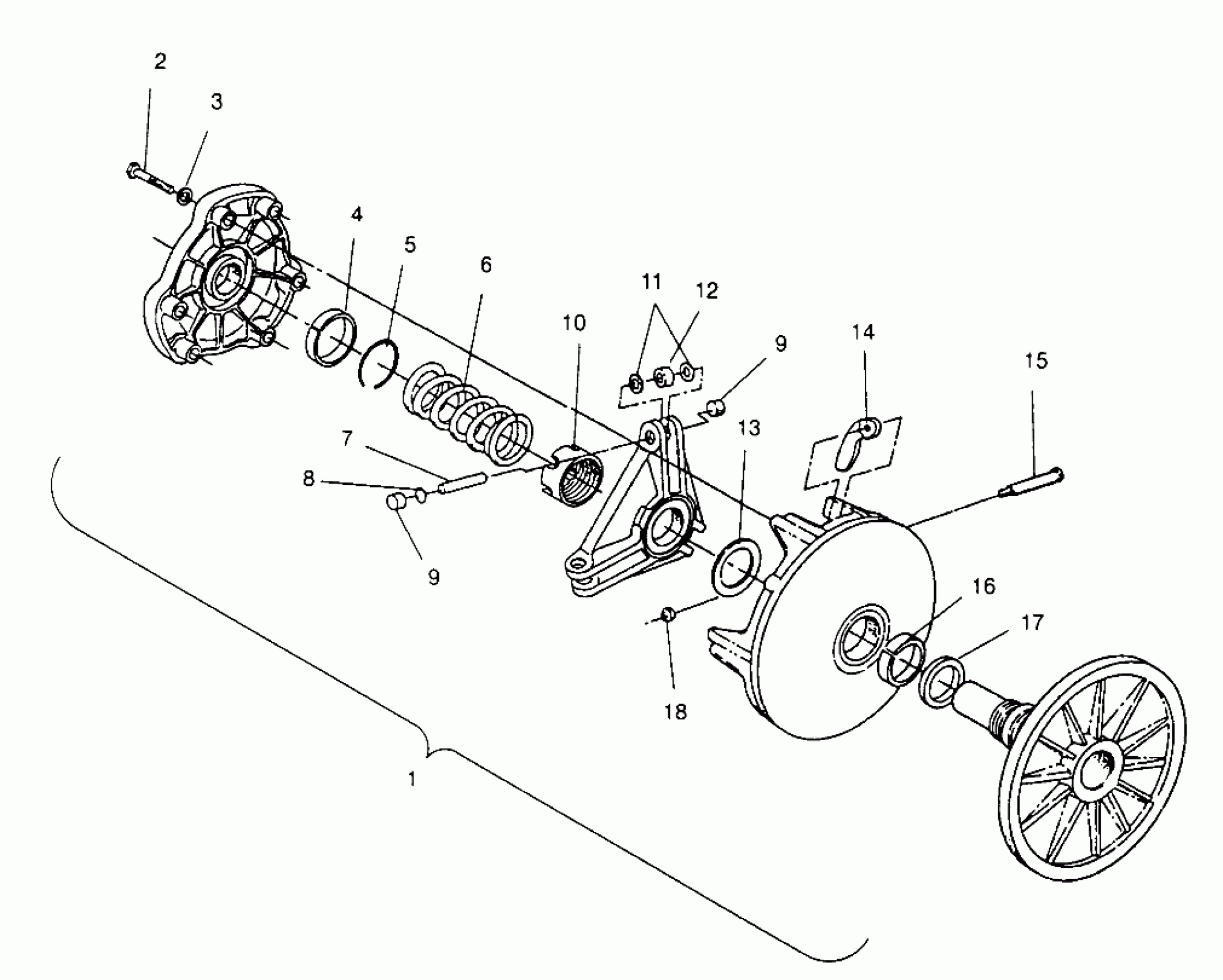

Polaris XLT RMK - 0960956 DRIVE CLUTCH XLT RMK 0960956, XLT SKS 0960556 and EUROPEAN XLT SKS E960556 (4931813181C003) Diagram

#

Description
Price

1

CLUTCH,BASIC#62(DRIVE) Substituted by 1321714 (Less 6, 14)

1321673

Unavailable

2

BOLT,(10)

7512265

$3.99

3

LOCK WASHER(10)

7552801

$1.59

4

BEARING, COVER,(10)

3576510

$9.59

5

RING-RETAINING,COVER

7710417

$1.49

6

SPRING-CLUTCH(GOLD) (Gold)

7041148

$56.65

7

PIN-ROLLER

5020422

$2.39

8

Kit - Shim, Drive Clutch

2200387

$24.27

9

BUTTON, GUIDE,(10)

5430445

$6.39

9

BUTTON, GUIDE,(10)

5430445

$6.39

10

NUT-JAM

5020425

$23.99

11

WASHER,MULTILUBE

5430945

$1.59

12

ASM-ROLLER AND BUSHING

1321457

$40.46

13

SPACER(10)

5210754

Unavailable

13

SPACER(10)

5210752

Unavailable

13

SPACER(10)

5210753

Unavailable

14

WT/BUSH.ASM,10M(3) (SKS)

1321528

$40.46

14

WT,SHIFT,10-M-W(6) Substituted by 1321527 (RMK)

5630369

Unavailable

15

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

16

SLEEVE, BEARING

3576502

$23.99

17

INSERT-MOVEABLE

5010188

$7.99

18

NUT FLEX LOC(10)

7541906

$3.19
