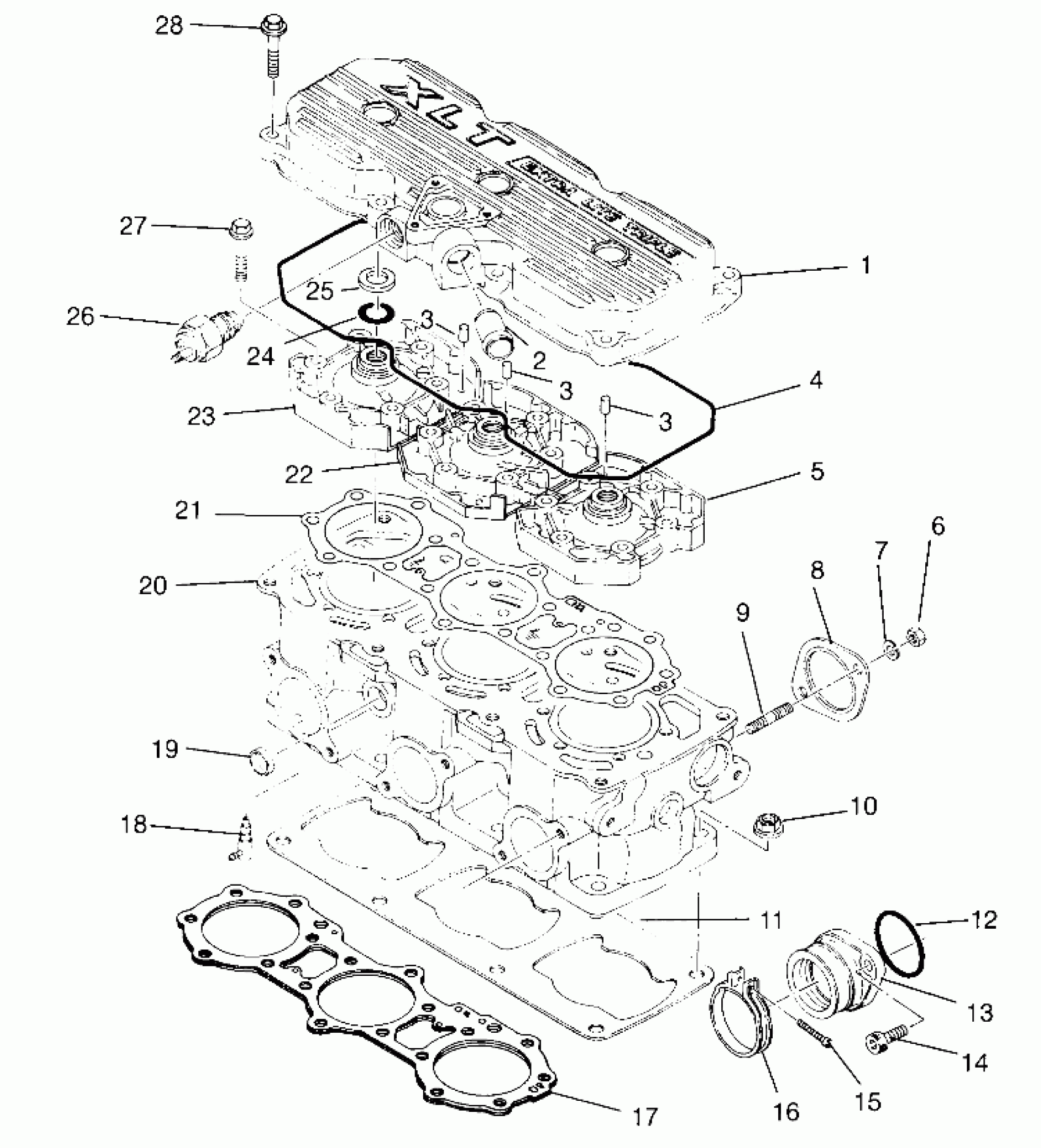

Polaris XLT RMK - 0960956 CYLINDER XLT RMK 0960956, XLT SKS 0960556 and EUROPEAN XLT SKS E960556 (4931813181C009) Diagram

COVER,HEAD,(3 CYL) (Incl. 2)

3085190

Unavailable

PIPE, WATER, CPL.

3084431

Unavailable

PIN, DOWEL

3084721

$4.79

PIN, DOWEL

3084721

$4.79

PIN, DOWEL

3084721

$4.79

O-RING, (HEADCOVER) (Head Cover)

3084434

Unavailable

HEAD, CYL.,(MAG) (Mag)

3084674

Unavailable

NUT(10)

3080285

Unavailable

WASHER LOCK ,(10)

3080530

$3.19

GASKET,EXHAUST,NA(10) Substituted by 3086757 (Exhaust) Non-Asbestos

3084439

Unavailable

STUD Substituted by 3085326

3084270

Unavailable

NUT-FLANGE(10)

3082911

$1.99

GASKET, CYLINDER (Cylinder)

3084593

Unavailable

O-RING Substituted by 3085619

3084272

Unavailable

ADAPTER (Incl. 12)

3084438

Unavailable

Bolt, Allen

3081330

$3.99

SCREW,(10)

3081497

$2.39

BAND-CARB MTG. (Incl. 15)

3082257

Unavailable

GASKET #1,HEAD Substituted by 3085613 (Acc. on SKS) (Std. on RMK)

3085003

Unavailable

VALVE, CHECK Substituted by 3086785

3083337

Unavailable

PLUG

3084428

$3.51

CYLINDER (Incl. 9, 19)

3085017

$834.99

GASKET,HEAD (Std.)

3085005

Unavailable

HEAD, CYL.,(CEN) (Cen)

3084675

Unavailable

HEAD, CYL.,(PTO) (PTO)

3084676

Unavailable

O RING

3085192

Unavailable

SPACER (RMK Only)

3084722

Unavailable

SWITCH,THERMAL,IOS (105

3084284

Unavailable

BOLT, FLANGE ,(10)

3084435

Unavailable

Bolt, Flange

3084437

Unavailable
