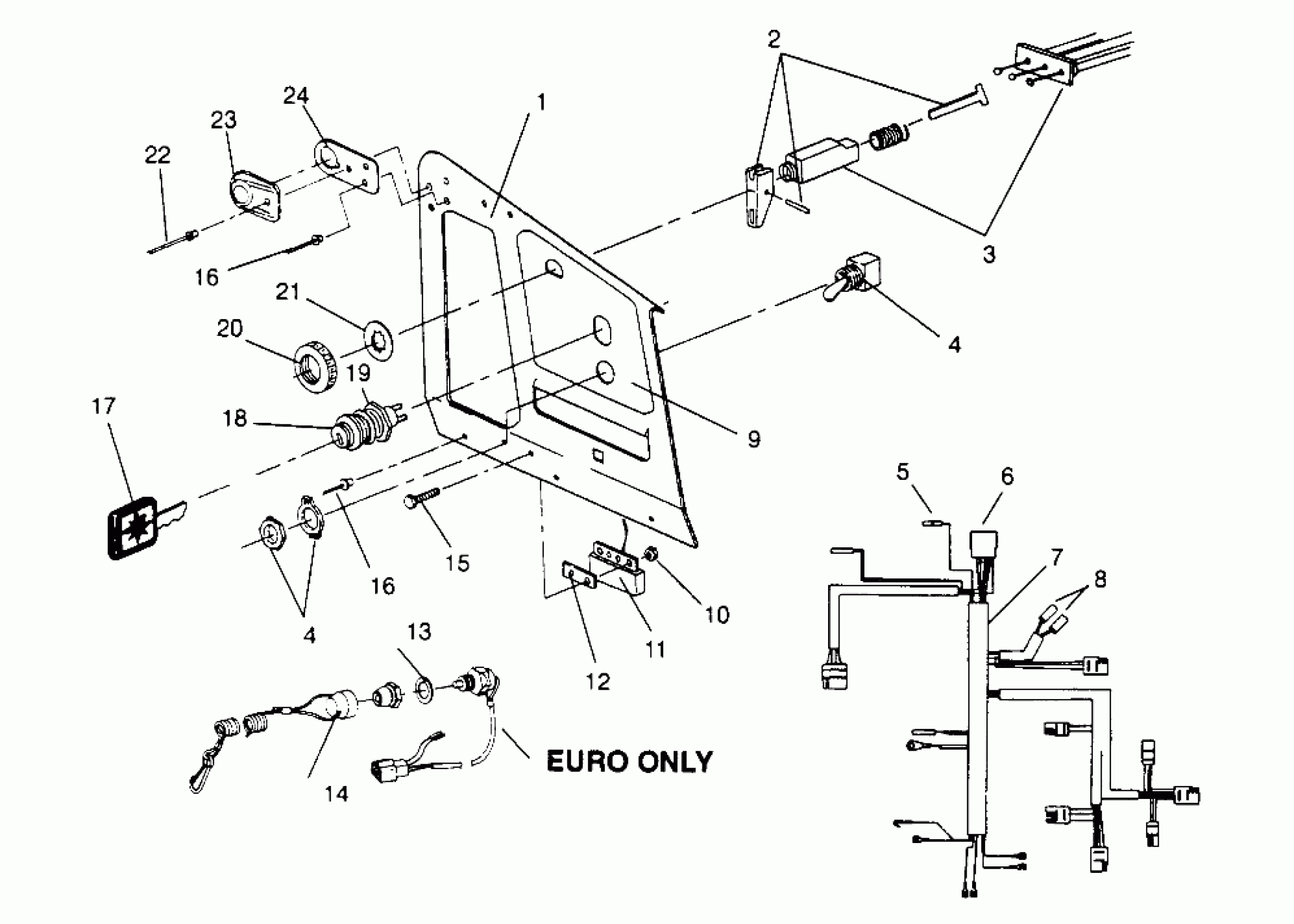

Polaris XLT RMK - 0960956 CONSOLE XLT RMK 0960956, XLT SKS 0960556, and EUROPEAN XLT SKS E960556 (4931813181A012) Diagram

CONSOLE

5222756-067

Unavailable

KIT,CHOKE CONTROL

2200189

$20.22

CABLE, CHOKE

7080283

$109.99

SW,HEATER,HI-LOW

4110077

Unavailable

SW,HEATER,HI-LOW

4110077

Unavailable

HOUSING

4020133

Unavailable

Housing w/Receptacle

4020057

$3.51

HARNESS,MAIN WIRE,(XLT)

2460430

$126.98

Housing

4020153

$1.49

DECAL, CONSOLE [No Longer Available]

7073075

Unavailable

NUT(10)

7541925

$1.49

REGULATOR,14 VAC.LR-9

4060122

Unavailable

SPACER,REGULATOR

5211573

Unavailable

WASHER(10)

7555817

Unavailable

SWITCH,TETHER Substituted by 2870668 (EURO)

4110156

$84.99

BOLT(10)

7512031

$2.23

RIVET,INTERLOCK,B(50)

7661638

$1.49

RIVET,INTERLOCK,B(50)

7661638

$1.49

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote)

5410611

Unavailable

KIT,IGN. SWITCH (Incl. 17)

2200357

Unavailable

NUT, IGN.SWITCH(10)

7543101

Unavailable

Nut

7080229

$19.99

WASHER-LOCK(10)

7571610

$3.99

RIVET,(50)

7621477

$1.19

GUIDE, RECOIL

5431385

$10.51

BRKT,ROPE GUIDE,BLK. NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A, B, C, D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot c

5222682-067

Unavailable
